CHAPTER 4 - OPERATION
4.1 Programming Keypads
4.1.1 LCD Keypad
LCD keypad can display up to 32 alphanumeric characters, and various settings can be checked directly from

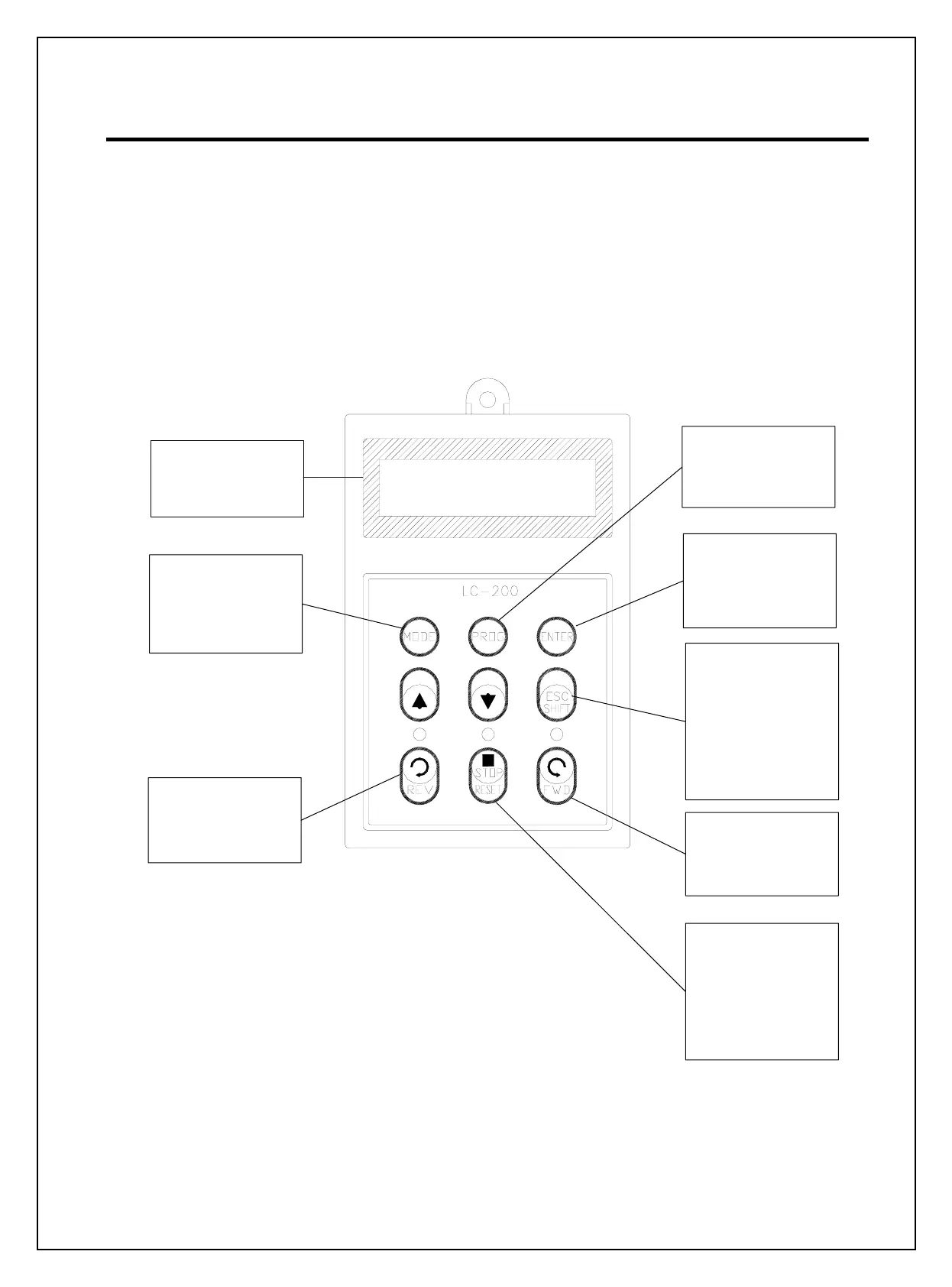

the display. The following is an illustration of the keypad.
32 character, background
light, LCD display. The
background tone is
adjustab
l
e
.
The Mode Button moves
you through the seven
program groups:
DRV [Mode] 
FUN1 [ENT]DRV
The Program Button is
used to go into
programming mode to
change data.
The Enter Button is used
to enter changed data
within a parameter.
DRV [ENT] APP
[
M
O
DE
]
 DRV
[SHIFT] This button is
used to move cursor
across display in
programming mode.
[ESC] This button is used
to move the program
code to DRV 00 form any
program code.
Reverse Run Button
The Reverse Run LED
blinks when the drive
Accels or Decels.
Forward Run Button
The Forward Run LED
blinks when the drive
Accels or Decels.
Stop Button is used to
stop the drive from
running.
Reset Button is used to
reset Faults.
LED blinks when there is
a fault.
