Chapter 4 - Operation
4-9
Operation
Example (2)
Analog Voltage Input (V1) + Operation via Terminal (FX/RX)
[Operation condition]
-. Control mode: V/F control
-. Reference Frequency: 50[Hz] analog input via V1 (Potentiometer)
-. Accel/Decel time: Accel – 10 [sec], Decel – 20 [sec]
-. Drive mode: Run/Stop via FX/RX terminal, Control terminal: NPN mode

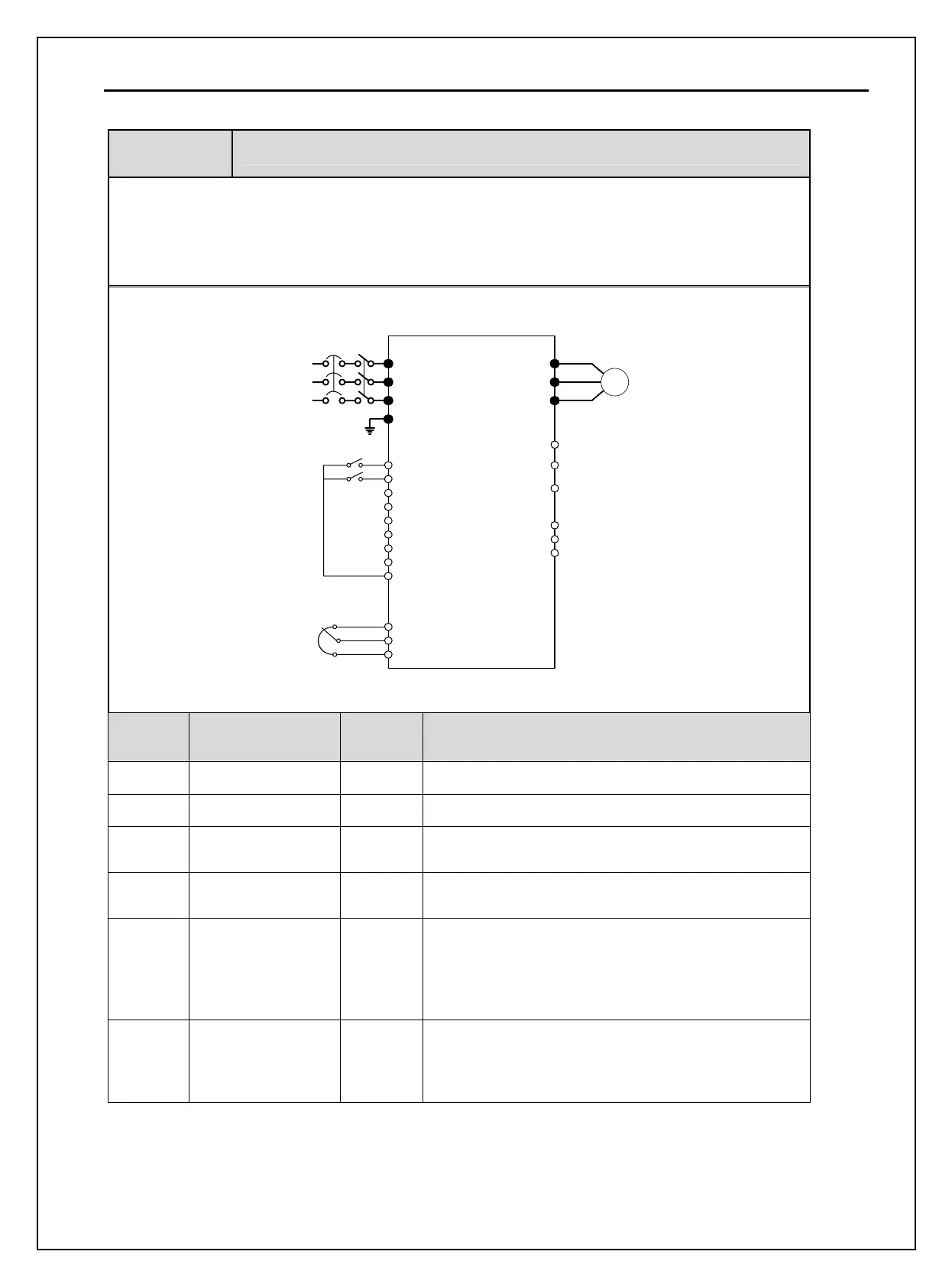

[Wiring]
R(L1)
S(L2)
T(L3)
G
U
V
W
M8(RX)
M7(FX)
M6
M5
M4
M3
M2
M1
CM
V+
V1
5G
S1
5G
3A
3C
3B
IM
3P
AC
INPUT
Potentiometer
2[kohm],1/2W
S/W
S0
Step Parameter setting Code Description
1 Drive Mode DRV-3 Set it to 1 Fx/Rx-1.
2 Frequency Mode DRV-4 Set it to 2 V1 Analog input.
3
50[Hz] freq
command setting
DRV-0 Set freq command 50[Hz] via V1 (potentiometer).
4 Accel/Decel time
DRV-1
DRV-2
Set Accel time to 10 [sec] in DRV-1.
Set Decel time to 20 [sec] in DRV-2.
5 Terminal FX (M7) I/O-26
Motor starts to rotate in Forward direction at 50Hz
with Accel time 10 [sec] when FX terminal is turned
ON.
Motor decelerates to stop with Decel time 20[sec]
when FX terminal is turned OFF.
6 Terminal RX (M8) I/O-27
When RX terminal is turned ON motor starts to rotate
in Reverse direction at 50[Hz] with Accel time 10
[sec]. When it is OFF, motor decelerates to stop with
Decel time 20 [sec].
