Chapter 6 - Parameter Description [DRV]
6-8

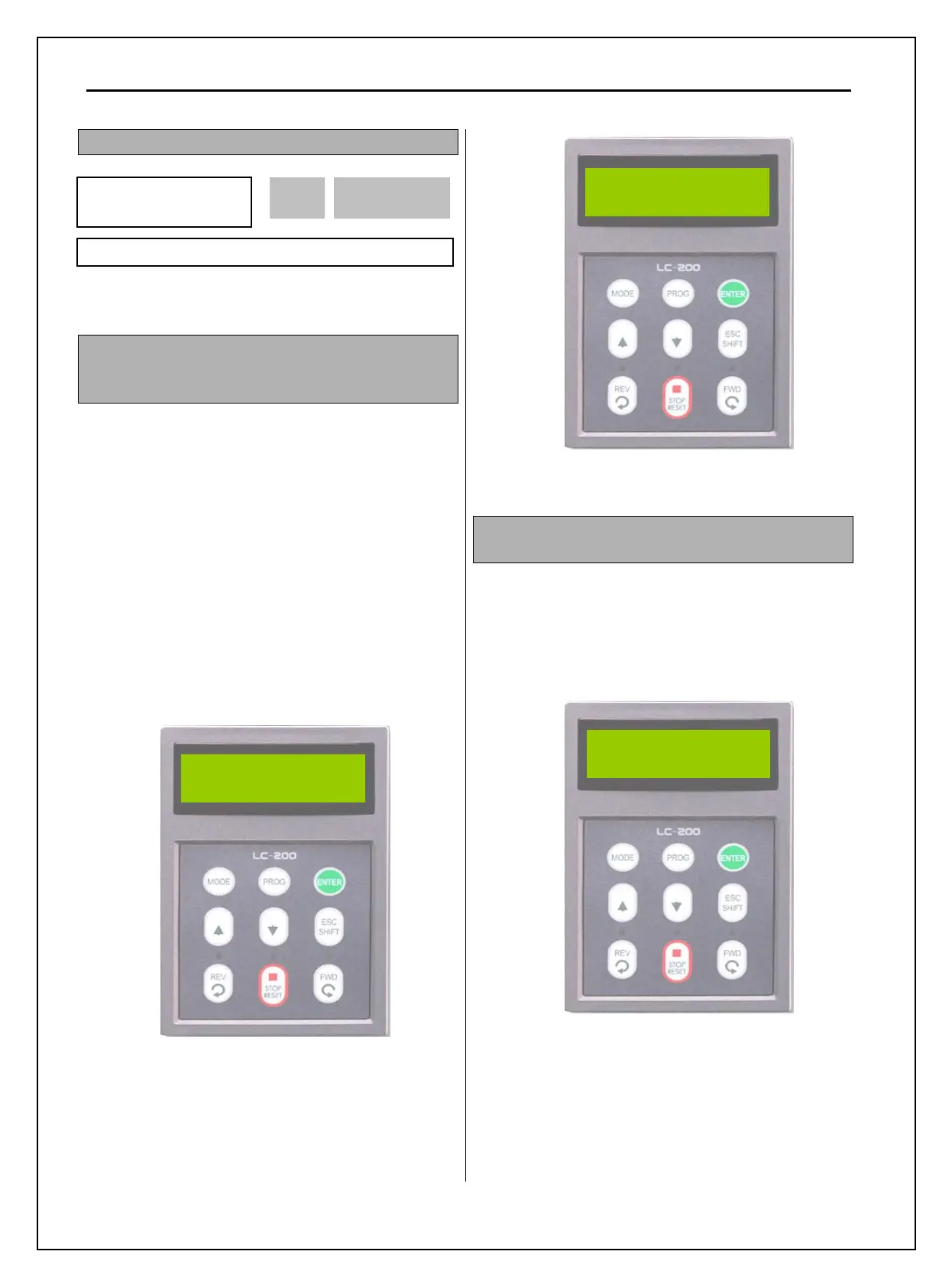

DRV-16: Hz/Rpm Display
Set this parameter to 0 [Hz] to display frequency, or
to 1[Rpm] to display speed.
DRV-18: PID Parameter (To monitor PID
controller’s Reference/Feedback value and
Inverter’s Command/output frequency)
Displays PID controller’s reference/feedback value
and inverter’s command/output frequency. When
APP-02 [PID operation selection] is set to “YES,”
reference and feedback values are displayed in Hz.
When APP-02 [PID operation selection] is set to
“YES,” and APP-06 [PID feedback selection] is set
(one of the I, V1, Pulse) and the desired unit is set in
I/O-86 [V1 Unit Sel], I/O-87 [I Unit Sel], I/O-88
[PulseUnitSel] according to the selection in APP-06,
PID reference and feedback value as well as Inverter
command and output frequency will be displayed by
percent [%] unit.
DRV-19: AD Parameter (To monitor the AD
conversion value of Analog input)
AD value of the Analog input used for Freq mode,
PID or Ext. PID reference/feedback can be monitored
in DRV-19.
Ex) When using V1 and I
DRV ► Hz/Rpm Disp
16 0 Hz
0 16
Factory Default: 0 Hz 0
R 50.00%T 45.3Hz
F 8.24% DRV 18
R 50.00%T 45.3Hz
F 8.24%O 43.7Hz
V1 274 V2 0
V1S 0 I 103
