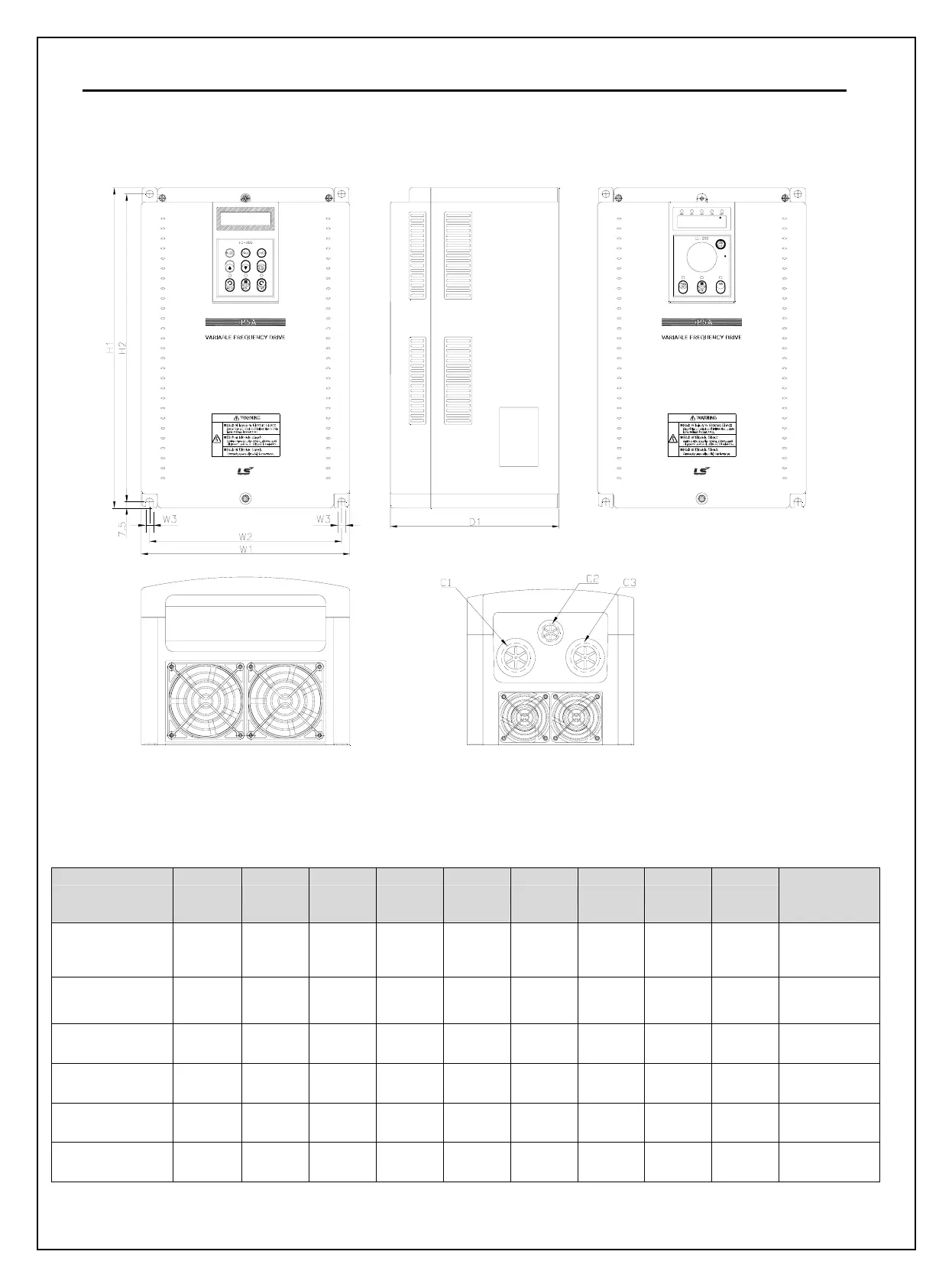

Chapter 2 - Specification
2-6
2) SV075~300iP5A (200/400V Class)
<SV150~300
iP5A-2/4>
<SV075~110iP5A-2/4>
m
m
(
i
n
c
h
e
s
)
Model
W1
W2
W3
H1
H2
D1
C1
C2
C3
Enclosure
Type
SV075iP5A-2/4
200
(7.87)
180
(7.09)
6
(0.23)
284
(11.18)
269
(10.69)
182
(7.16)
35
(1.37)
24
(0.98)
35
(1.37)
IP20
UL Type 1
SV110iP5A-2/4
200
(7.87)
180
(7.09)
6
(0.23)
284
(11.18)
269
(10.69)
182
(7.16)
35
(1.37)
24
(0.98)
35
(1.37)
IP20
UL Type 1
SV150iP5A-2/4
250
(9.84)
230
(9.06)
9
(0.35)
385
(15.16)
370
(14.57)
201
(7.91)
- - -
IP00
UL Open
SV185iP5A-2/4
250
(9.84)
230
(9.06)
9
(0.35)
385
(15.16)
370
(14.57)
201
(7.91)
- - -
IP00
UL Open
SV220iP5A-2/4
304
(11.97)
284
(11.18)
9
(0.35)
460
(18.11)
445
(17.52)
234
(9.21)
- - -
IP00
UL Open
SV300iP5A-2/4
304
(11.97)
284
(11.18)
9
(0.35)
460
(18.11)
445
(17.52)
234
(9.21)
- - -
IP00
UL Open
