LSIS sv-ip5a User Manual

Chapter 2 - Specification
2-7

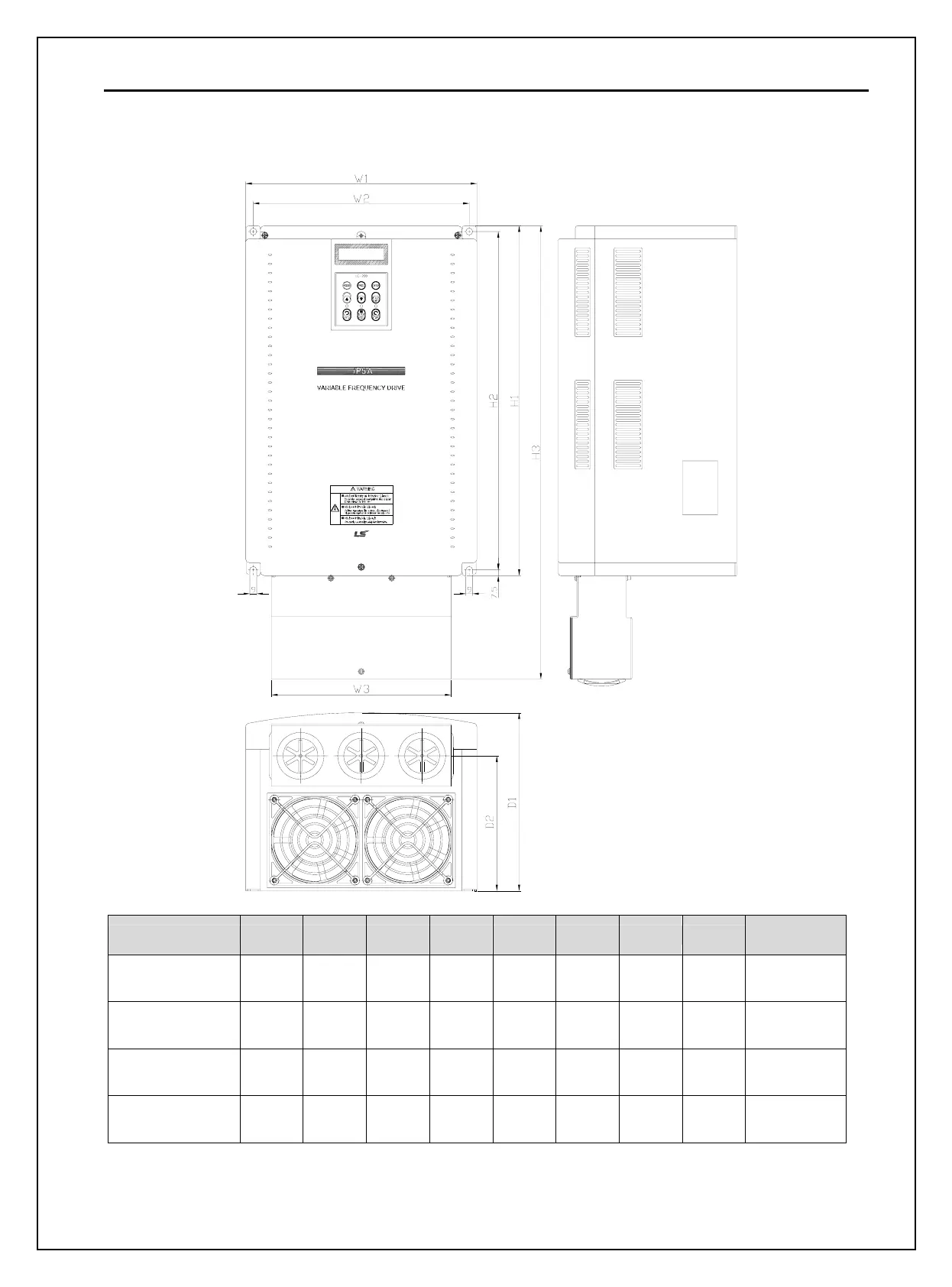

3) SV150~300iP5A (UL Type 1 or UL Open Type with Conduit Option used, 200V/400V Class)
mm (inches)
Model W1 W2 W3 H1 H2 H3 D1 D2
Enclosure
Type
SV150iP5A-2/4
250
(9.84)
230
(9.06)
200.8
(7.9)
385
(15.16)
370
(14.57)
454.2
(17.88)
201
(7.91)
146
(5.74)
IP20
UL Type 1
SV185iP5A-2/4
250
(9.84)
230
(9.06)
200.8
(7.9)
385
(15.16)
370
(14.57)
454.2
(17.88)
201
(7.91)
146
(5.74)
IP20
UL Type 1
SV220iP5A-2/4
304
(11.97)
284
(11.18)
236
(9.29)
460
(18.11)
445
(17.52)
599.2
(23.59)
234
(9.21)
177.5
(6.98)
IP20
UL Type 1
SV300iP5A-2/4
304
(11.97)
284
(11.18)
236
(9.29)
460
(18.11)
445
(17.52)
599.2
(23.59)
234
(9.21)
177.5
(6.98)
IP20
UL Type 1
Note) Mounting NEMA 1 conduit option to the 15~90Kw(20~125HP) Open Type meets NEMA 1 but does not
comply with UL Enclosed Type 1. To that end, please purchase UL Type 1 product.
