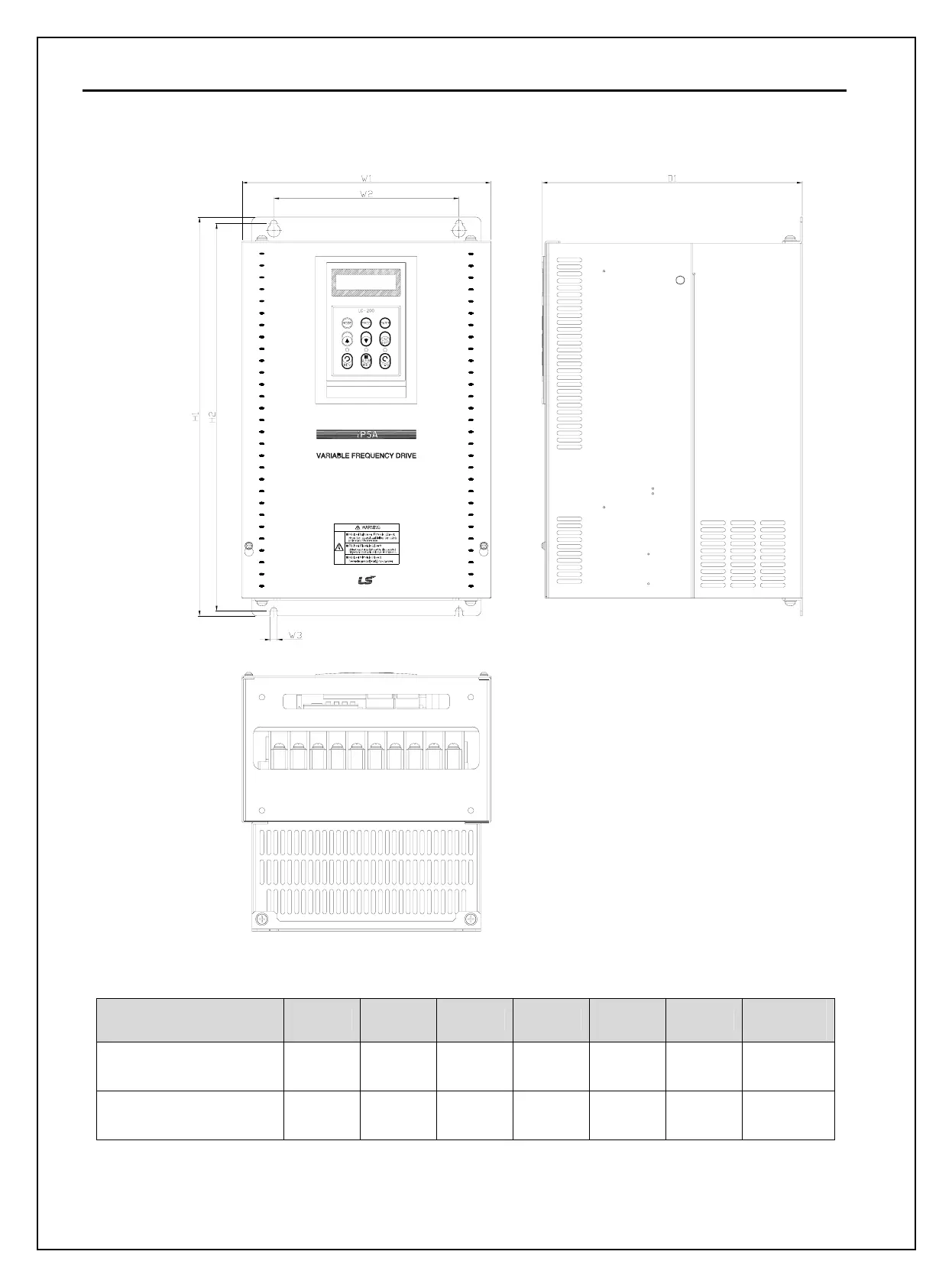

Chapter 2 - Specification
2-8
4)
SV150 ~ SV300 iP5A (400V Class) – Built-in DCL Type
mm (inches)
Model
W1
W2
W3
H1
H2
D1
Enclosure
Type
SV150, 185iP5A-4L
(Built-in DCL Type)
250
(9.84)
186
(7.32)
7
(0.28)
403.5
(15.88)
392
(15.43)
261.2
(10.28)
IP00
UL Type 1
SV220, 300iP5A-4L
(Built-in DCL Type)
260
(10.23)
220
(8.66)
7
(0.28)
480
(18.89)
468.5
(18.44)
268.6
(10.57)
IP20
UL Type 1
16
18
