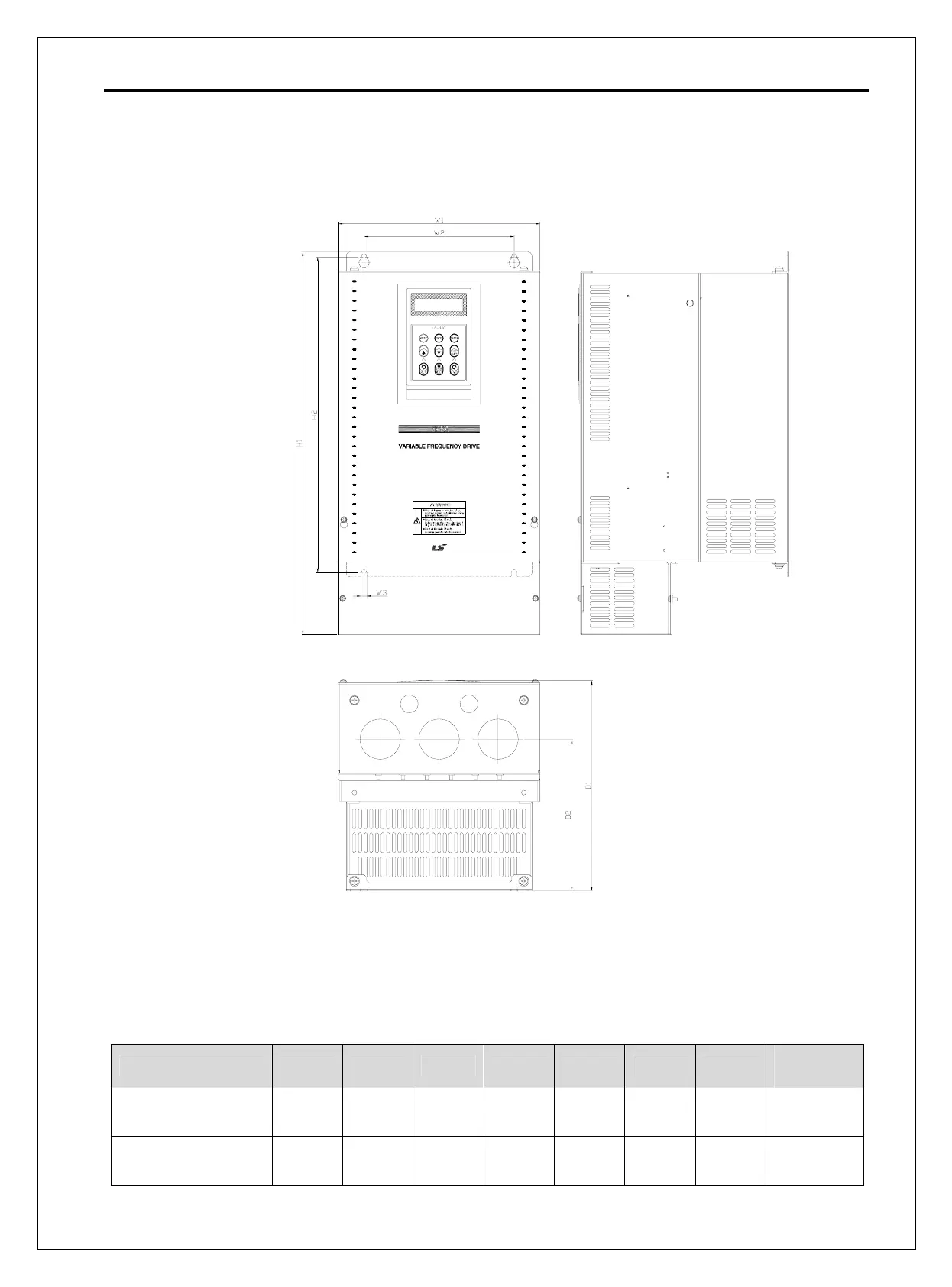

Chapter 2 - Specification
2-9
5)
SV150 ~ SV300 iP5A (Built-in DCL Type,
UL Type 1 or UL Open Type with Conduit Option
used, 400V Class)
mm (inches)
Model
W1
W2
W3
H1
H2
D1
D2
Enclosure
Type
SV150, 185iP5A-4L
(Built-in DCL Type)
250
(9.84)
186
(7.32)
7
(0.28)
475.5
(18.72)
392
(15.43)
261.2
(10.28)
188.4
(7.42)
IP20
UL Type 1
SV220, 300iP5A-4L
(Built-in DCL Type)
260
(10.23)
220
(8.66)
7
(0.28)
552
(21.73)
468.5
(18.44)
268.6
(10.57)
188.8
(7.43)
IP20
UL Type 1
17
19
