Chapter 2 - Specification
2-10

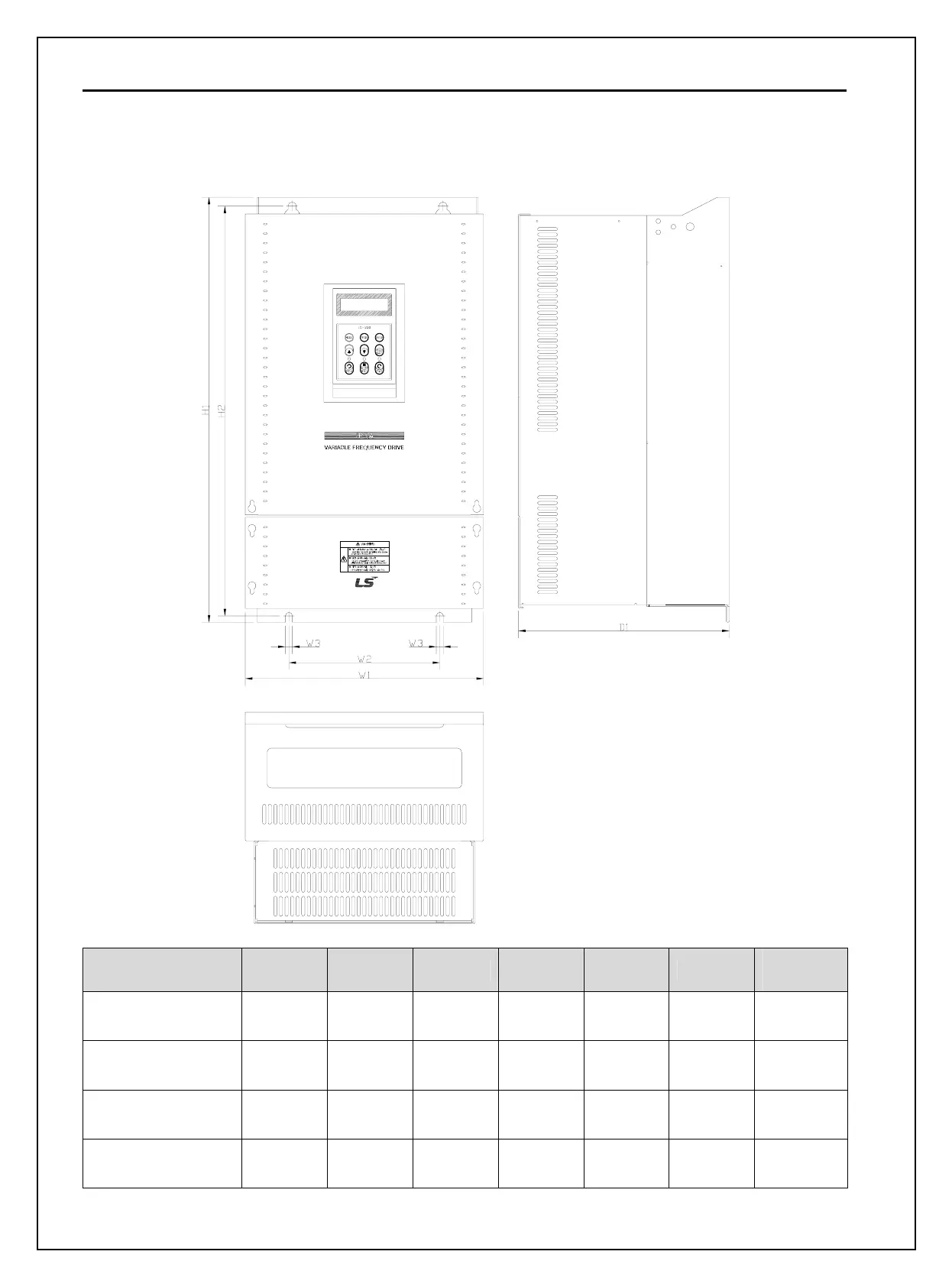

6) SV370 ~ SV550iP5A (400V Class)
mm (inches)
Model
W1
W2
W3
H1
H2
D1
Enclosure
Type
SV370, 450iP5A-4
300
(11.81)
190
(7.48)
9
(0.35)
534
(21.02)
515
(20.28)
265.6
(10.46)
IP00
UL Open
SV550iP5A-4
300
(11.81)
190
(7.48)
9
(0.35)
534
(21.02)
515
(20.28)
292.6
(11.52)
IP00
UL Open
SV370, 450iP5A-4L
(Built-in DCL Type)
300
(11.81)
190
(7.48)
9
(0.35)
684
(26.92)
665
(26.18)
265.6
(10.46)
IP00
UL Open
SV550iP5A-4L
(Built-in DCL Type)
300
(11.81)
190
(7.48)
9
(0.35)
684
(26.92)
665
(26.18)
292.6
(11.52)
IP00
UL Open
