LSIS sv-ip5a User Manual

Chapter 2 - Specification
2-11

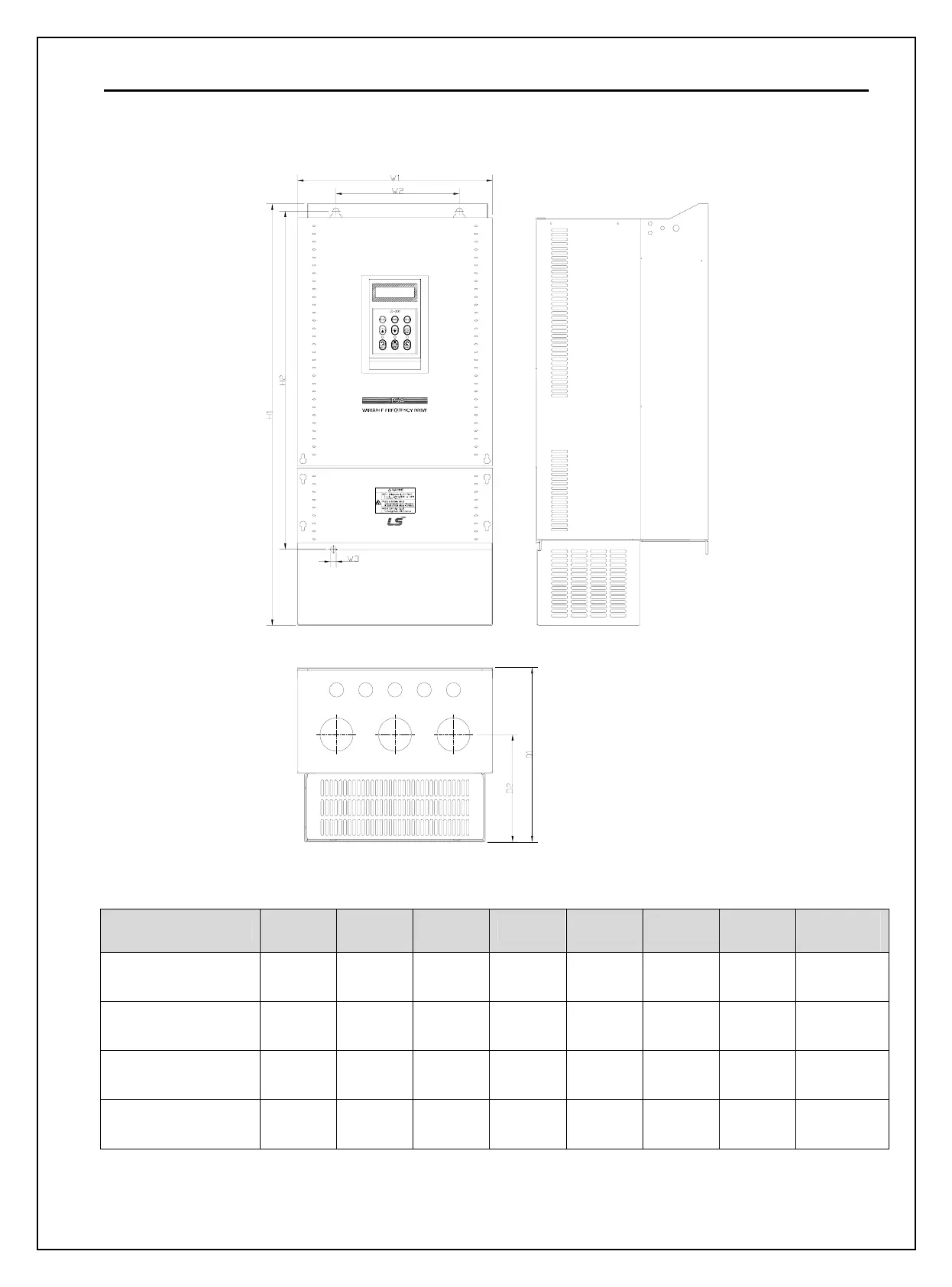

7) SV370~550iP5A (UL Type 1 or UL Open Type with Conduit Option Used, 400V Class)
mm (inches)
Model W1 W2 W3 H1 H2 D1 D2
Enclosure
Type
SV370, 450iP5A-4
300
(11.81)
190
(7.48)
9
(0.35)
642
(25.28)
515
(20.28)
265.6
(10.46)
163.4
(6.43)
IP20
UL Type 1
SV550iP5A-4
300
(11.81)
190
(7.48)
9
(0.35)
642
(25.28)
515
(20.28)
292.6
(11.52)
190.4
(7.5)
IP20
UL Type 1
SV370, 450iP5A-4L
(Built-in DCL Type)
300
(11.81)
190
(7.48)
9
(0.35)
792
(31.18)
665
(26.18)
265.6
(10.46)
163.4
(6.43)
IP20
UL Type 1
SV550iP5A-4L
(Built-in DCL Type)
300
(11.81)
190
(7.48)
9
(0.35)
792
(31.18)
665
(26.18)
292.6
(11.52)
190.4
(7.5)
IP20
UL Type 1
Note) Mounting NEMA 1 conduit option to the 15~90Kw(20~125HP) Open Type meets NEMA 1 but does not
comply with UL Enclosed Type 1. To that end, please purchase UL Type 1 product.
