Chapter 2 - Specification
2-12

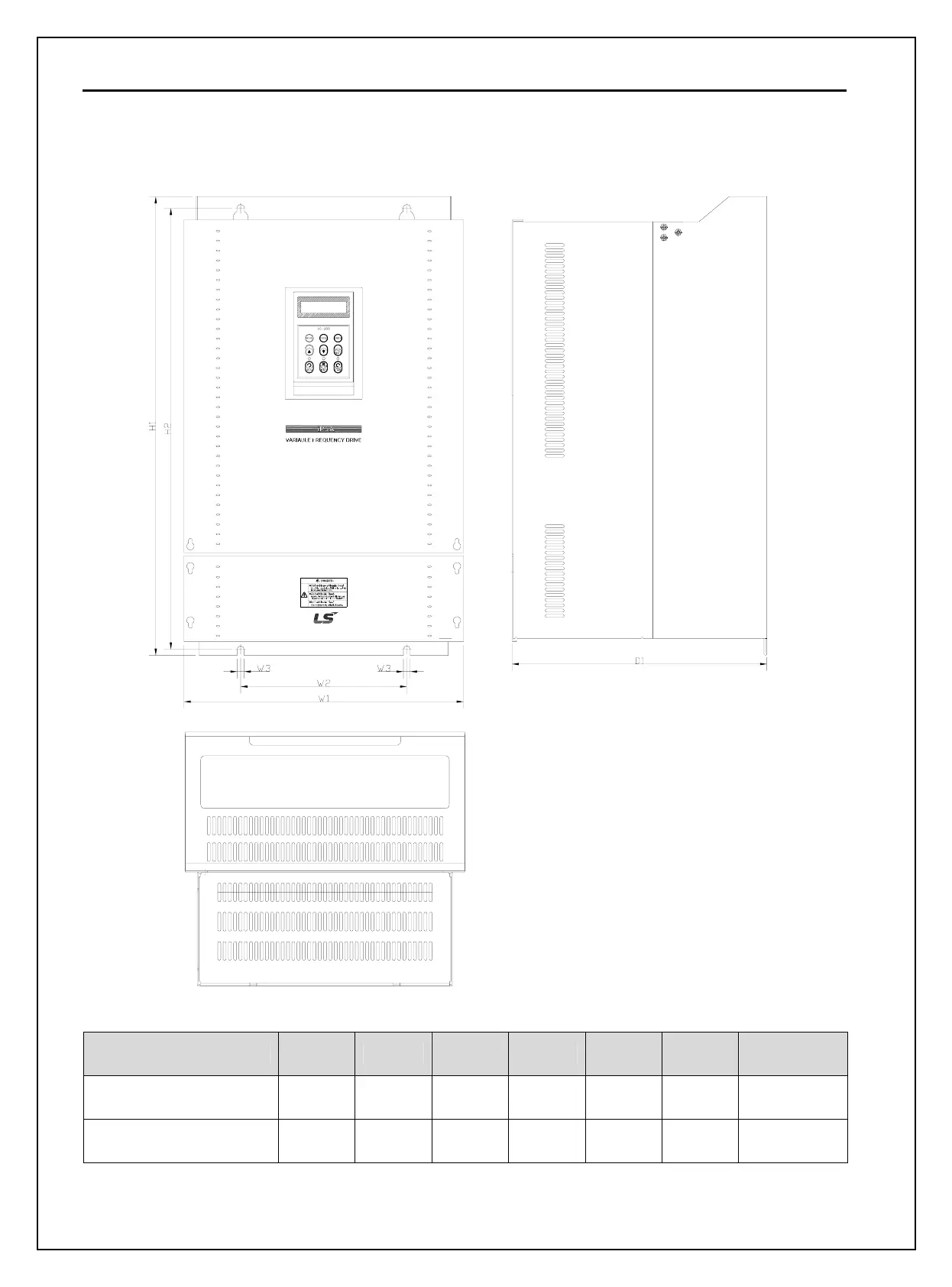

8) SV750, 900iP5A (400V Class)
mm (inches)
Model
W1
W2
W3
H1
H2
D1
Enclosure
Type
SV750, 900iP5A-4
370
(14.57)
220
(8.66)
9
(0.35)
610
(24.02)
586.5
(23.09)
337.6
(13.29)
IP00
UL Open
SV750, 900iP5A-4L
(Built-in DCL Type)
370
(14.57)
220
(8.66)
9
(0.35)
760
(29.92)
736.6
(28.99)
337.6
(13.29)
IP00
UL Open
