Chapter 2 - Specification
2-13

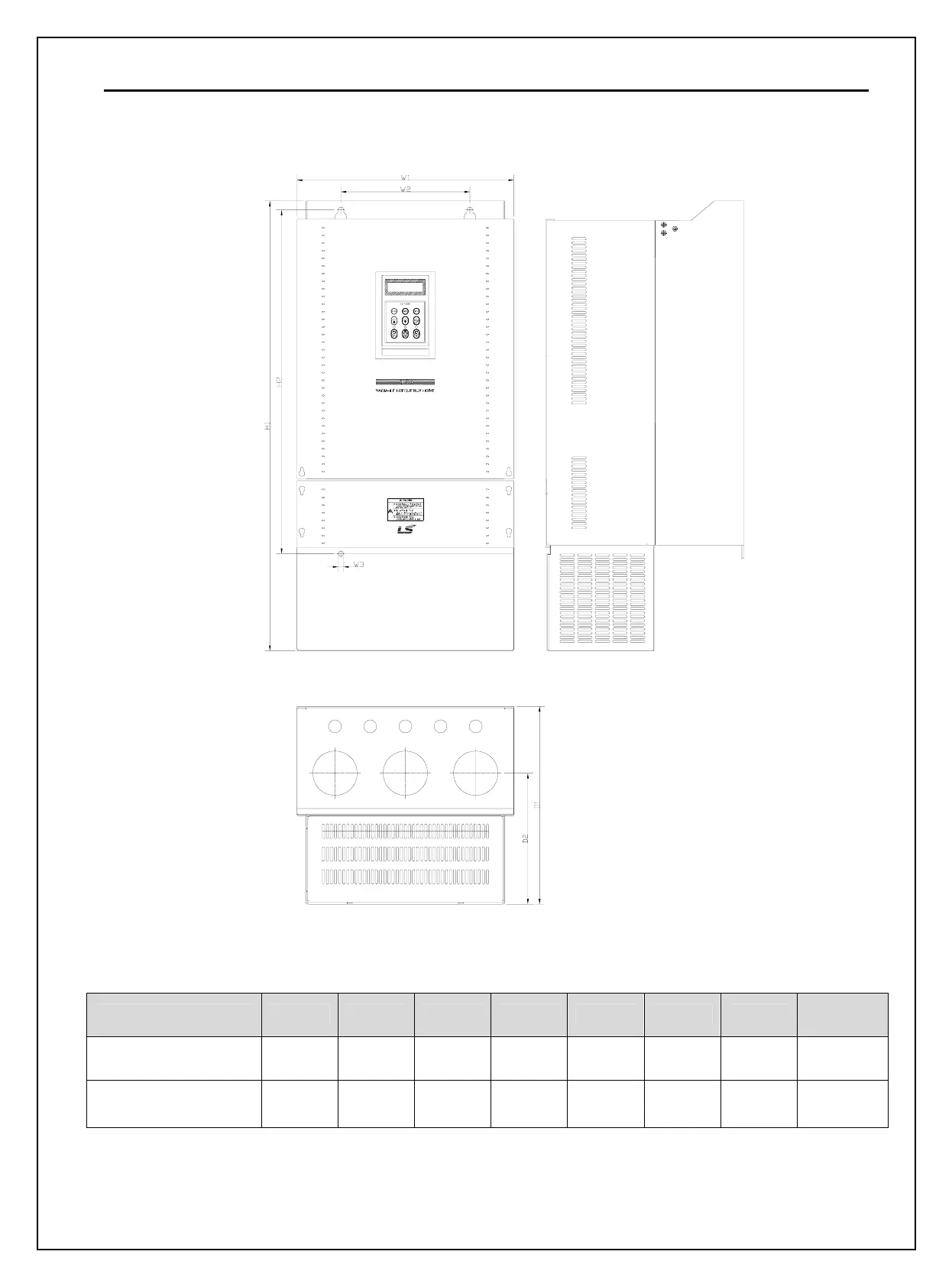

9) SV750, 900iP5A (UL Type 1 or UL Open Type with Conduit Option used, 400V Class)
mm (inches)
Model W1 W2 W3 H1 H2 D1 D2
Enclosure
Type
SV750,900iP5A-4
370
(14.57)
220
(8.66)
9
(0.35)
767.5
(30.22)
586.5
(23.09)
337.6
(13.29)
223.4
(8.8)
IP20
UL Type 1
SV750, 900iP5A-4L
(Built-in DCL Type)
370
(14.57)
220
(8.66)
9
(0.35)
917.5
(36.12)
736.5
(28.99)
337.6
(13.29)
223.4
(8.8)
IP20
UL Type 1
Note) Mounting NEMA 1 conduit option to the 15~90Kw(20~125HP) Open Type meets NEMA 1 but does not
comply with UL Enclosed Type 1. To that end, please purchase UL Type 1 product.
