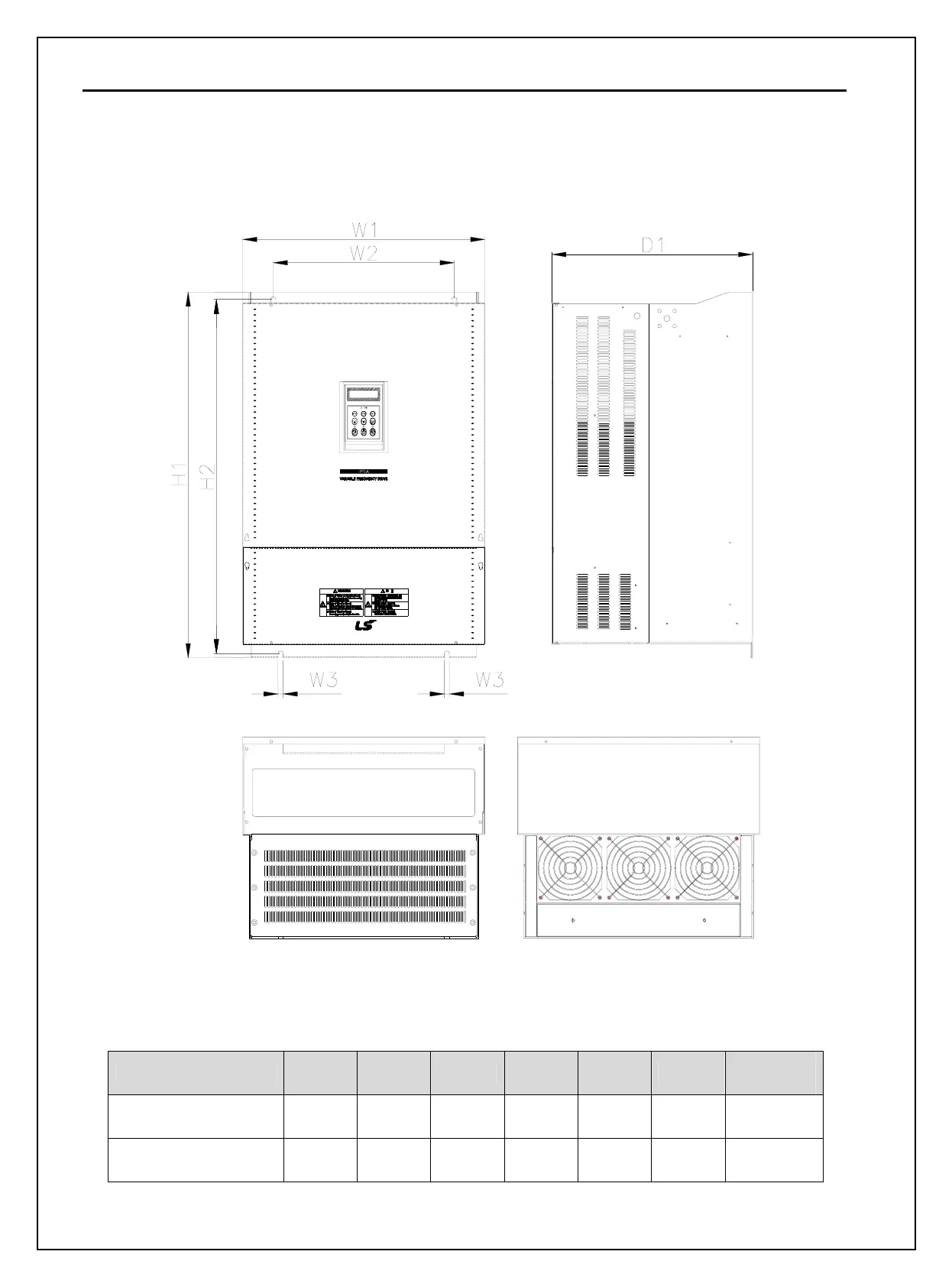

Chapter 2 - Specification
2-14
10) SV1100, 1600iP5A (400V Class)
mm(inches)
Model
W1
W2
W3
H1
H2
D1
Enclosure
Type
SV1100, 1320iP5A-4L
510
(20.08)
381
(15.00)
11
(0.43)
768.5
(30.26)
744
(29.29)
422.6
(16.64)
IP00
UL Open
SV1600iP5A-4L
510
(20.08)
381
(15.00)
11
(0.43)
844
(33.23)
819.5
(32.26)
422.6
(16.64)
IP00
UL Open
