Chapter 6 - Parameter Description [APP]
6-75
Analog Input (V1, I, or Pulse) and perform terminal wiring for analog input. To give the digital reference, set
APP-81 [Ext. Ref Sel] to “Keypad” and set proper value in APP-82 [Ext. Ref Perc]. Set the Ext. PID Feedback
among V1, I, Pulse in APP-83 and perform terminal wiring for analog input. External PID Ref. and feedback are
connected to PID controller. When Ext.PID Run signal is ON to the defined terminal in I/O-20~27, it starts its
output. S0/S1 terminal can be used to connect to other system.

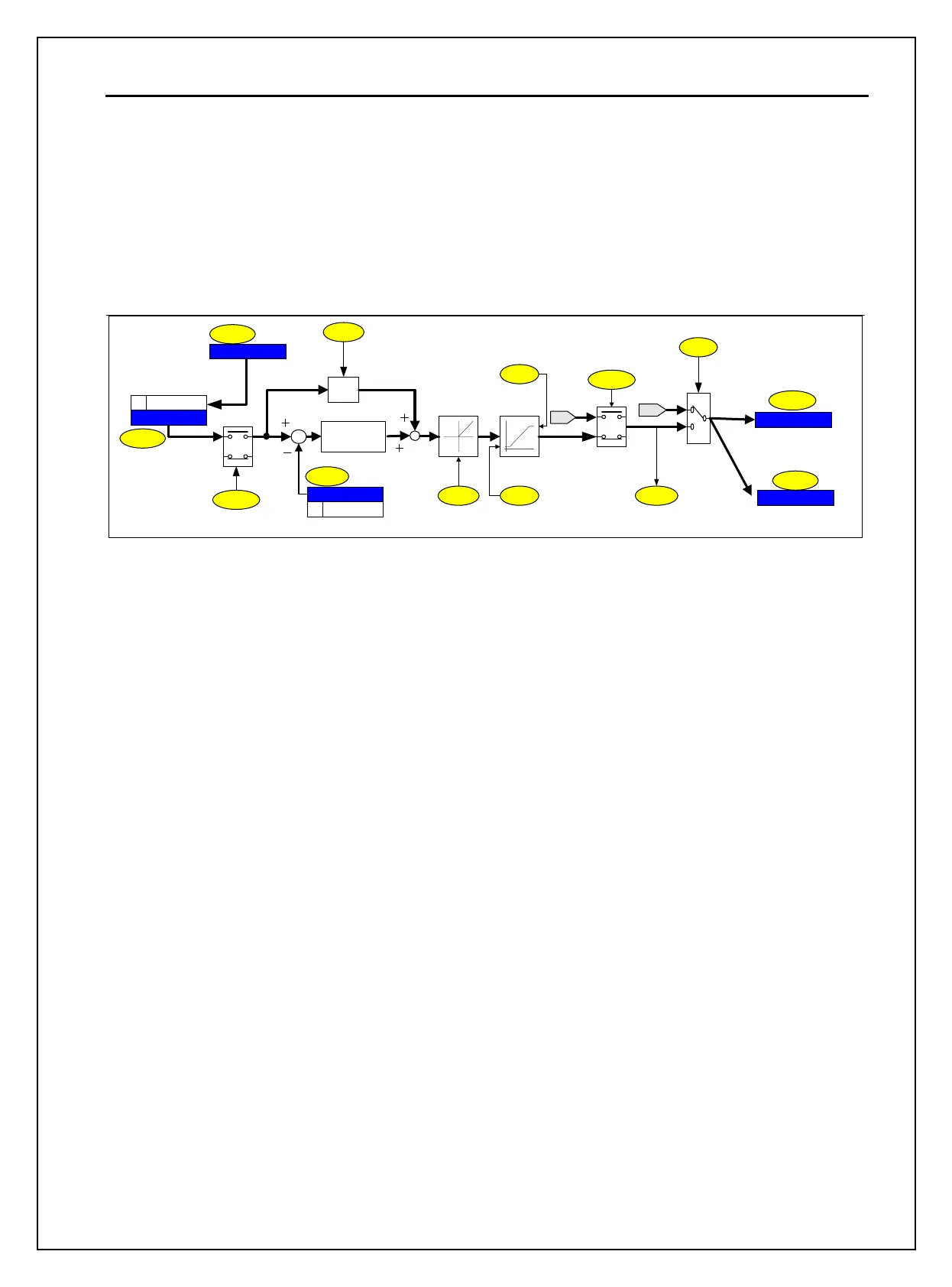

[Dual PID block diagram for case ③]
Ext.PID Parameter
DRV-20
APP-
80
Ext. PI mode
Ext.PID
K
f
Limit
APP-88
Ext. PID
High LImit Freq.
proc PI dis
APP-90
Gain
APP-89
Ext. PID
Low Limit Freq.
I/O-20~27
Multi-function Input
Terminal Setting
(M1~M8)
Ext. PID
Output Gain
Ext. PID F Gain:
Feed Foward
Ext. PID Ref Setting
Zero
APP-93
APP-81
I/O-20~27
Multi-function Input
Terminal Setting
(M1
~
M8)
APP-83
Ext. PID Run
Zer
o
APP-82
Ext. Ref Perc
S0, S1 Mode
I/O-70,-
72
Analog Meter Output
Setting
Ext. Fbk Sel
V11
Keypad3
Ext. Ref Sel
DRV-04
Freq Mode
Inverter Reference Freq.
setting (Main Speed Ref.)
ExtPID output can be used for inverter target frequency. To activate this function, set analog input (V1, I, Pulse)
as a reference value to other system or set APP-81 [Ext. Ref Sel] to “Keypad” and set proper value in APP-82
[Ext. Ref Perc]. Set APP-83 [Ext. Fbk Sel] to Analog input (I, V1, Pulse) and conduct wiring. And set DRV-04
[Freq Mode] to “Ext. PID”, then ExtPID output functions as Inverter main speed reference (target frequency).
When Ext.PID Run signal is ON in the defined terminal in I/O-20~27, it starts its output and inverter performs
Accel/Decel with output frequency. Other system can be connected via S0/S1 terminal.
