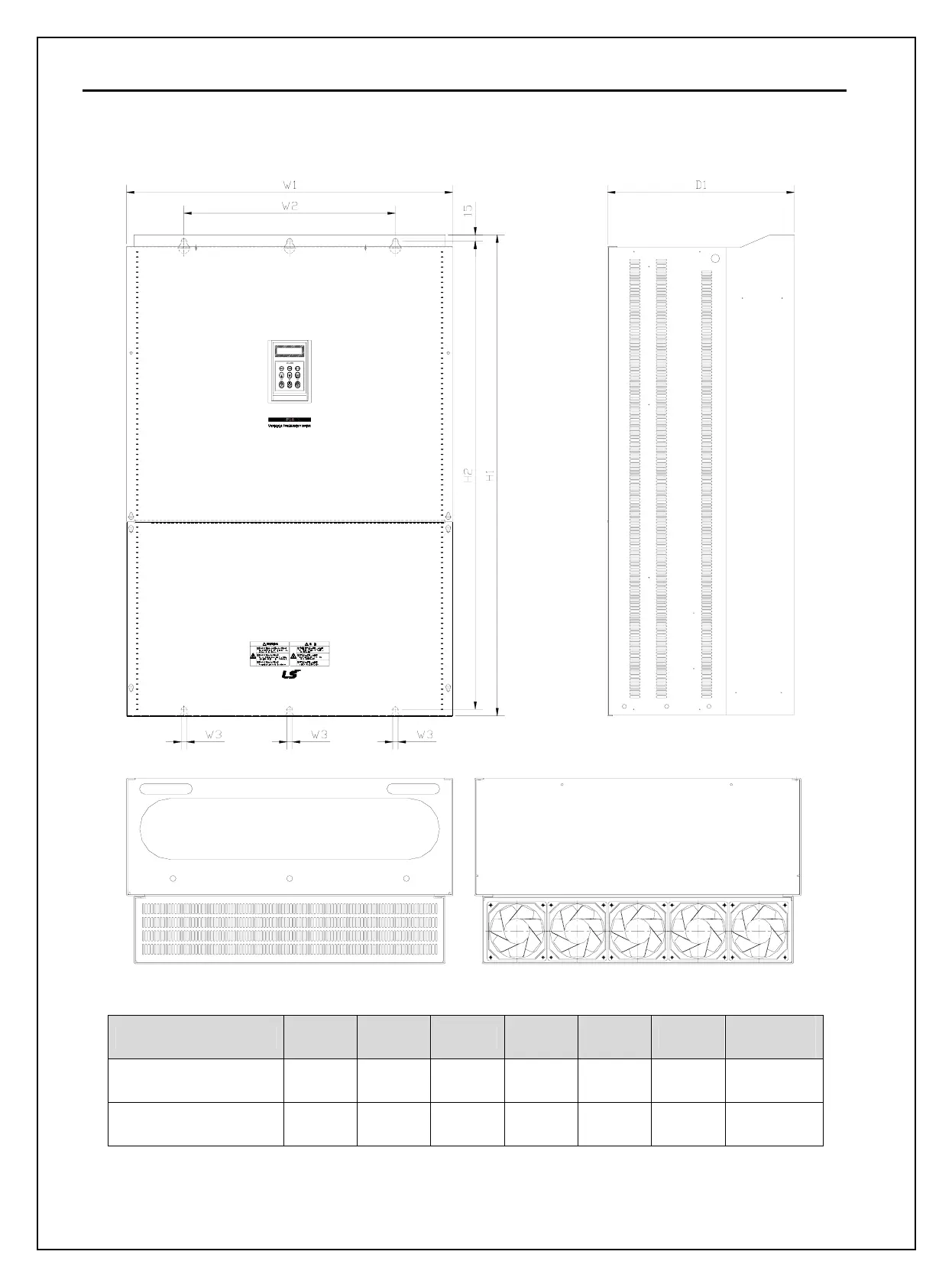

Chapter 2 - Specification
2-16
12) SV3150, 4500iP5A (400V Class)
mm(inches)
Model
W1
W2
W3
H1
H2
D1
Enclosure
Type
SV3150,Ip5A-4L
772
(30.39)
500
(19.69)
13
(0.51)
1140.5
(44.90)
1110
(43.70)
442
(17.40)
IP00
UL Open
SV3750, 4500iP5A-4L
922
(36.30)
580
(22.83)
14
(0.55)
1302.5
(51.28)
1271.5
(50.06)
495
(19.49)
IP00
UL Open
