(2) Graph of Overload during Stop
Load (%)
AL-21
Occurrin
g Time
(sec)
MAX MIN
Load
(%)
AL-21
Occurri
ng Time
(sec)
MAX MIN
100% or
below
Infinite
110
37937.7 60700.3 22762.62
210
50.1 80.2 30.06
120
9483.9 15174.2 5690.34
220
38.5 61.6 23.1
130
4215.1 6744.2 2529.06
230
30.3 48.5 18.18
140
2371.0 3793.6 1422.6
240
9.7 15.5 5.82
150
926.0 1481.6 555.6
250
8.3 13.3 4.98
160
470.0 752.0 282
260
3.8 6.1 2.28
170
273.0 436.8 163.8
270
3.4 5.4 2.04
180
173.0 276.8 103.8
280
3.1 5.0 1.86
190
117.0 187.2 70.2
290
2.7 4.3 1.62
200
66.0 105.6 39.6
300
2.5 4.0 1.5

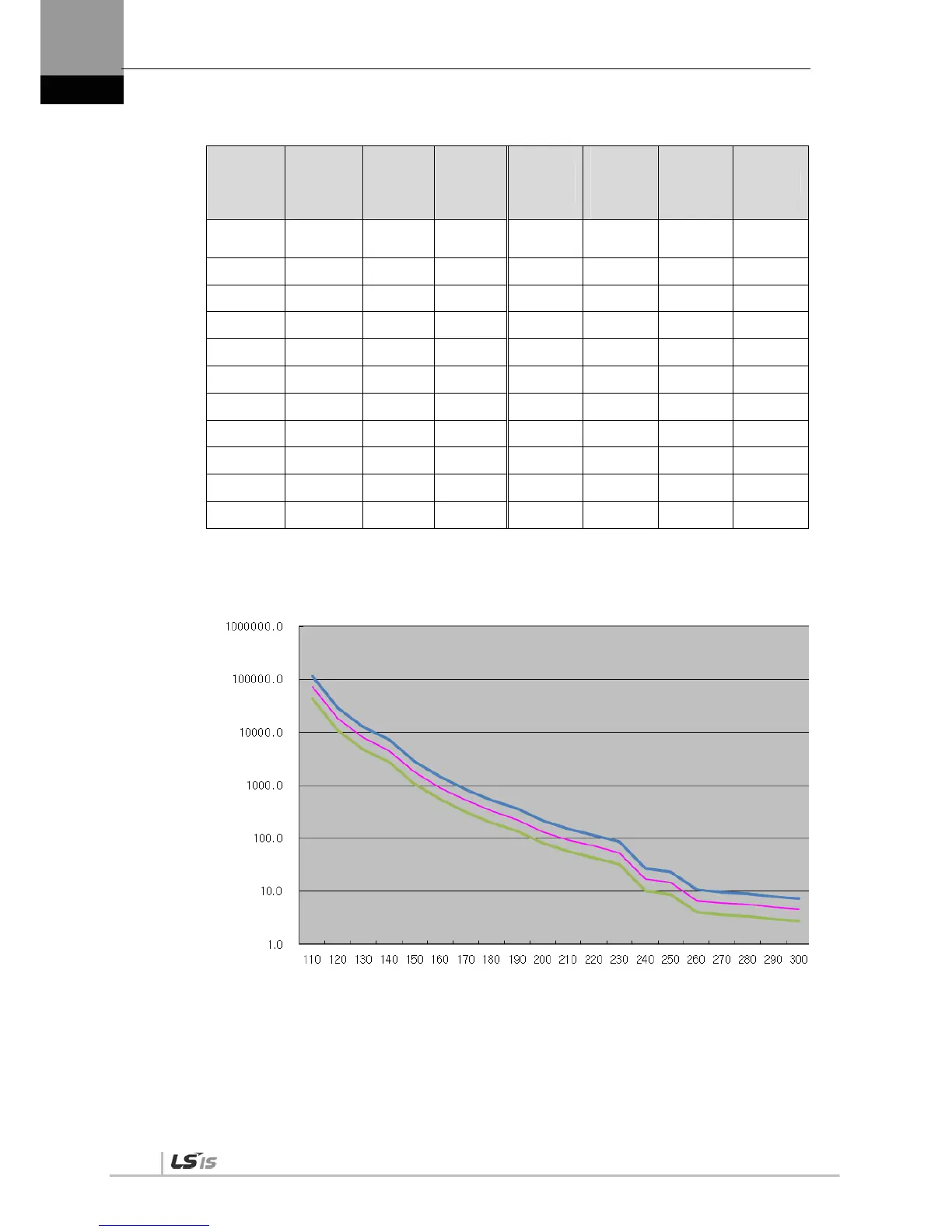

Load Curve during Stop
Load Factor (%)
Time (sec)
