(2) Graph of Overload during Stop
Load(%)
AL-21
Occurring
Time (sec)
MAX MIN Load(%)
AL-21
Occurring
Time
(sec)
MAX MIN
100% or
below
Infinite
110
4832.0 7731.2 2899.2
210 44.0 70.4 26.4
120
1208.0 1932.8 724.8
220 36.0 57.6 21.6
130
536.9 859.0 322.1333
230 30.3 48.5 18.18
140
302.0 483.2 181.2
240 9.7 15.5 5.82
150 154.0 246.4 92.4 250 8.3 13.3 4.98
160 110.0 176.0 66 260 3.8 6.1 2.28
170 90.0 144.0 54 270 3.4 5.4 2.04
180 75.0 120.0 45 280 3.1 5.0 1.86
190 61.0 97.6 36.6 290 2.7 4.3 1.62
200 52.0 83.2 31.2 300 2.5 4.0 1.5
Load(%)
AL-21
Occurring
Time (sec)
MAX MIN Load(%)
AL-21
Occurring
Time (sec)
MAX MIN

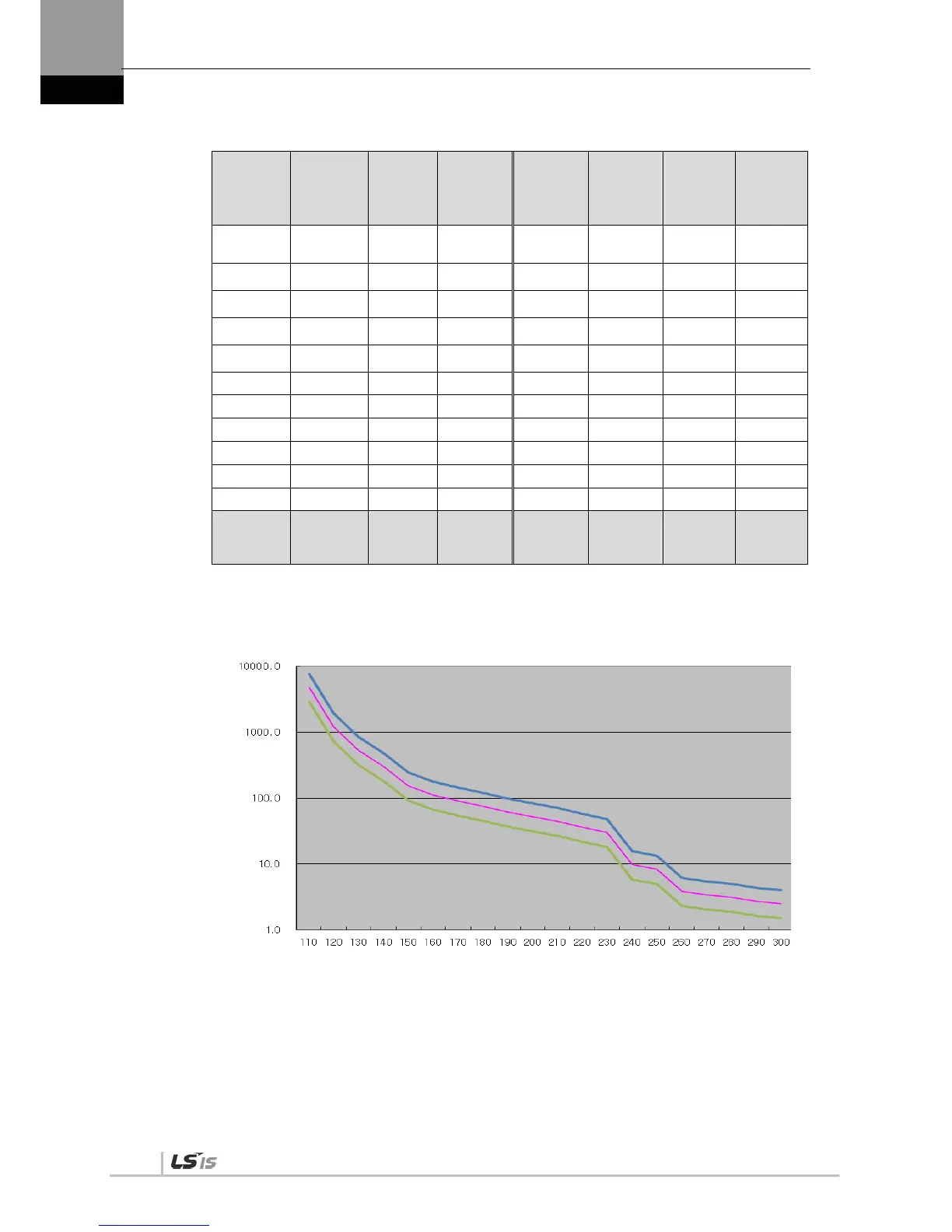

Load Curve During Stop
Load Factor (%)
Time (sec)
