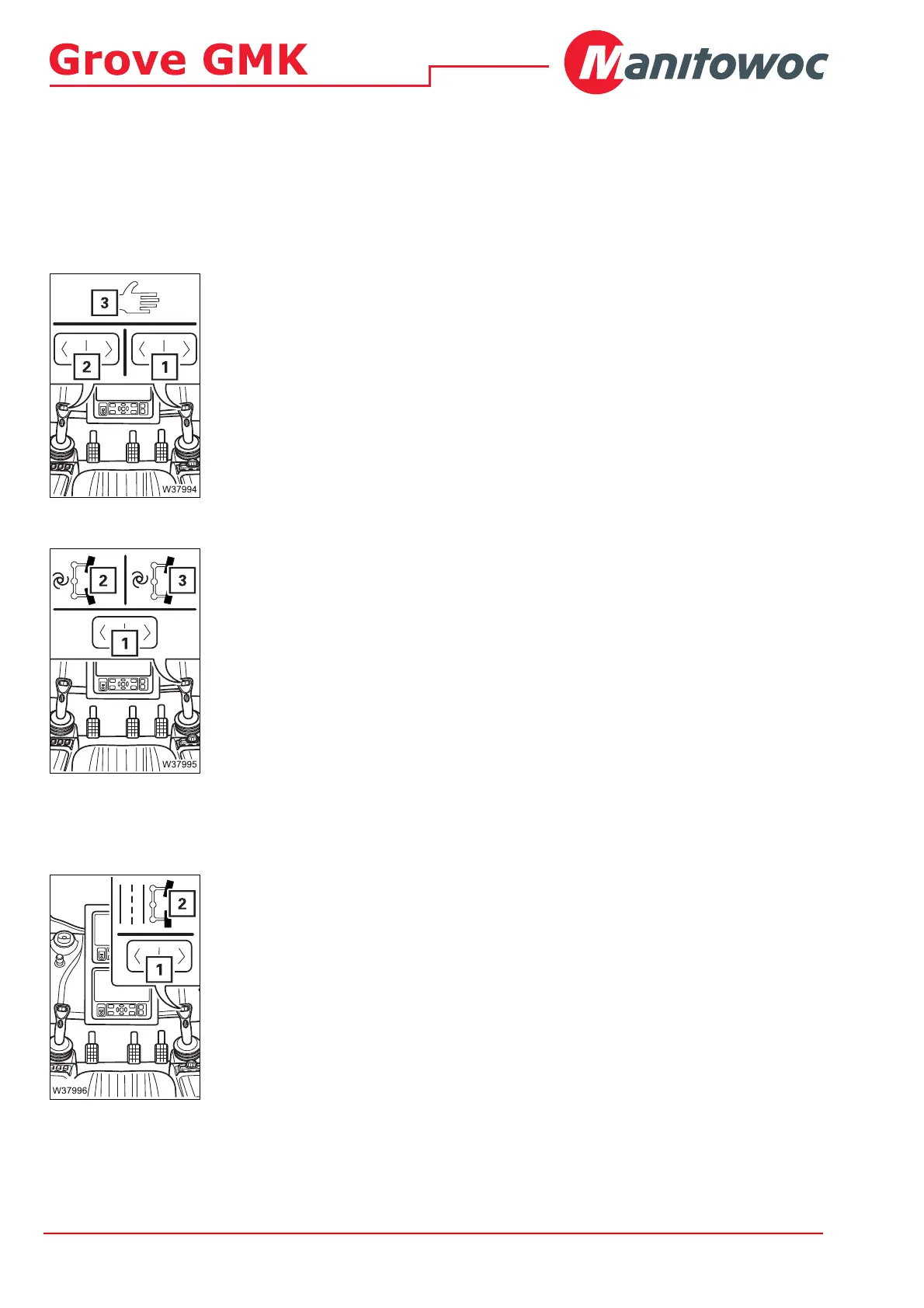

The information in this section is based on the steering direction setting
Steering wheel.
Steering with separate steering – manual
The symbol (3) is displayed.
Steer 1st and 2nd axle lines with the button (1).
Press and hold button (2)
Steering with separate steering – automatic driving around corners/crab
travel mode
The symbol (2) or (3) is displayed.
Press and hold button (1)
Steering in normal steering mode
The symbol (2) is displayed.
Steer 1st and 2nd axle lines with the button (1).
–to the left: 3rd and 4th axle lines – turn to the left
– to the right: 3rd and 4th axle lines – turn to the right
à p. 24
–to the left: 1st and 2nd axle lines – turn to the left
3rd and 4th axle lines – the matching steering angle for
steering mode
– to the right: 1st and 2nd axle lines – turn to the right
3rd and 4th axle lines – the matching steering angle for
steering mode
à p. 23
– To the left: 1st and 2nd axle lines – turn to the left
3rd and 4th axle lines – the matching steering angle for
the corner
– To the right: 1st and 2nd axle lines – turn to the right
3rd and 4th axle lines – the matching steering angle for
the corner
à p. 25
