SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-12
Published 08-12-19, Control # 224-13_v2
Remote Control
For identification and operation of the self-erect controls
provided on the remote control, refer to Section 3 of this
manual.
Do not operate self-erect controls without first reading
Section 3 of this manual and the applicable procedures in
this section.
NOTE: The speed of all self-erect functions depends on
engine speed: the faster the engine speed, the
faster the self-erect functions (and vice versa).
The remote control can be operated without the electric
cable (2)(wireless) if the job site conditions allow a wireless
signal.
If a wireless signal is not obtainable, connect the electric
cable (2) from the receptacle (4) on the remote control (1) to
the receptacle (4) on the transceiver (3).
Controls for the following functions are provided on the
remote control:
• Engine start, stop, and speed
• 4- Rotating bed pins
• 4- Upperworks jacks (optional)
Item Description
1 Remote Control
2 Electric Cable: 20 m (66 ft)
3 Transceiver
4 Receptacle (qty 2)
5 Battery Charger
6 External Engine Switch
7 DC Load Center

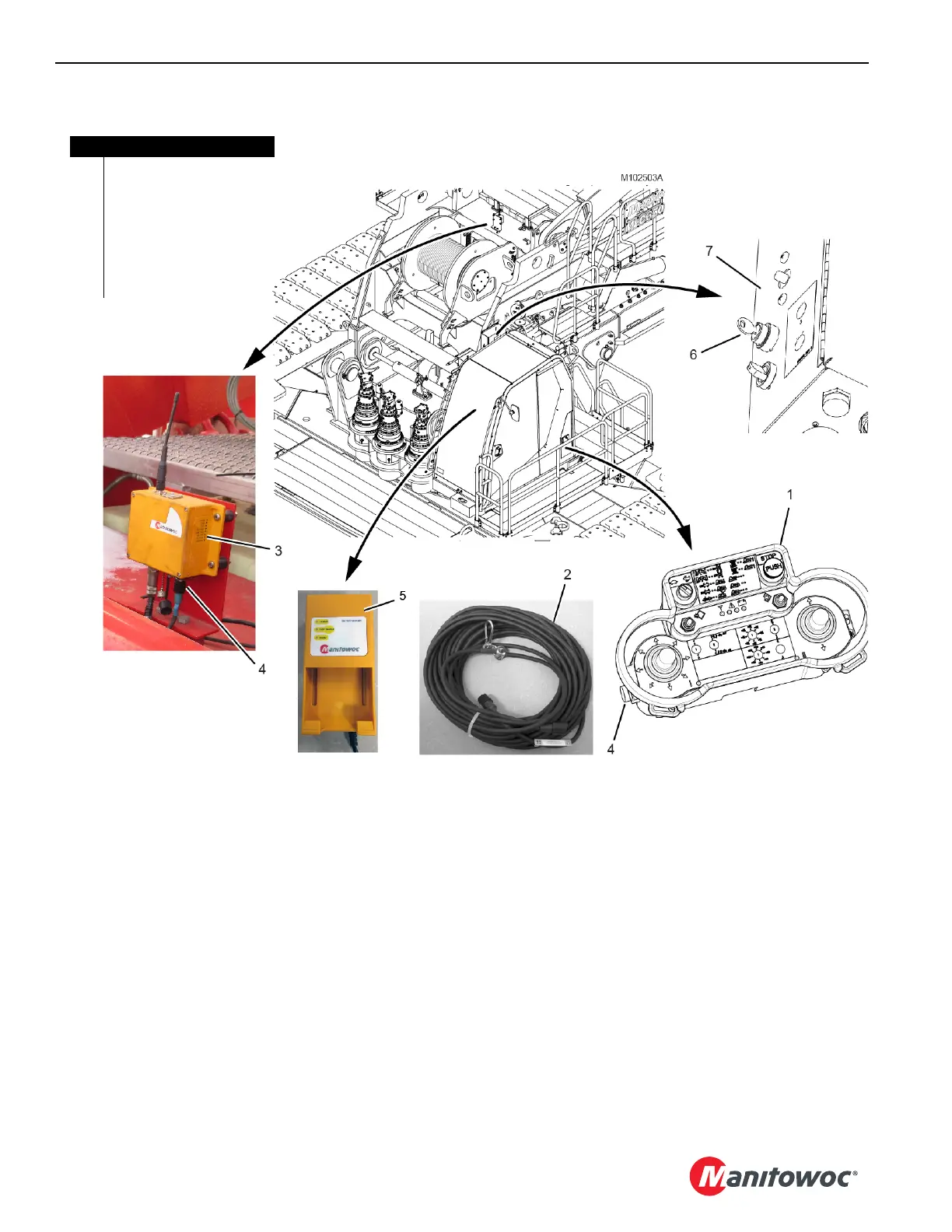

FIGURE 4-12
