OPERATING CONTROLS AND PROCEDURES MLC650 OPERATOR MANUAL
3-28
Published 08-12-19, Control # 224-13
Foot Pedals

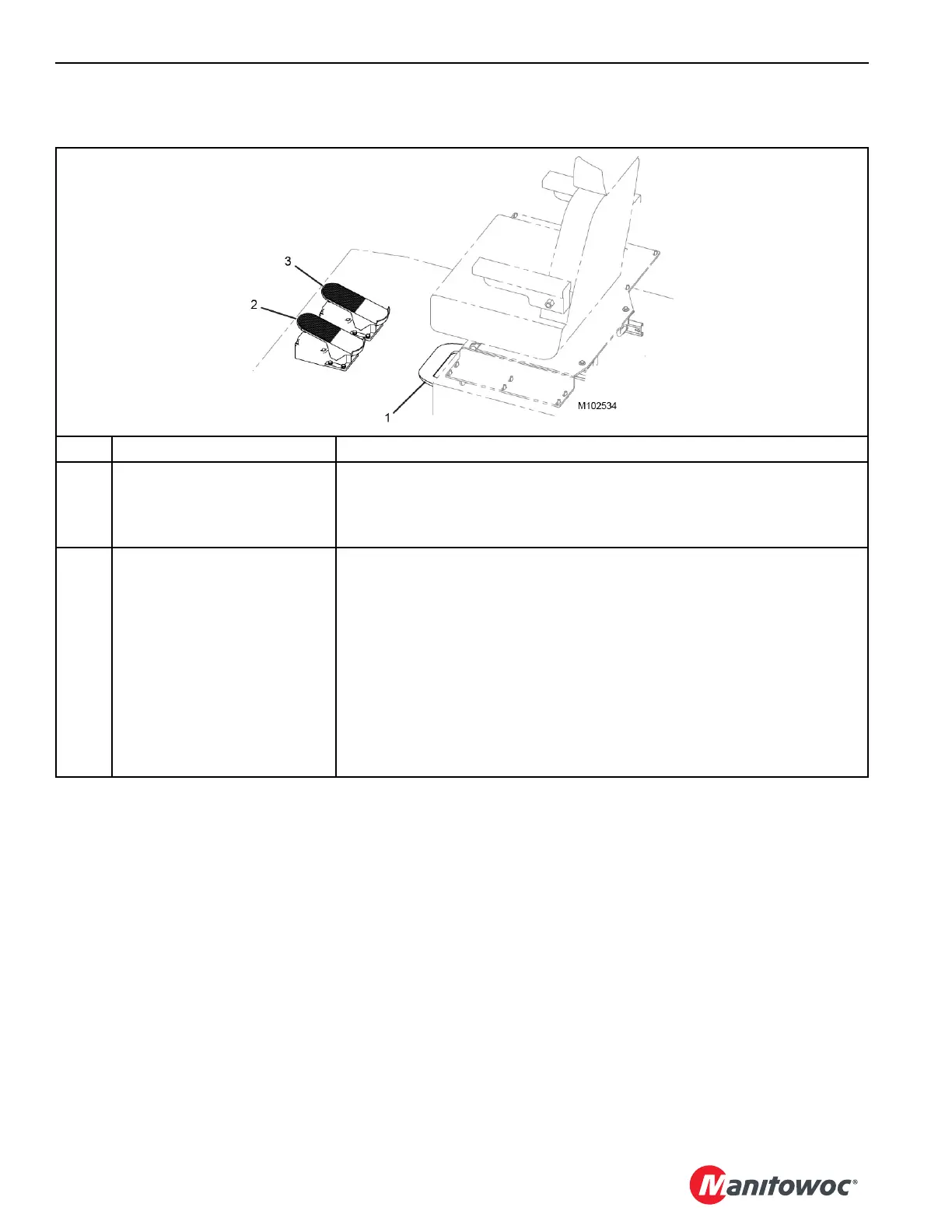

Table 3-7. Foot Pedals
Item Name Description
1 Engine Foot Throttle
• Press DOWN on the foot throttle to INCREASE engine speed above the hand
throttle setting.
• RELEASE the foot throttle to DECREASE engine speed to idle or to the hand
throttle setting.
2
3
Left Travel Foot Pedal
Right Travel Foot Pedal
The following directions of travel are with the front of the rotating bed and the
front of carbody facing the same direction.
The swing and travel alarm beeps to warn personnel when the crane is traveled.
• Depress the FRONT of pedal to travel the corresponding crawler
FORWARD. The corresponding crawler brake release and speed increases
in relation to pedal movement.
• Release the pedal to CENTER to STOP the corresponding crawler. Speed
decreases to off and the crawler brake applies to hold the crawler in position.
• Depress the REAR of pedal to travel the corresponding crawler in
REVERSE. The corresponding crawler brake releases and speed increases
in relation to pedal movement.
