SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL

4-14

Published 08-12-19, Control # 224-13_v2

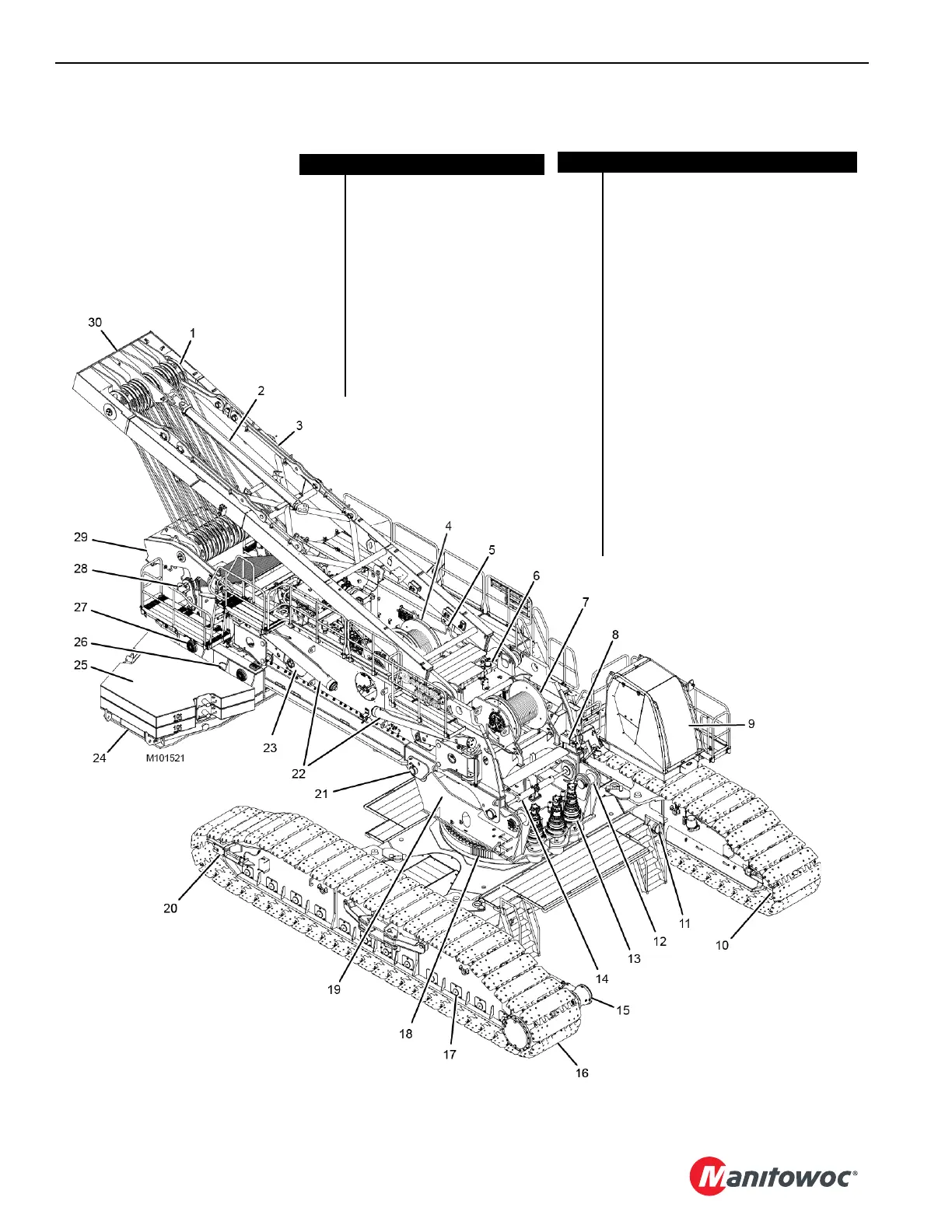

IDENTIFICATION AND LOCATION OF COMPONENTS

FIGURE 4-13

Item Description

1 Live Mast Sheaves

2 Self-Erect Cylinder (optional)

3 Live Mast Links/Straps

4 Live Mast Hoist (Drum 4)

5 Mast Assist Cylinder

6 Fuel Tank

7 Whip Hoist (Drum 3)

8 Boom Stop Switch

9Operator Cab

10 Front Roller

11 Carbody/Crawler Pin

Item Description

12 Boom Hinge Pin

13 Swing Drive

14 Adapter Frame/Rot Bed Pin Puller

15 Crawler Drive

16 Crawler Shoe

17 Intermediate Roller

18 Turntable Bearing

19 Adapter Frame

20 Crawler Tensioning Assembly

21 Adapter Frame/Rot Bed Pin

22 Rotating Bed Jacking Cylinders (optional)

23 Outrigger Pad (optional)

24 Counterweight Tray

25 Counterweight Box

26 Counterweight Tray Drive

27 Counterweight Tray Roller

28 Backhitch

29 Gantry

30 Live Mast
