INTRODUCTION MLC650 OPERATOR MANUAL

1-2

Published 08-12-19, Control # 224-13

IDENTIFICATION AND LOCATION OF COMPONENTS

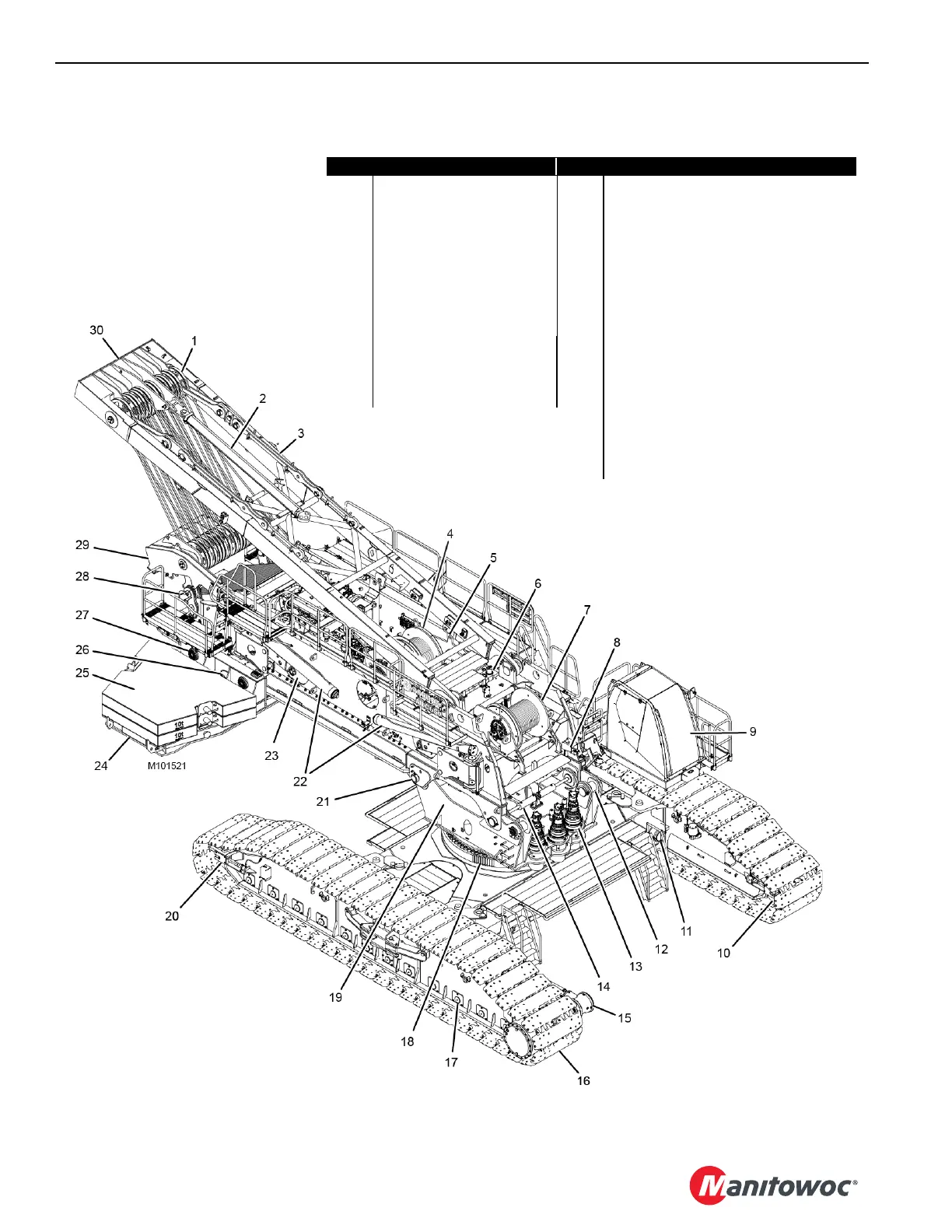

Figure 1-3. Component Identification

Item Description Item Description

1 Live Mast Sheaves 14 Adapter Frame / Rotating Bed Pin Puller

2 Self-Erect Cylinder (optional) 15 Crawler Drive

3 Live Mast Links/Straps 16 Crawler Shoe

4 Live Mast Hoist (Drum 4) 17 Intermediate Roller

5 Mast Assist Cylinder 18 Turntable Bearing

6 Fuel Tank 19 Adapter Frame

7 Whip Hoist (Drum 3) 20 Crawler Tensioning Assembly

8 Boom Stop Switch 21 Adapter Frame/Rot Bed Pin

9 Operator Cab 22 Rotating Bed Jacking Cylinders (optional)

10 Front Roller 23 Outrigger Pad (optional)

11 Carbody / Crawler Pin 24 Counterweight Tray

12 Boom Hinge Pin 25 Counterweight Box

13 Swing Drive 26 Counterweight Drive

27 Counterweight Tray Roller

28 Backhitch

29 Gantry

30 Live Mast
