Manitowoc MLC650 User Manual

Manitowoc Published 08-12-19, Control # 224-13_v2 4-25
MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
4
Install Operator Cab Ladder

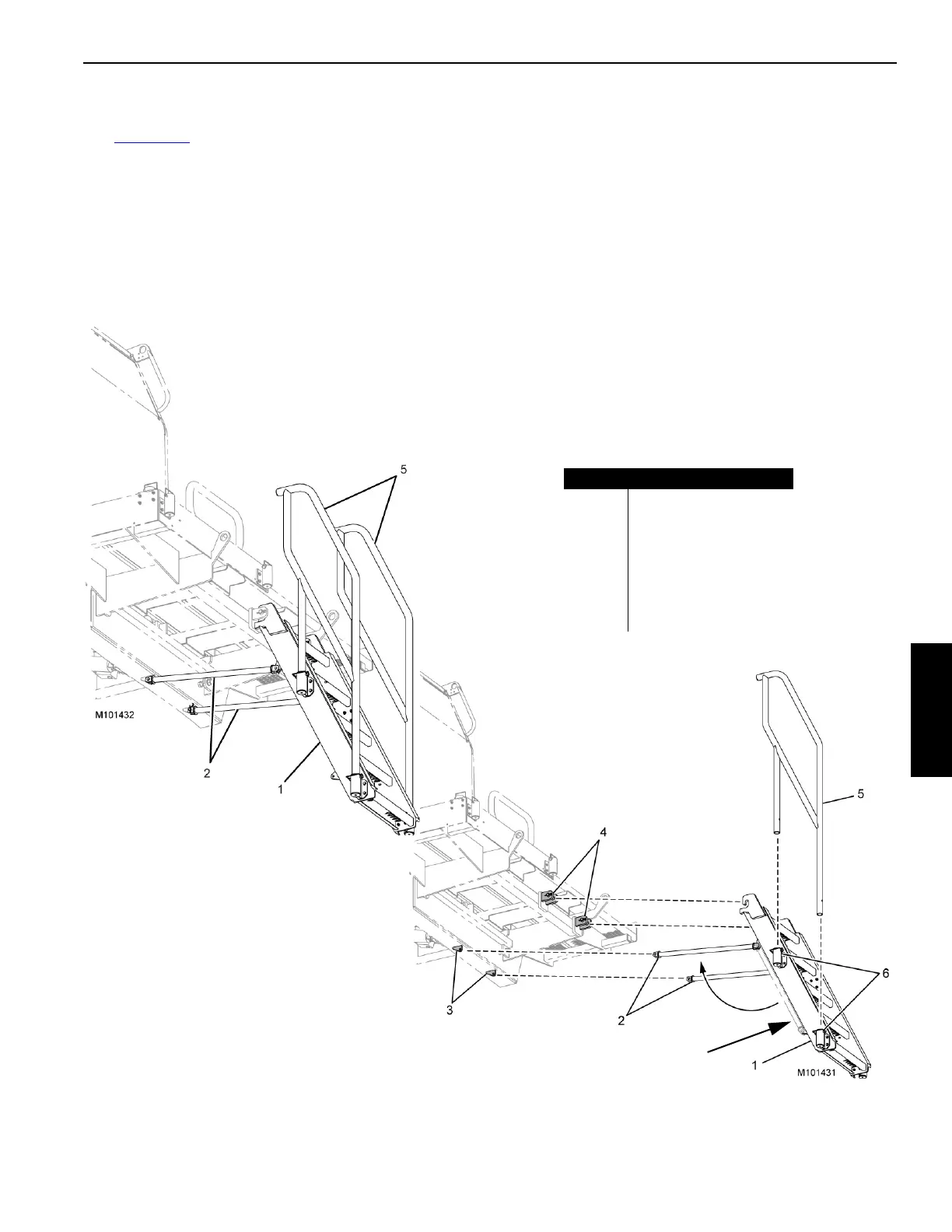

See Figure 4-22 for the following procedure:
NOTE: Raise the rotating bed approximately 100 mm
(4 in) by extending the jacking cylinders to provide
ground clearance for the cab ladder installation.
1. Lift and hook the ladder (1), onto the ladder brackets (4).
NOTE: The ladder (1) (without handrails) weighs
approximately 28 kg (62 lb).
Each handrail weighs approximately 7 kg (15 lb).
2. Remove pins and pivot the two struts (2) from the
shipping position to the working position.
3. Install the pins into the strut brackets (3) to secure the
ladder.
4. Remove the lanyard pins (6) from the handrail brackets.
5. Install the handrails (5) into handrail brackets.
6. Secure the handrails with lanyard pins.
Item Description
1 Ladder
2Struts
3 Strut Brackets
4 Ladder Brackets
5 Handrail
6 Handrail Brackets with
Lanyard Pins
FIGURE 4-22
STORED POSITION
WORKING POSITION
