SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-208
Published 08-12-19, Control # 224-13_v2
RIGGING WINCH OPERATION
If your crane is equipped with the optional rigging winch
(Drum 0), see the Rigging Winch Assembly drawing at the
end of this section for wire rope routing and anchoring.
See Figure 4-163
for the following procedure:
Selecting Rigging Winch Mode
TO TURN RIGGING WINCH ON —
1. Scroll to the rigging winch selection screen (5) in the
main display. See MLC650 Main Display Operation
Manual for instructions.
2. Use either the jog dial on the right console or the scroll
keys on the main display to highlight the ON (I) icon (6)
in the selection box.
3. Press the select button on the jog dial or on the main
display to select the highlighted mode. The screen
changes to reflect the change.

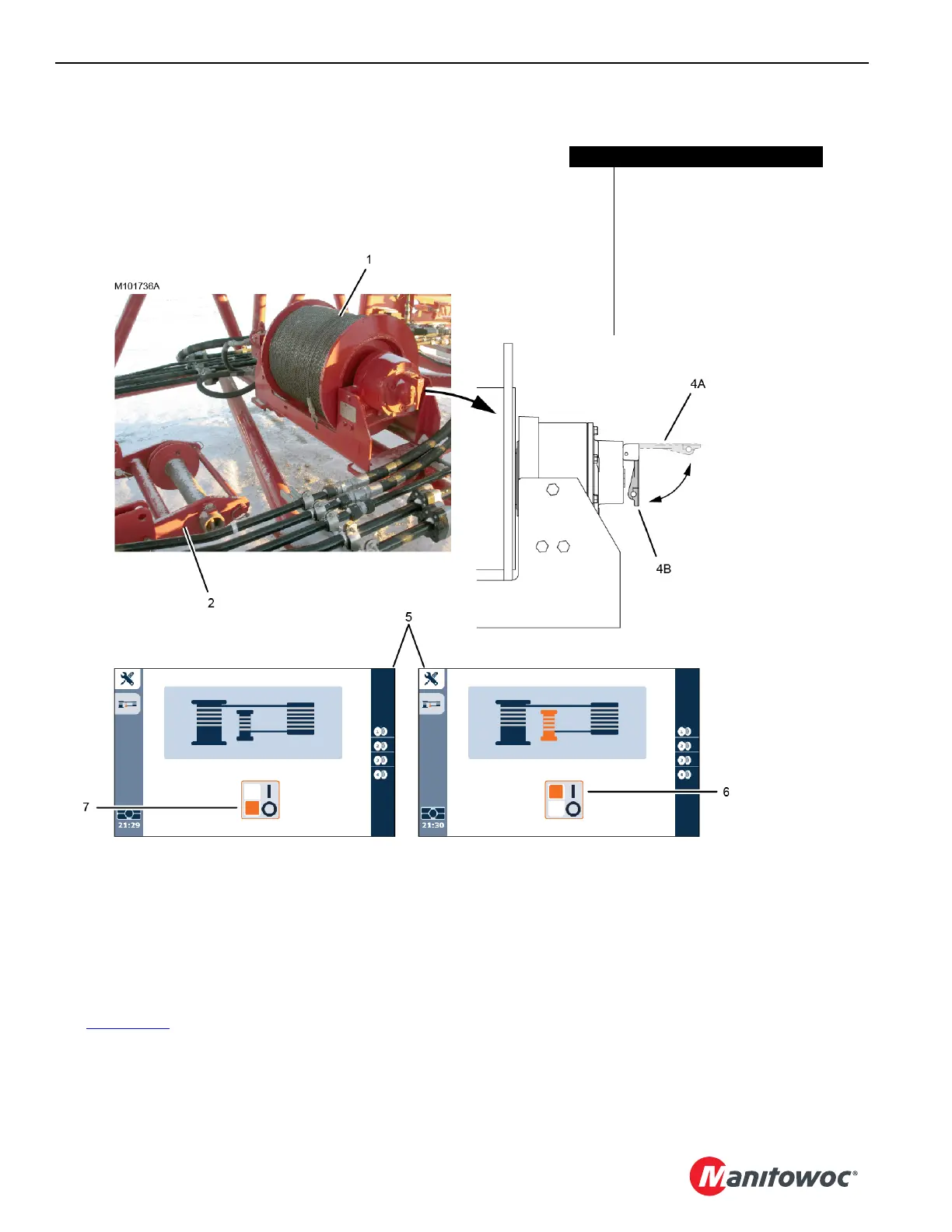

FIGURE 4-163
Item Description
1 Rigging Winch in Boom Butt
2 Wire Rope Guide (2)
3 (Not Used)
4A Lever Engaged (power)
4B Lever Disengaged (free-spool)
5 Rigging Winch Selection Screen
6 Rigging Winch ON
7 Rigging Winch OFF
