SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-72
Published 08-12-19, Control # 224-13_v2
Installing Carbody Platforms
See Figure 4-58 for the following procedure:
NOTE: Use an assist crane or forklift to lift the carbody
platform.
1. Hold onto the strut (4), remove the safety pin (2) allowing
the strut (4) to swing down, and store the safety pins (2).
2. Remove the two safety pins and hitch pins (7).
3. Move the platform to the carbody and hook the platform
brackets (5) onto the carbody platform brackets (6).
4. Remove the hitch pin (3), extend the strut (4) to the
working position, and insert the hitch pin (3).
5. Swing the two struts (4) toward the carbody, aligning the
struts with the carbody brackets, and insert the wire
locking pins (1).
6. Install the two hitch pins with safety pins (7) to secure
the platform to the carbody.
7. Use the adjusters (8) on the struts to level the platforms.

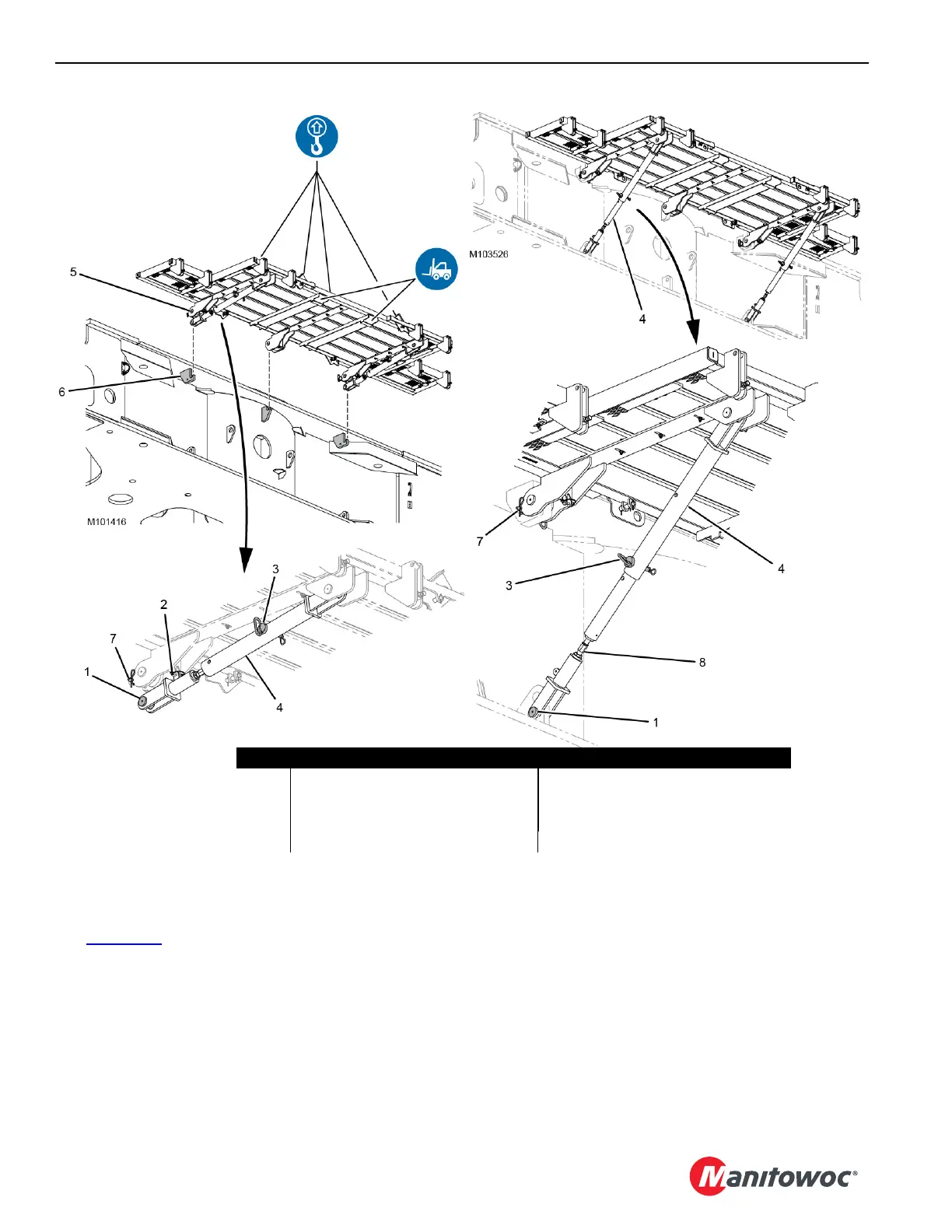

FIGURE 4-58
Item Description Item Description
1 Wire Locking Pin (qty 2) 5 Platform Bracket (qty 3)
2 Safety Pin (qty 2) 6 Carbody Platform Bracket (qty 3)
3 Hitch Pin (qty 2) 7 Hitch Pin with Safety Pin (qty 2)
4 Strut (qty 2) 8 Adjuster
SHIPPING POSITION
WORKING POSITION
(4)
To Next Page
