Manitowoc Published 08-12-19, Control # 224-13_v2 4-57
MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
Installing Hydraulic Connections
See Figure 4-47 for the following procedure.
1. On the right and left side of the crane, remove the
remaining hydraulic hoses from the stored position.
2. Connect remaining hydraulic hoses (2) to the working
position.
NOTE: There are four hydraulic hose connections on the
left side of the crane and five hydraulic hose
connections on the right side of the crane.

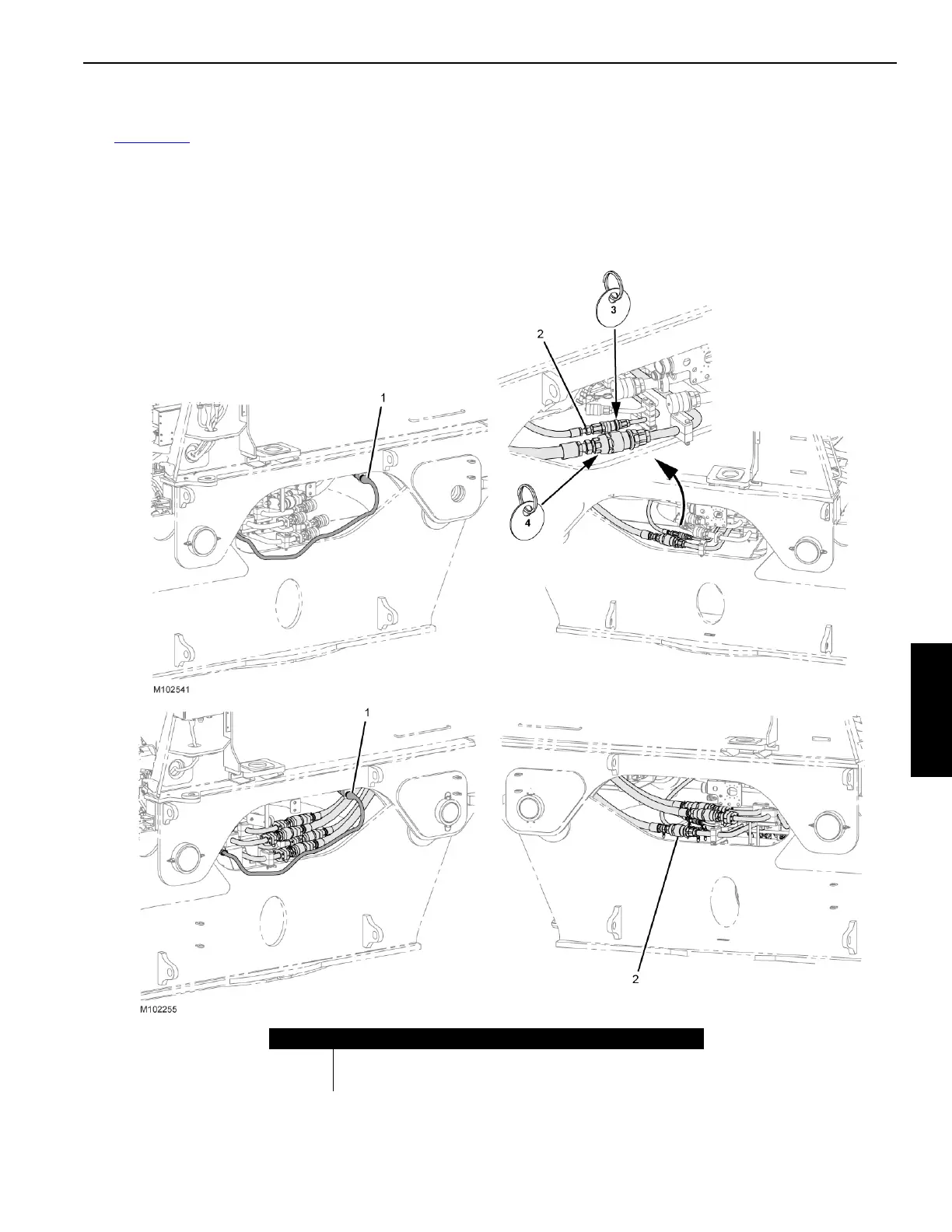

LEFT SIDE OF CRANE
RIGHT SIDE OF CRANE
FIGURE 4-47
WORKING POSITION
Item Description
1 Adapter Frame Electrical Cable (WFC1 connects to WRF2-J5)
2 Hydraulic Connections (5 connections)
To Next Page
