Manitowoc Published 08-12-19, Control # 224-13_v2 4-73
MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
4
Installing Carbody Ladders and Handrails
See Figure 4-59 for the following procedure:
1. Using an assist crane or forklift, install ladders by
hooking the ladder assembly (1) onto the ladder support
(2) on the carbody platform.
2. Use the adjustment screw (3) on the ladder support to
level the ladder.
3. Install the handrail into the ladder assembly and secure
with pins.
NOTE: The ladder and handrail combined weigh
approximately 53 kg (117 lb).
4. Multiple locations are provided for the ladders. When the
ladder assembly is installed, the handrail must be
installed on the crawler side of the platform.

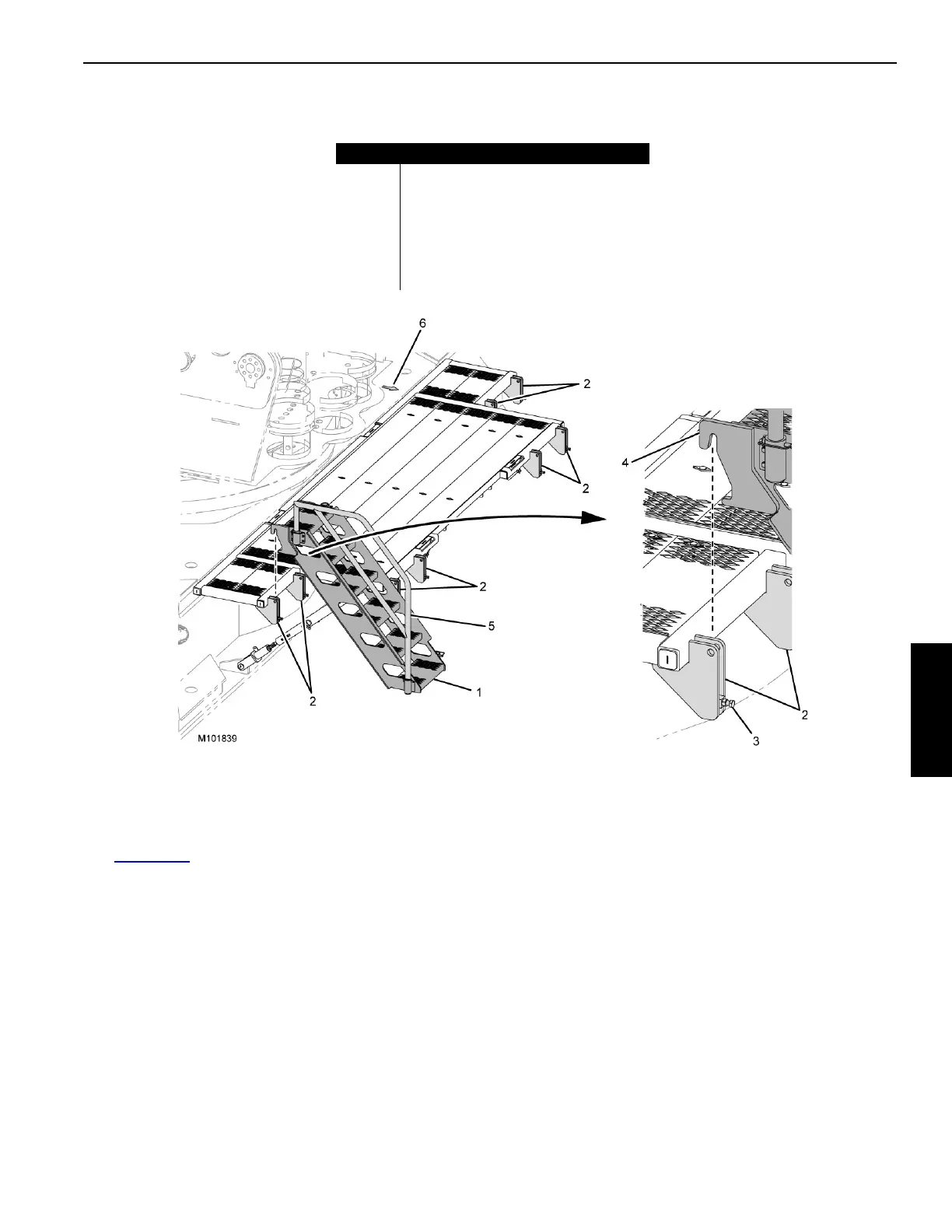

FIGURE 4-59
Item Description
1 Ladder Assembly
2 Ladder Support
3 Adjustment Screw
4 Ladder Bracket
5 Handrail
6 Front of Carbody Arrow
