OPERATING CONTROLS AND PROCEDURES MLC650 OPERATOR MANUAL
3-4
Published 08-12-19, Control # 224-13
SYMBOLS USED ON CONTROL CONSOLES
The following symbols are used on the control consoles to identify the operating controls and their operation.

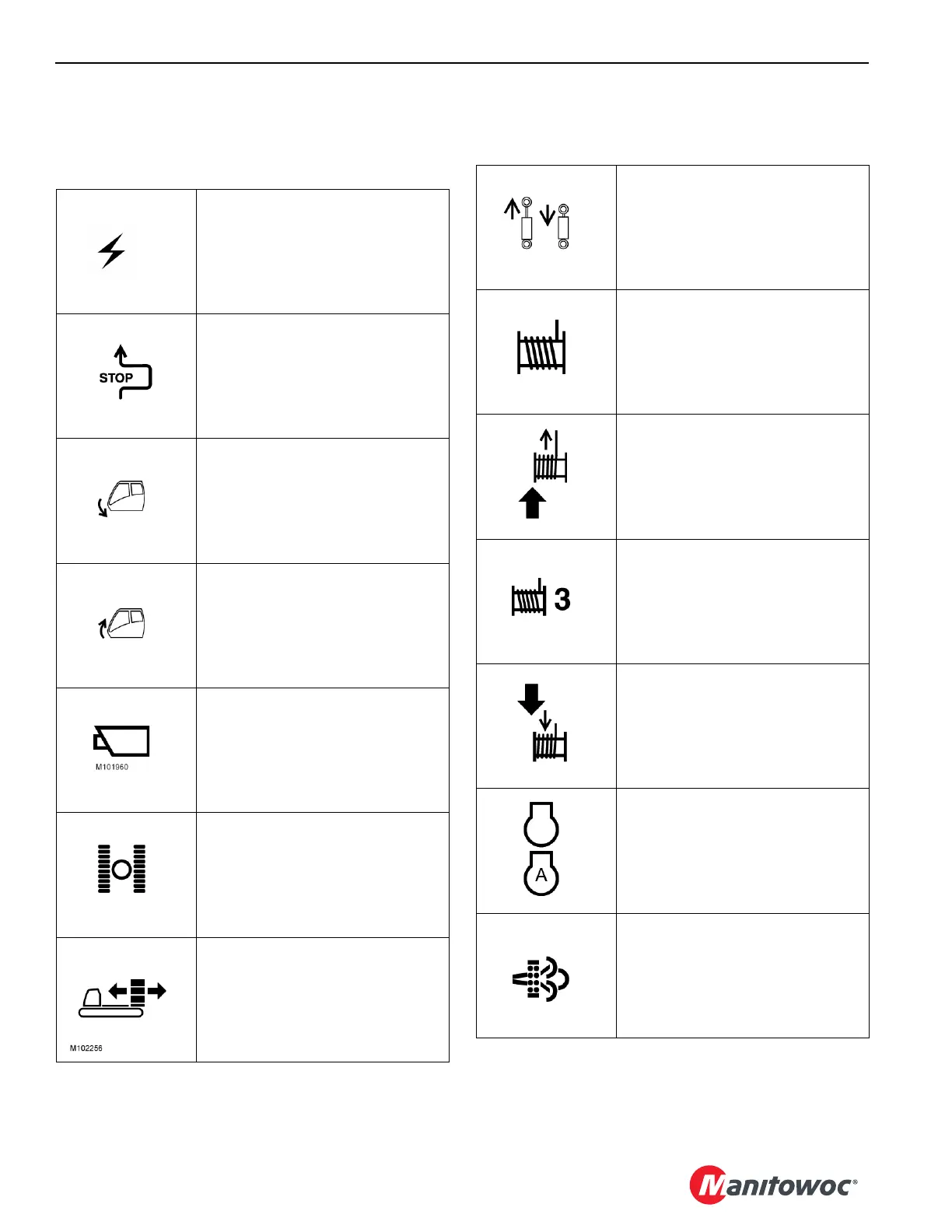

Table 3-2. Symbol Identification — Control Consoles
Battery, 12 Volt Supply
Bypass, Crane Limits
Cab Tilt Down
Cab Tilt Up
Camera
Crawlers
Counterweight, VPC (variable
position counterweight)
Cylinders, Mast Assist Arms,
Extend and Retract
Drum
Drum, Lower
Drum Number (location of number
varies)
Drum, Raise
Engine or Auxiliary Engine
DPF Inhibit On (Tier 4)
