SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-200
Published 08-12-19, Control # 224-13_v2
Installing Cab Window Covers (If Equipped)
See Figure 4-155 for the following procedure:
1. Install the window cover (1) on the appropriate windows
aligning the hole in the cover with the stud (3). Slide hair-
pin cotters (2) through the hole in the stud.

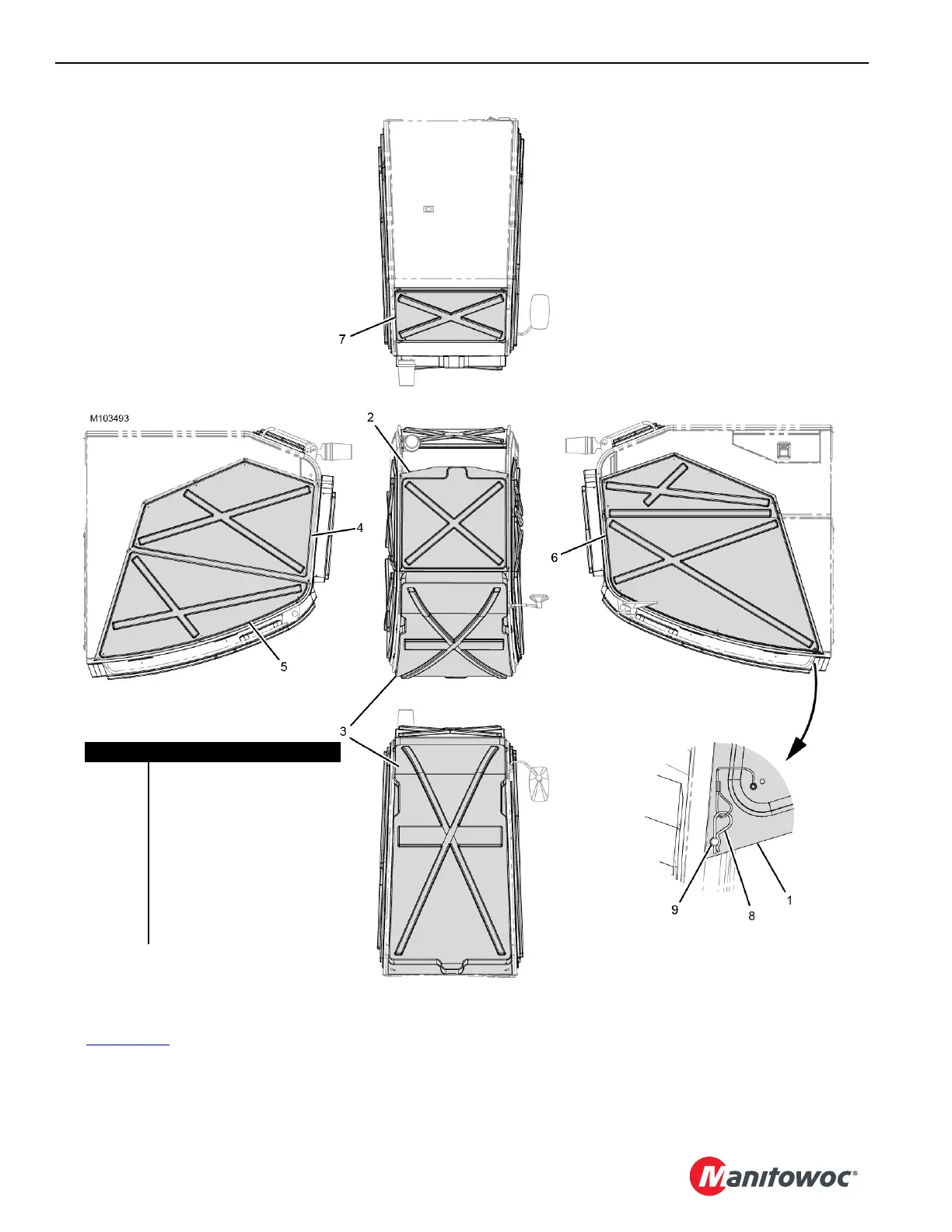

FIGURE 4-155
Item Description
1 Window Cover
2Top Cover
3Front Cover
4 Right Side Rear Cover
5 Right Side Front Cover
6Left Cover
7 Back Cover
8 Hair-Pin Cotter
9Stud
