MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
Removing Operator Cab Ladder
See Figure 4-149 for the following procedure:
NOTE: Raise the rotating bed approximately 100 mm (4 in)
by extending the jacking cylinders to provide
ground clearance to remove the cab ladder.
1. Remove the pins from the strut brackets (3).
2. Disconnect the struts (2) from the strut brackets.
3. Pivot the struts to the stored position and secure with
pins.
4. Lift the ladder (1) from the ladder brackets (4).
NOTE: The ladder without handrails weighs approximately
28 kg (62 lb).
5. Prepare the operator ladder for shipping.

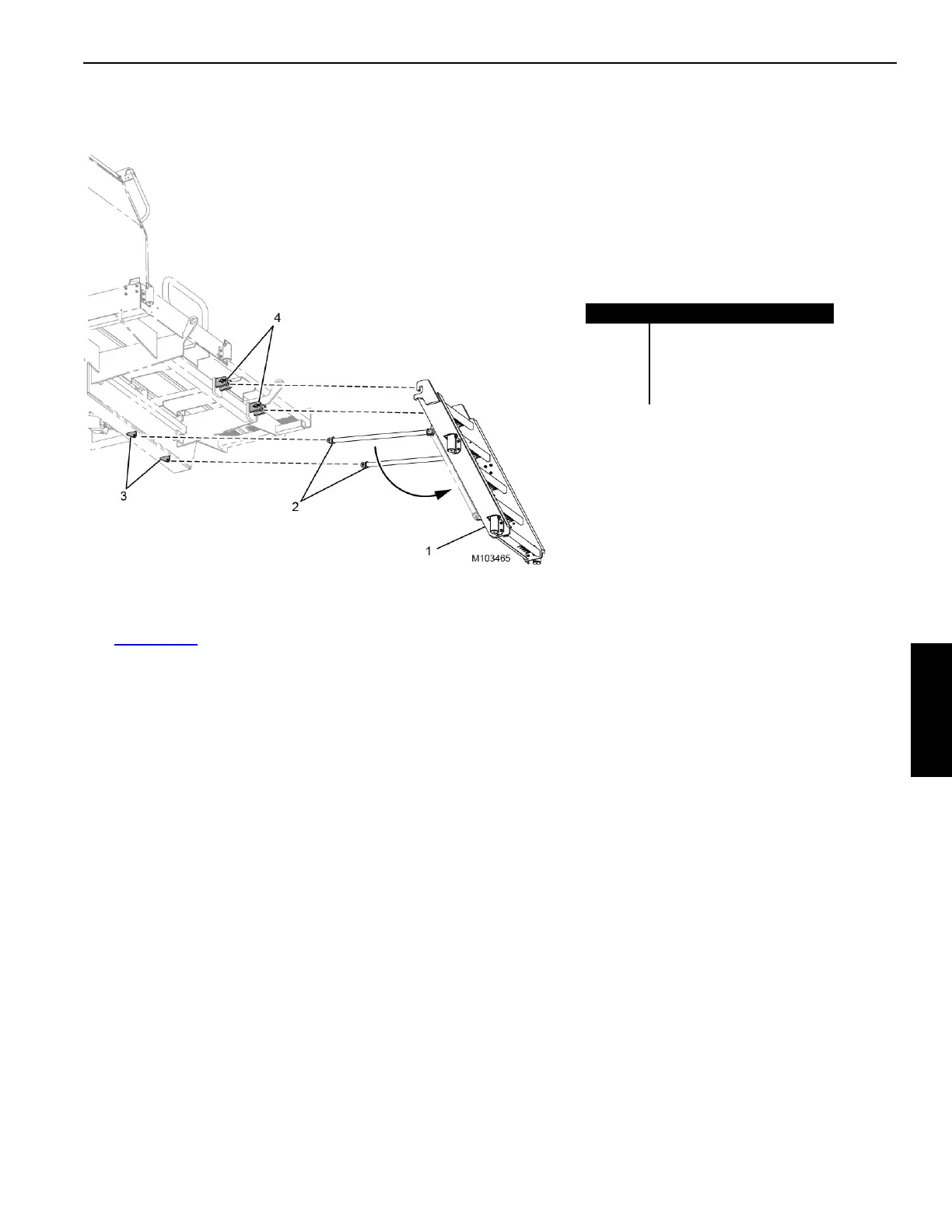

FIGURE 4-149
Item Description
1 Ladder
2 Strut (qty 2)
3 Strut Bracket (qty 2)
4 Ladder Bracket (qty 2)
