MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
4
Storing Operator Cab Front Platform
See Figure 4-151 for the following procedure:
1. Remove the quick-release pins (3), rotate the cab
pivoting handrail (2, View A) and install the quick-release
pins.
2. Remove the safety pins (1, View A) from the platform
bracket. Position the platform into the stored position
and insert the safety pins (1, View B).

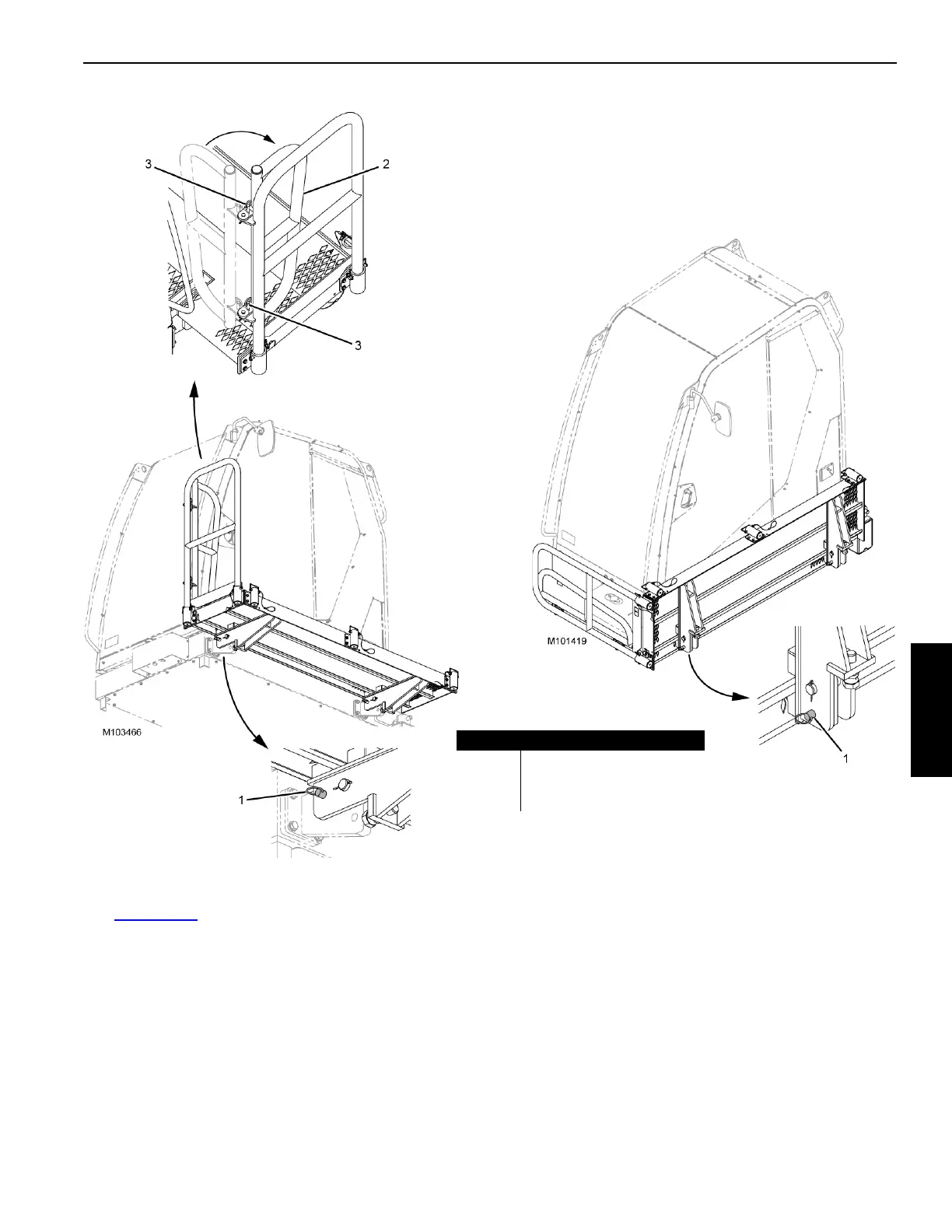

FIGURE 4-151
VIEW B
VIEW A
Item Description
1 Safety Pin (qty 2)
2 Cab Pivoting Handrail
3 Quick-Release Pin (qty 2)
