MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
4
Storing Carbody Jacking Cylinders
See Figure 4-55 for the following procedure:
1. Fully retract the carbody jack (1, View A).
2. Remove the safety pins and pins (4) from the strut (3,
View A).
3. Secure the strut (3, View B) with safety pins and pins to
the carbody jack.
4. Rotate the carbody jack (1, View B) into the stored
position.
5. Install the safety pins and pins (4) through the carbody
jack bracket and the jack lug (5) to secure.
6. Remove the quick release pin and pin (7). Place the
outrigger pad (2) into the stored position and secure with
the pin and quick release pin.

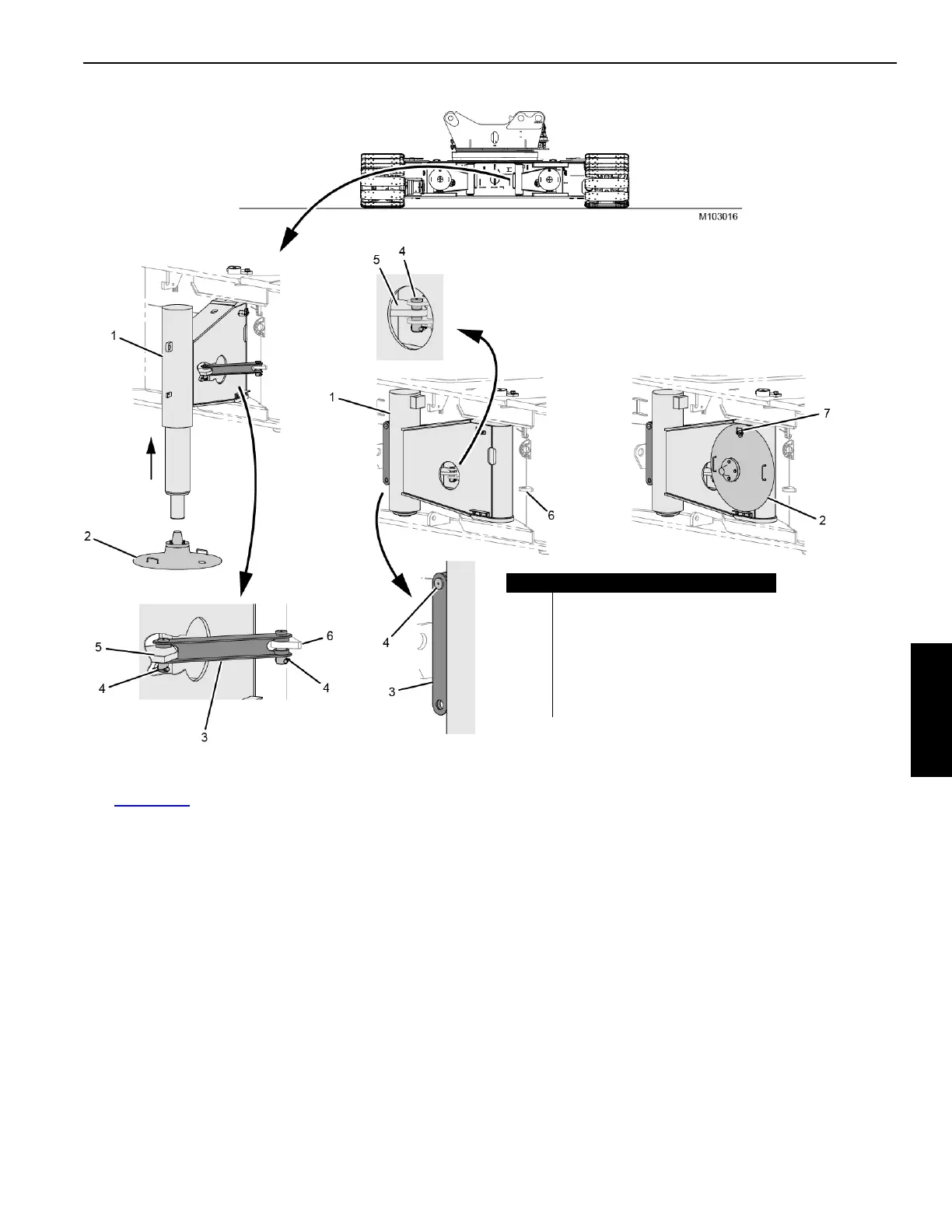

FIGURE 4-55
Item Description
1 Carbody Jack (qty 4)
2 Outrigger Pad (qty 4)
3 Strut (qty 4)
4 Safety Pin and Pin (qty 8)
5 Jack Lug (qty 4)
6 Carbody Lug (qty 4)
7 Pin and Quick Release Pin (qty 4)
View A
View B
View C
WORKING POSITION
STORED POSITION
