Removing Operator Cab Rear Platform

See Figure 4-150 for the following procedure:

1. Remove the locking pins (4) from the hooded bracket

(3).

NOTE: The operator cab rear platform (1) must be

removed using an assist crane or forklift.

2. Attach four lifting slings to the lifting lugs and raise the

operator cab rear platform from the fixed pins (2).

3. Prepare the operator cab rear platform for shipping.

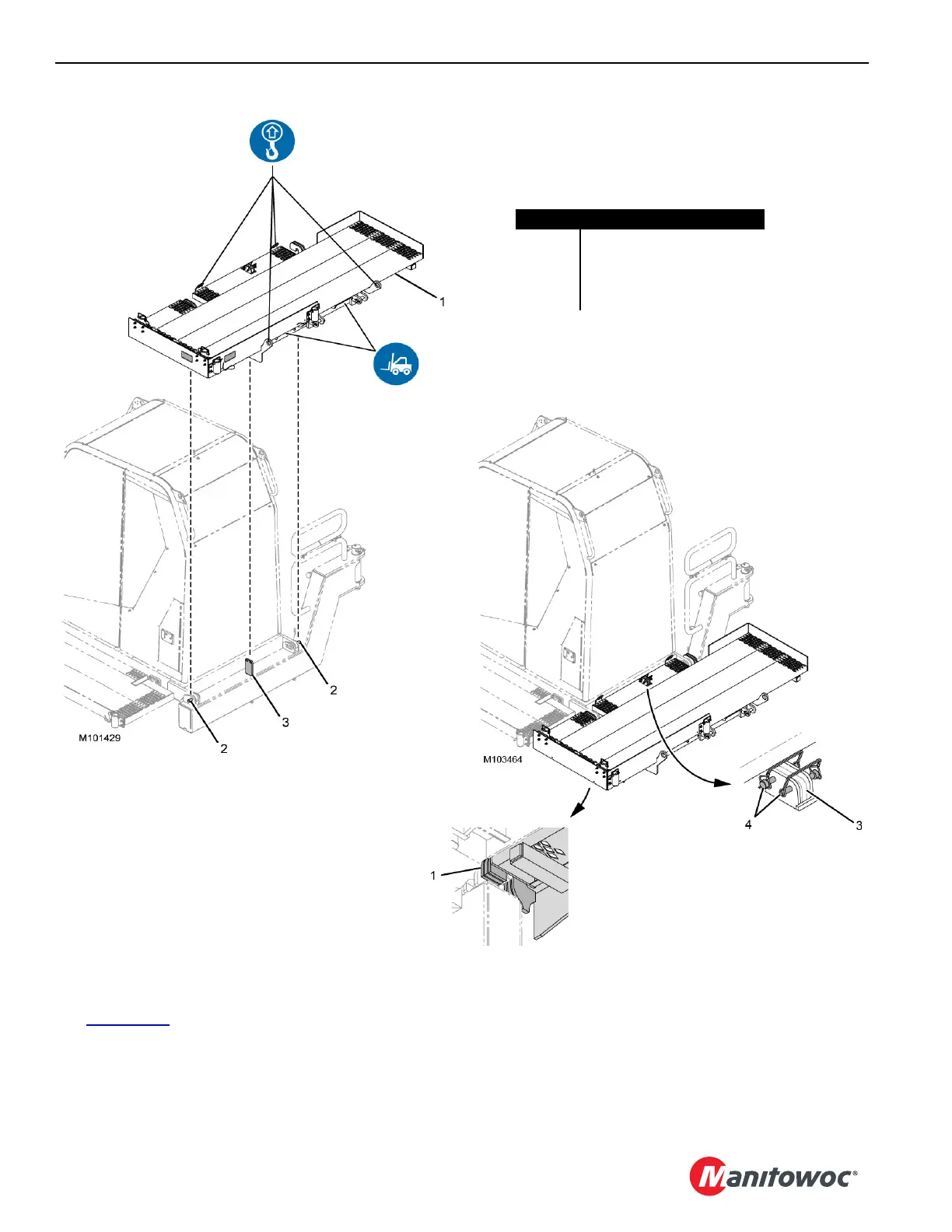

FIGURE 4-150

Item Description

1 Operator Cab Rear Platform

2 Fixed Pin (qty 2)

3 Hooded Bracket

4 Locking Pin (qty 2)
