Manitowoc Published 08-12-19, Control # 224-13_v2 4-175
MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
Removing Carbody and Adapter Frame from
Rotating Bed
See Figure 4-135 for the following procedure:
1. Fully extend the rotating bed jacking cylinders to
separate the rotating bed (4) from the adapter frame (2)
and carbody (3).
2. Remove the trailer (1). Use extreme care not to hit the
rotating bed jacking cylinders with the trailer. Have a
signal person provide instructions to the truck driver.
3. Secure the carbody and adapter frame to the trailer.

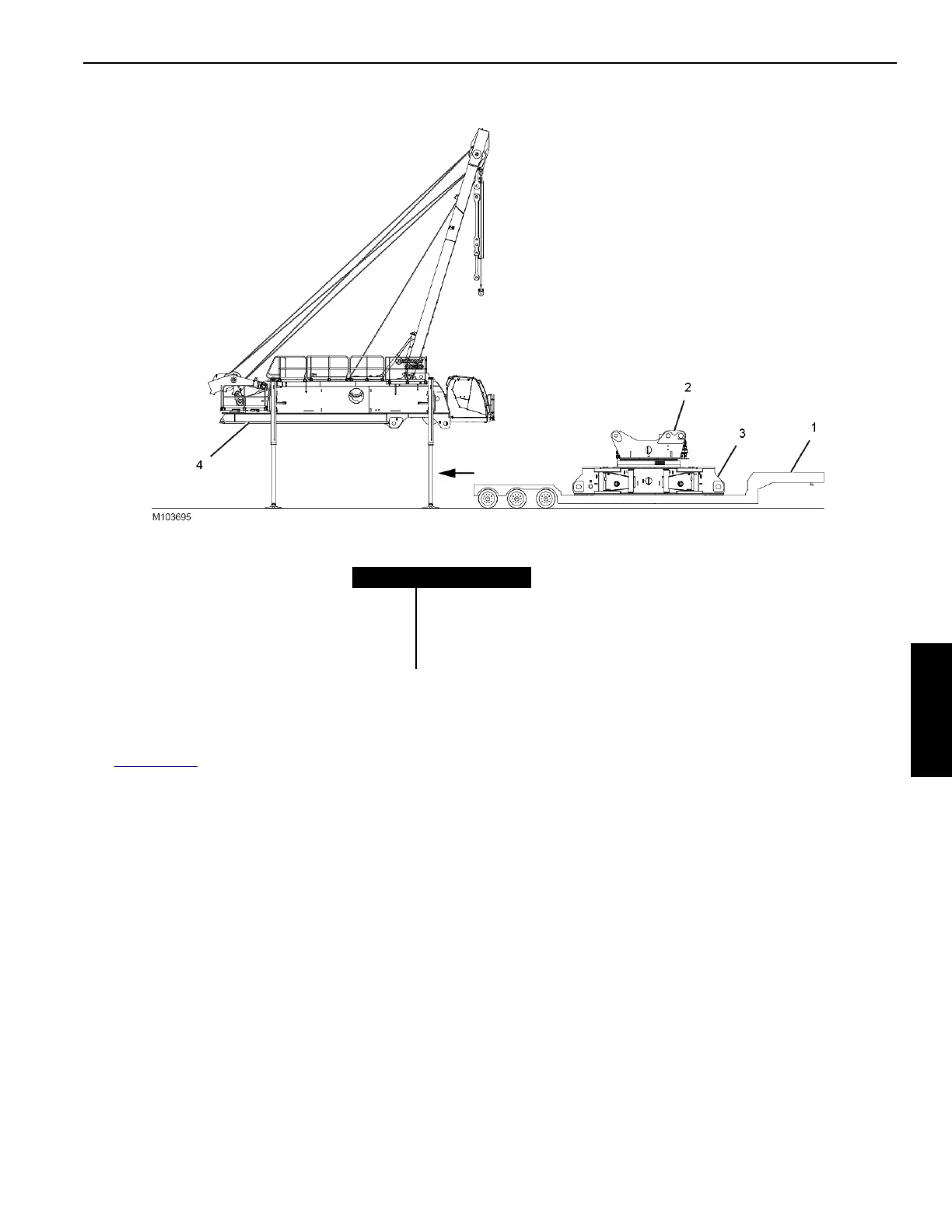

FIGURE 4-135
Item Description
1Trailer
2 Adapter Frame
3 Carbody
4 Rotating Bed
