Install Operator Cab Rear Platform
NOTE: The rear cab platform (1) must be installed using an
assist crane or forklift.
1. Attach four lifting slings to the lifting lugs and raise the
rear cab platform (1) into position until the platform
hooks onto the fixed pins (2) and engages the hooked
bracket (3).
2. Once lowered into position, secure the platform by
inserting pins (4) into the hooked bracket.
3. Once secured, remove the four lifting slings.
4. Insert the two handrails (5) into the handrail brackets
and secure the handrails with the lanyard pins (6).
Each handrail weighs approximately 7 kg (15 lb).
NOTE: Identification labels are provided on the handrails
and platforms for ease of installation.
CAUTION
The pins (4) secure the platform to the crane and must be
installed to avoid injury and /or property damage.

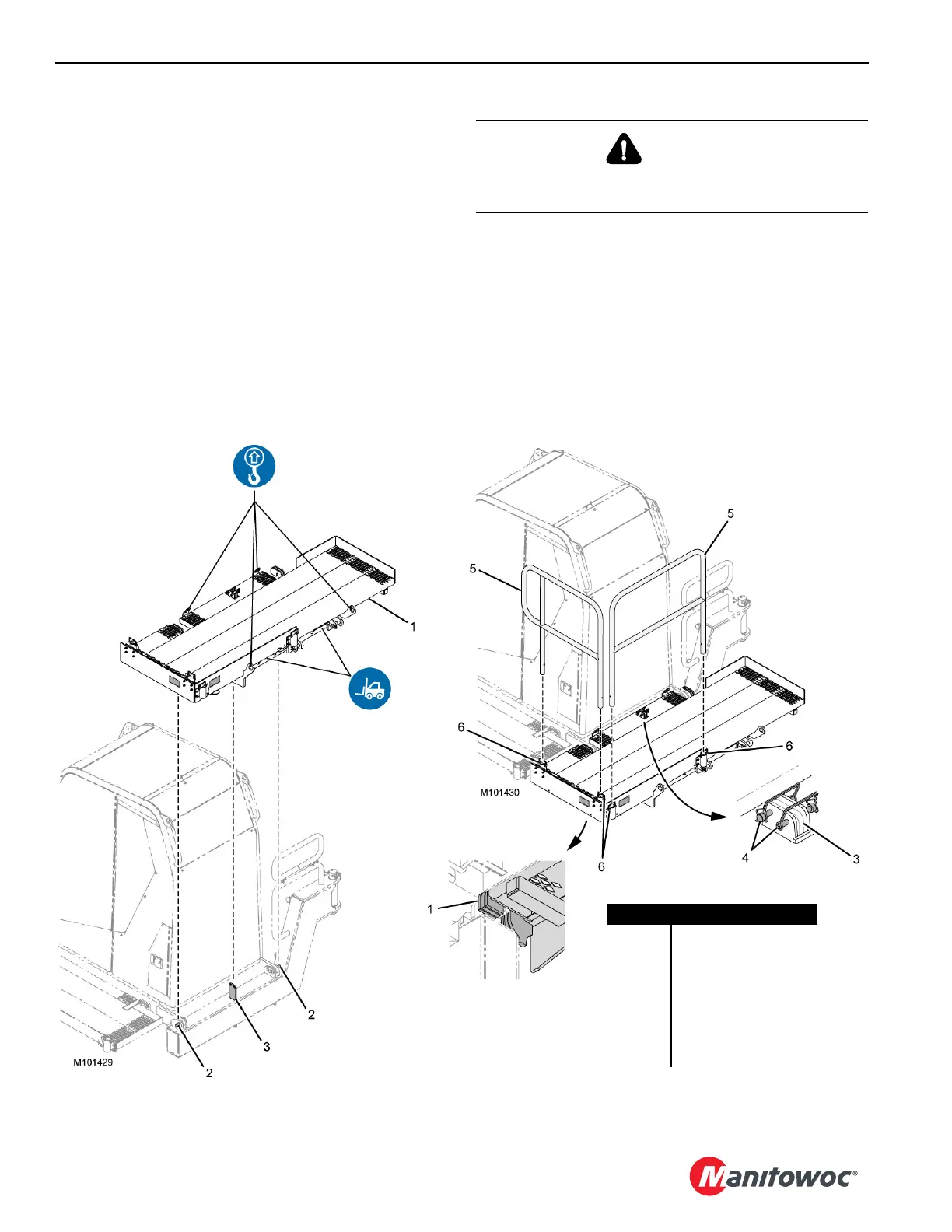

FIGURE 4-21
Item Description
1 Rear Cab Platform
2 Fixed Pins
3 Hooked Bracket
4Pins
5 Handrail
6 Handrail Brackets with
Lanyard Pins
(4)
