Manitowoc MLC650 - Installing Front Platforms, Ladders, and Handrails from Rotating Bed and Cab

Manitowoc Published 08-12-19, Control # 224-13_v2 4-75
MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
4
Installing Front Platforms, Ladders, and
Handrails from Rotating Bed and Cab

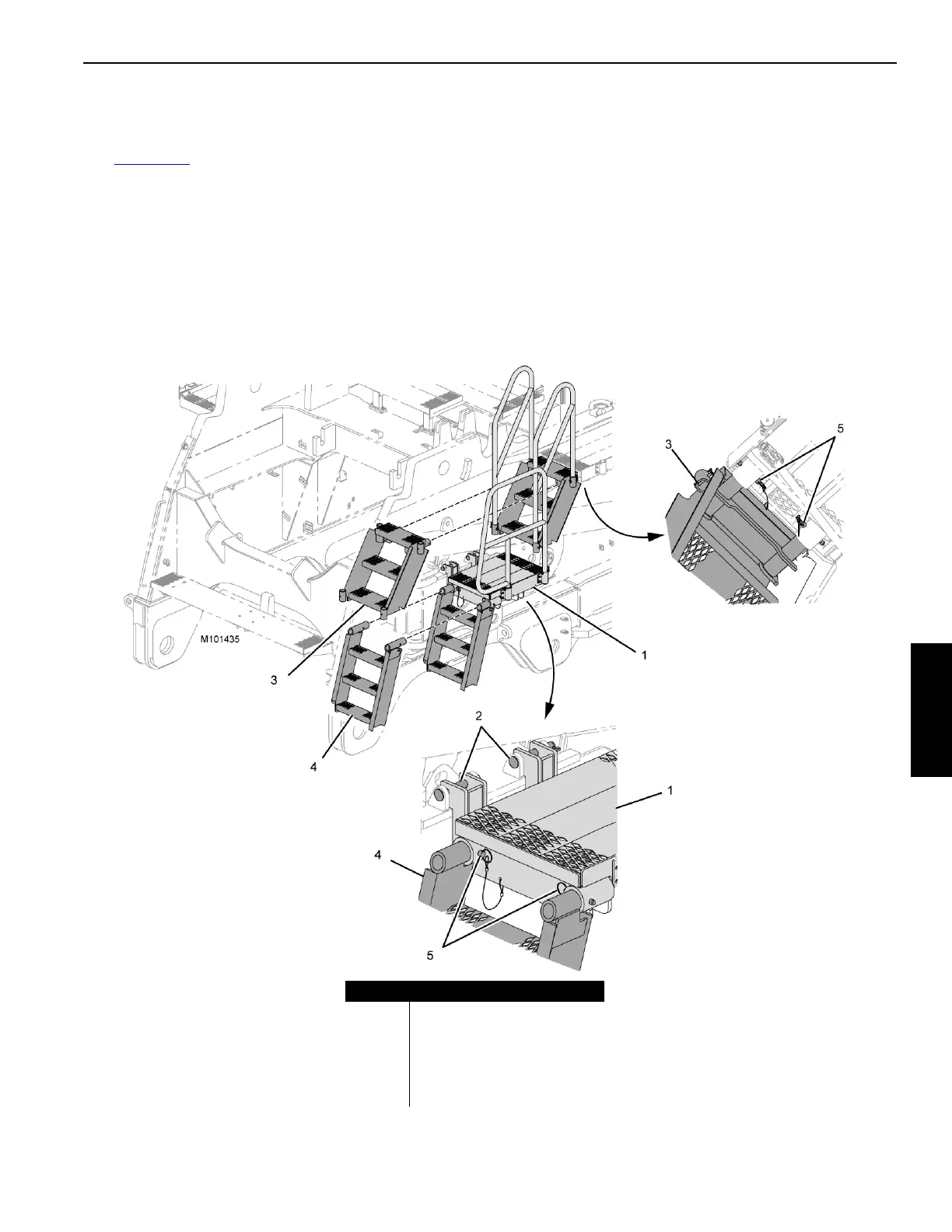

See Figure 4-61 for the following procedure:
1. Install the platform (1) to the rotating bed using quick
release pins (2).
2. Install the lower cab-to-bed ladder (4) by sliding the
tubes at the top of the ladder through sleeves on the
underside of the platform.
3. Secure the ladder with the two quick-release pins (5).
NOTE: The lower ladder weighs approximately 20 kg
(45 lb).
4. Install the upper cab-to-bed ladder (3) by sliding the
tubes at the top of the ladder through sleeves on the
underside of the platform.
5. Secure the ladder with the two quick-release pins (5).
NOTE: The upper ladder weighs approximately 20 kg
(45 lb).
6. Install the dedicated handrails by inserting the handrail
assembly into the handrail brackets and securing with
lanyard pins.
NOTE: Each handrail weighs approximately 8 kg (15 lb).
Item Description
1Platform
2 Quick- Release Pin (qty 4)
3 Upper Cab-To-Bed Ladder
4 Lower Cab-To-Bed Ladder
5 Quick-Release Pin (qty 4)
FIGURE 4-61
