Manitowoc Published 08-12-19, Control # 224-13_v2 4-15
MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
CRANE ASSEMBLY
Remove Cab Window Covers
See Figure 4-14 for the following procedure:
If equipped, remove and store the cab window covers. The
cab covers are secured with hair-pin cotters attached to the
covers with lanyards. Remove hair-pin cotters to remove
covers.

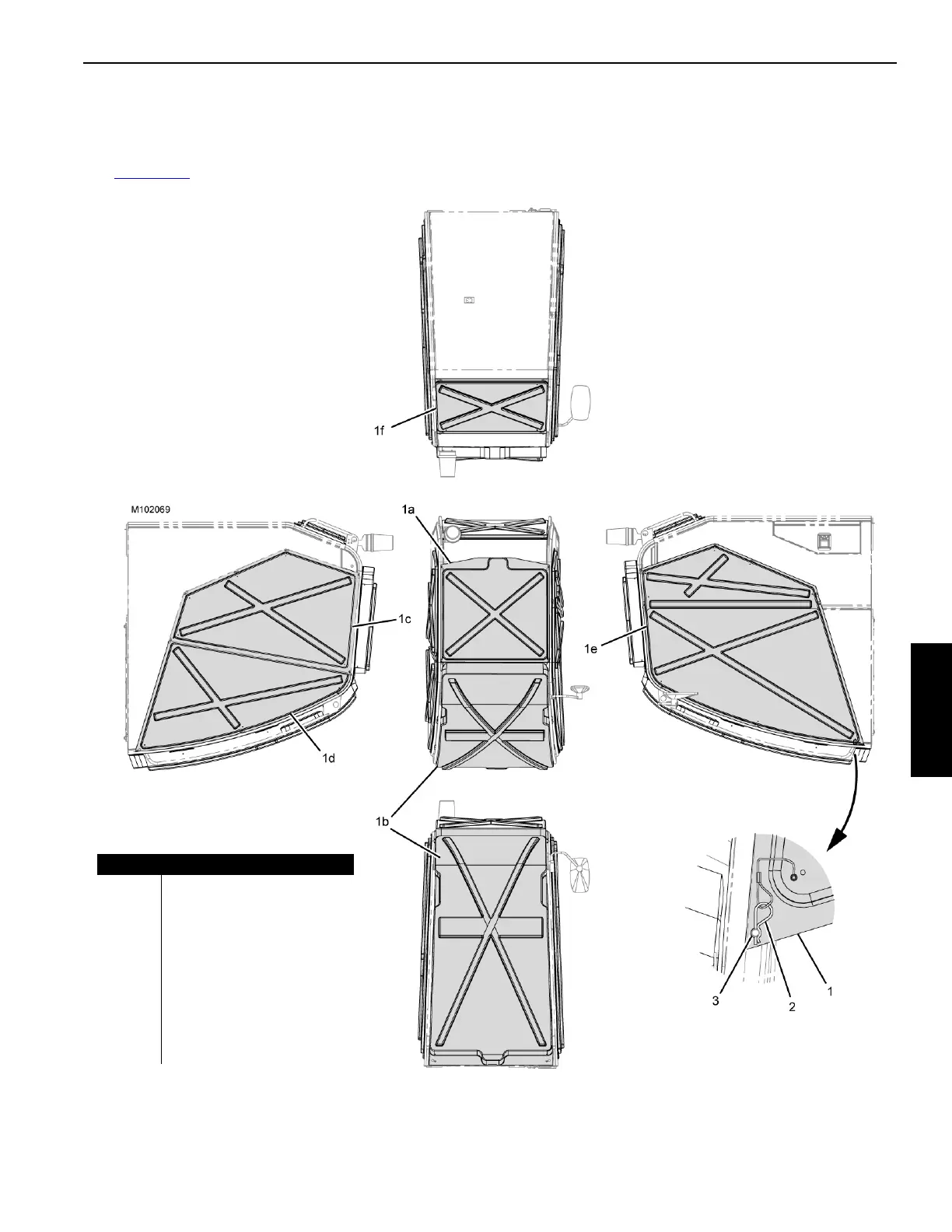

FIGURE 4-14
Item Description
1 Window Cover
1a Top Cover
1b Front Cover
1c Right Side Rear Cover
1d Right Side Front Cover
1e Left Cover
1f Back Cover
2 Hair-Pin Cotter with Lanyard
3Stud
To Next Page
