DRUM AND CONTROL HANDLE IDENTIFICATION

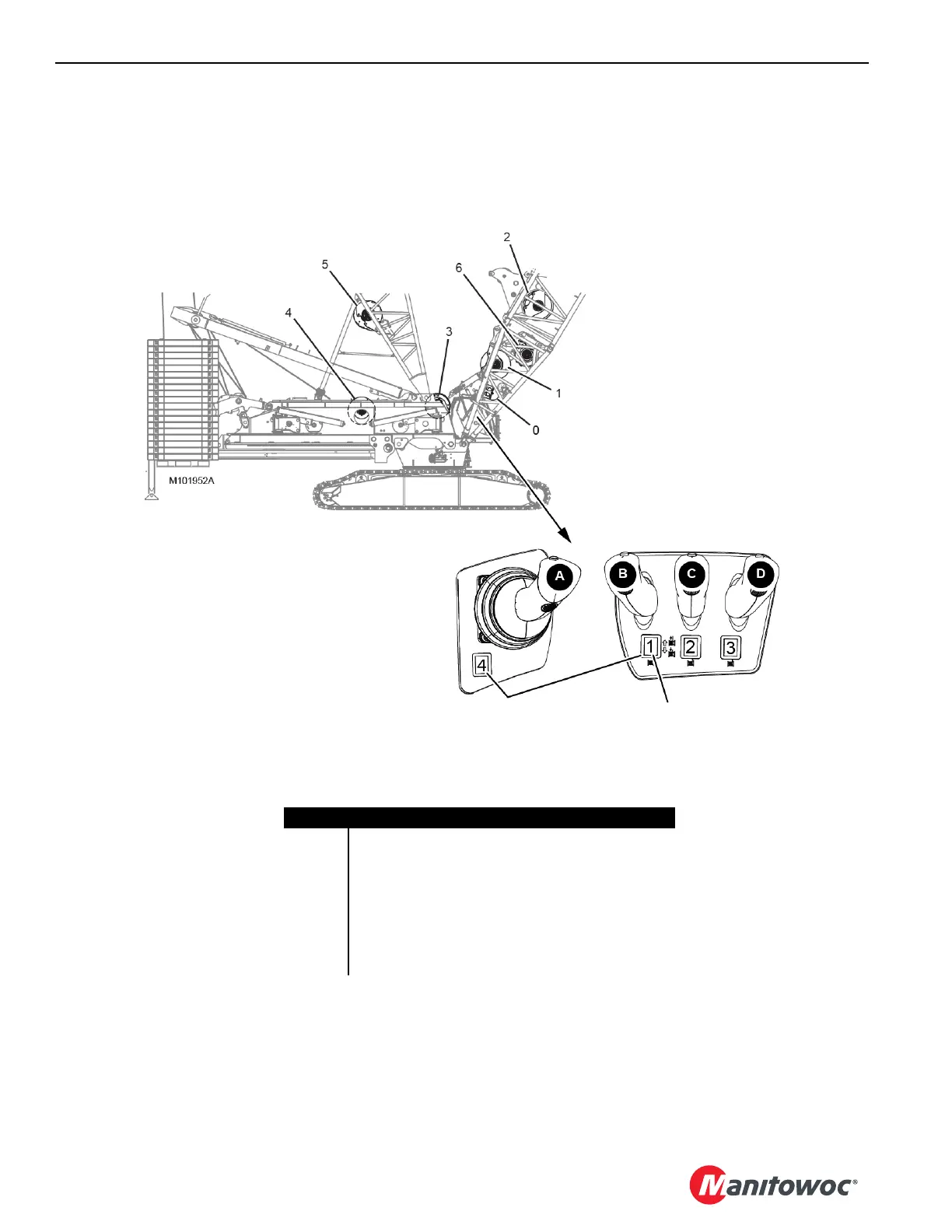

Figure 3-7. Drum Identification
Drum Description
1 Main Hoist
2 Main Hoist (optional)
3Whip Hoist
4 Boom Hoist (standard) OR Mast Hoist (VPC-MAX)
5 Boom Hoist (VPC-MAX)
6 Luffing Hoist
0 Rigging Winch (optional)
Drum Numbers Change to
Match Selected Configuration
T Appears if TANDEM Drums
are Configured and Both
Drums are Unparked
