SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-196
Published 08-12-19, Control # 224-13_v2
Securing Operator Cab
See Figure 4-152 for the following procedure:
1. Loosen the clamp handle (6) on the RCL light (7) and
move the RCL light to the shipping position. Tighten the
clamp handle.
2. Remove the pins and safety pins (1) from the strut (2)
shown in the setup position.
3. Place the strut (2) in the shipping position and install the
pins and safety pins (1).
4. Rotate the cab to the shipping position.
5. Place the pin and safety pin (1) through the operator cab
support lug (5) to secure the cab in the shipping position.

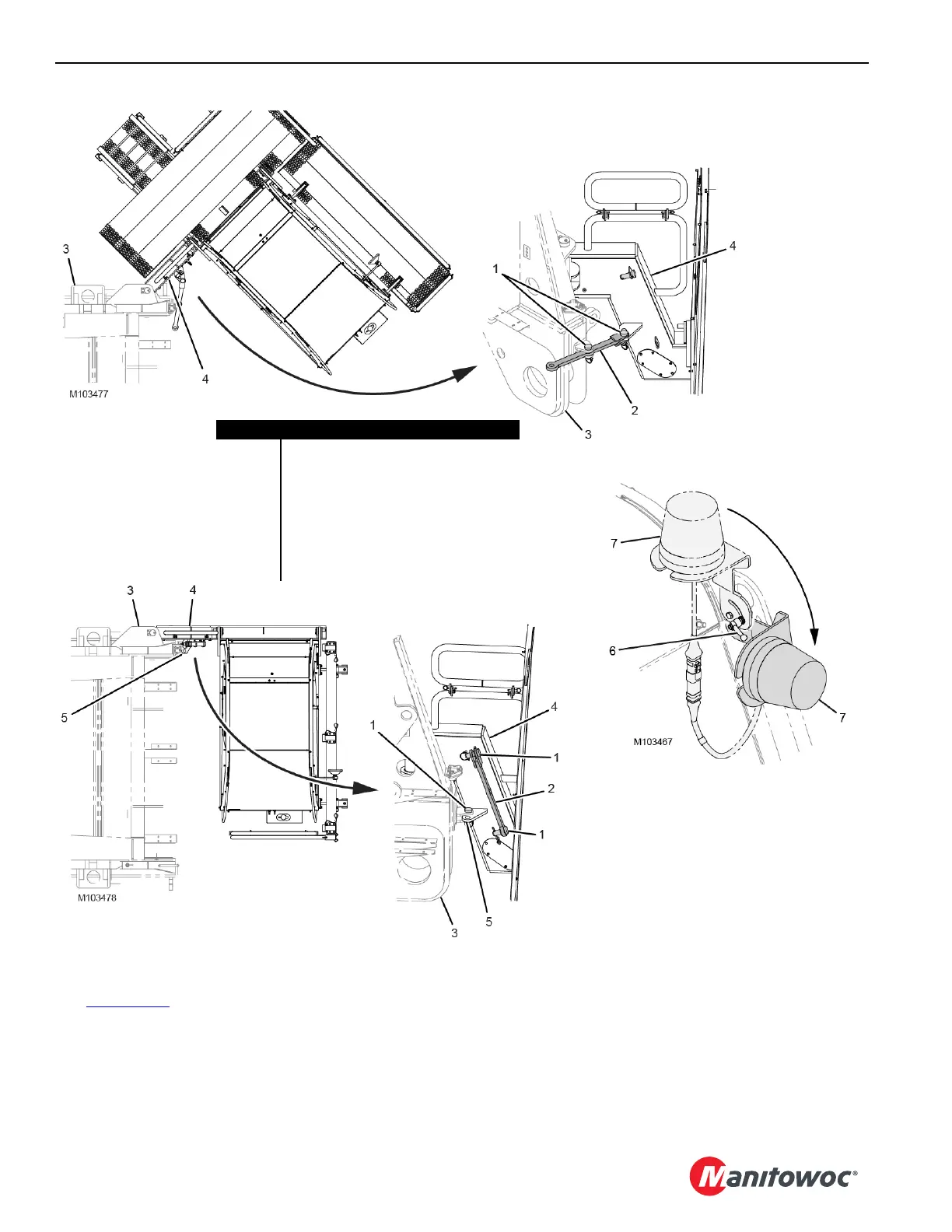

FIGURE 4-152
SETUP POSITION
SHIPPING POSITION
Item Description
1 Pins and Hair-Pin Cotter (qty 3)
2Strut
3 Rotating Bed
4 Operator Cab Support Bracket
5 Operator Cab Support Lug
6 Clamp Handle
7RCL Light
