SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-68
Published 08-12-19, Control # 224-13_v2
Installing Carbody Cavity Platform

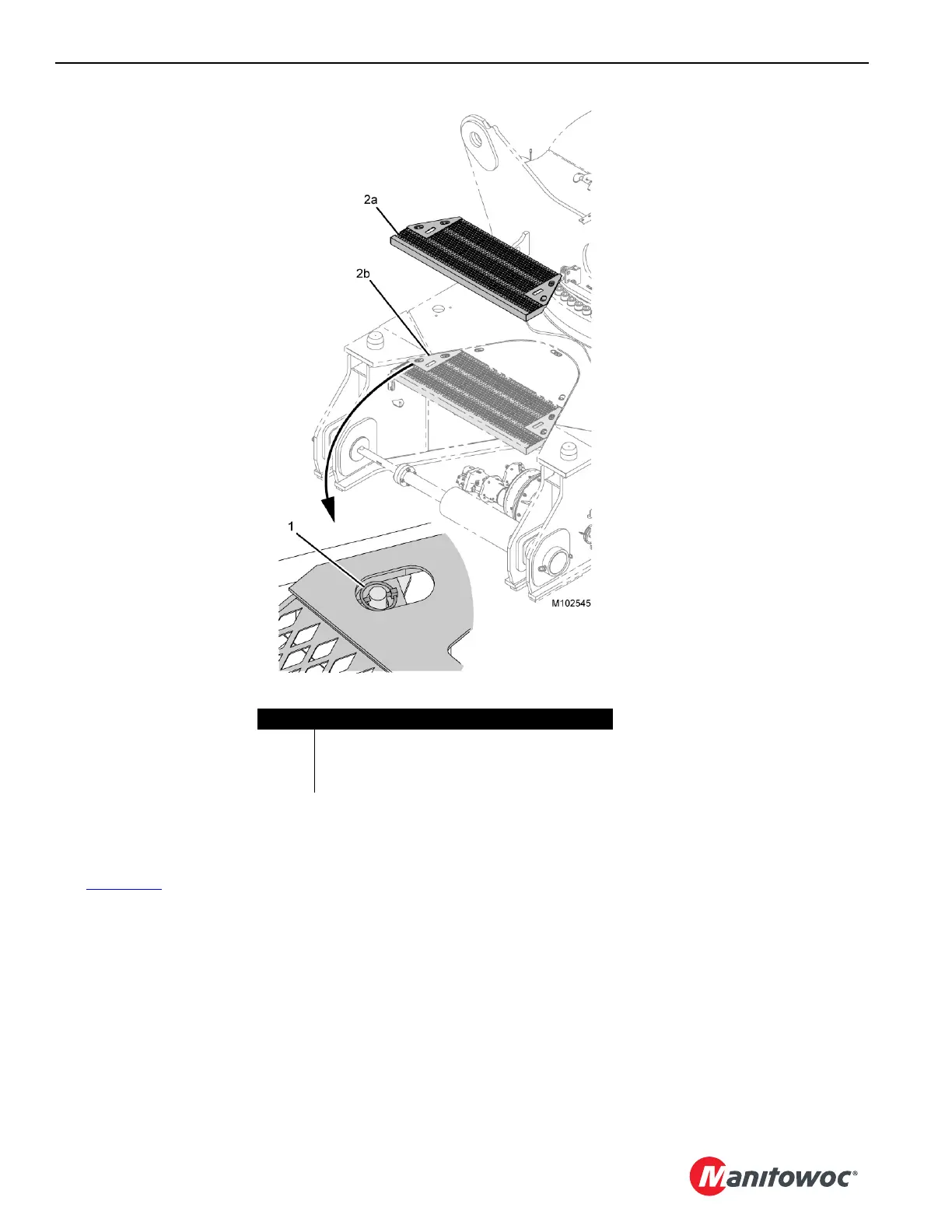

See Figure 4-56 for the following procedure:
1. Lower the carbody cavity platforms (2a) on the carbody
lugs using the hand holes in the platform.
2. Slide the quick release pins (1) through the lugs to
secure.
Item Description
1 Quick Release Pin (qty 4)
2a Carbody Cavity Platform (removed) (qty 2)
2b Carbody Cavity Platform (working position) (qty 2)
FIGURE 4-56
