Manitowoc MLC650 User Manual

Manitowoc Published 08-12-19, Control # 224-13_v2 4-171
MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
4
Storing Carbody Jacking Cylinders
See Figure 4-131 for the following procedure:
1. Using the remote control, retract the carbody jacking
cylinders (1) completely.
2. Place the outrigger pads (2) from the carbody jacking
cylinders in the shipping position in the carbody cavity
and attach the S hook straps (4).
3. Remove the safety pins and pins (5) from the strut (6) in
the working position.
4. Secure the strut with safety pins and pins to the carbody
jack in the shipping position.
5. Rotate the carbody jack assembly to the shipping
position.
6. Install the safety pins and pins (5) through the carbody
lug (7) and the jack lug (8) to secure.
Installing Carbody Cavity Platforms

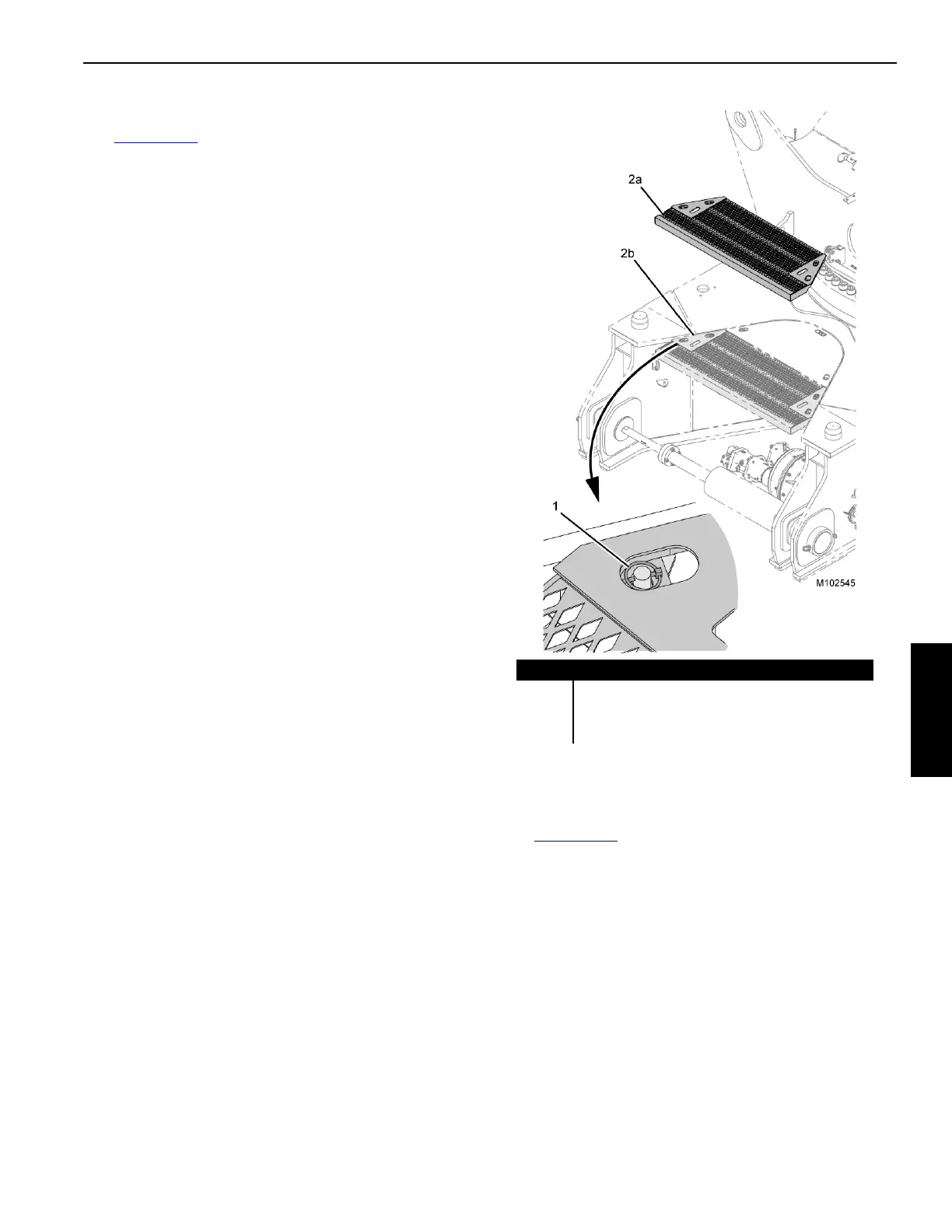

See Figure 4-132 for the following procedure:
1. Lower the carbody cavity platforms (2a) on the carbody
lugs using the handholes in the platform.
2. Slide the quick release pins (1) through the lugs to
secure.
Item Description
1 Quick Release Pin (qty 4)
2a Carbody Cavity Platform (removed) (qty 2)
2b Carbody Cavity Platform (working position) (qty 2)
FIGURE 4-132
