Manitowoc MLC650 - Page 306

SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-170
Published 08-12-19, Control # 224-13_v2

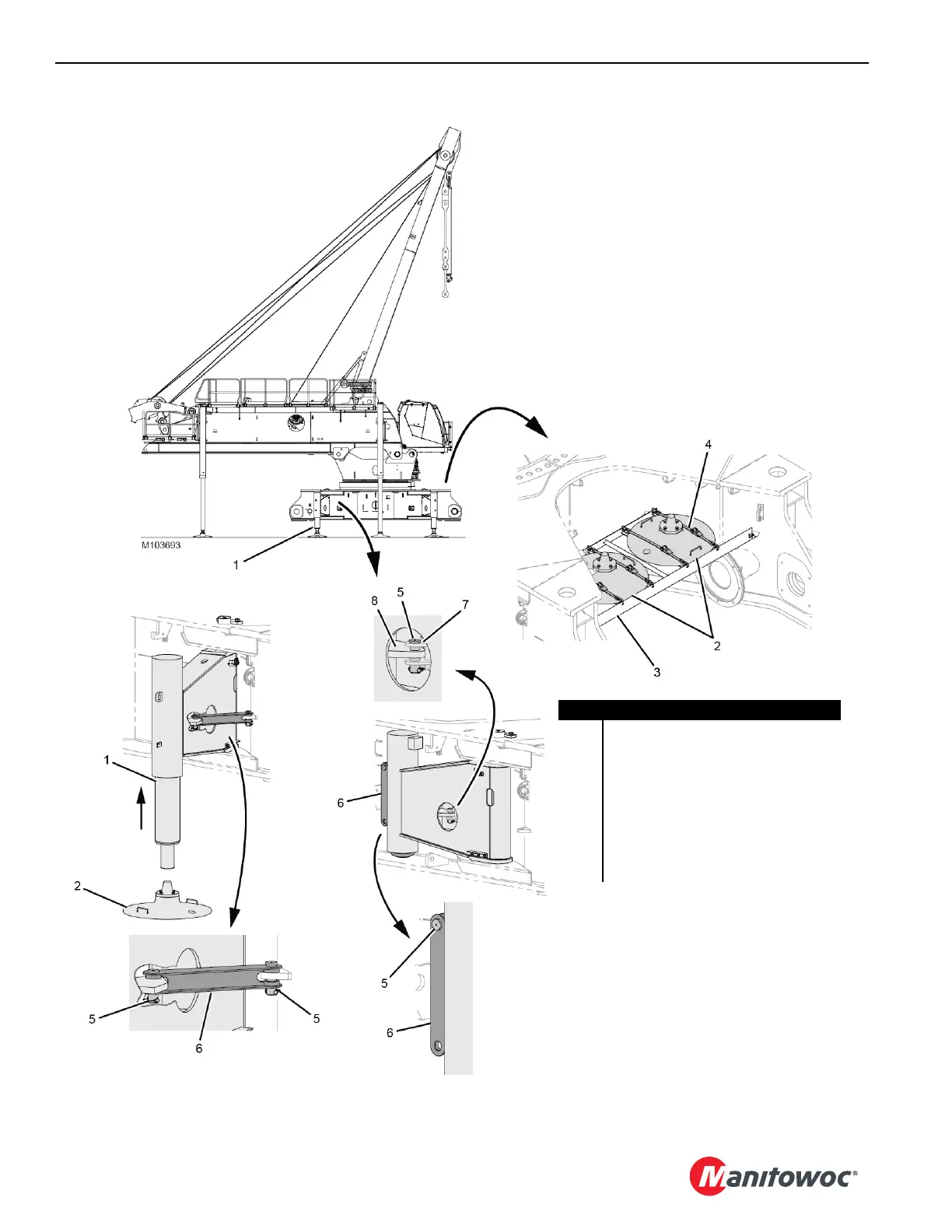

FIGURE 4-131
Item Description
1 Carbody Jacking Cylinders (qty 4)
2 Outrigger Pad (qty 4)
3 Carbody Cavity (qty 4)
4 S Hook Strap (qty 4)
5 Safety Pin and Pin (qty 4)
6 Strut (qty 4)
7 Carbody Lug (qty 4)
8 Jack Lug (qty 4)
SHIPPING POSITION
WORKING POSITION
