SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-148
Published 08-12-19, Control # 224-13_v2
Loading Boom Butt

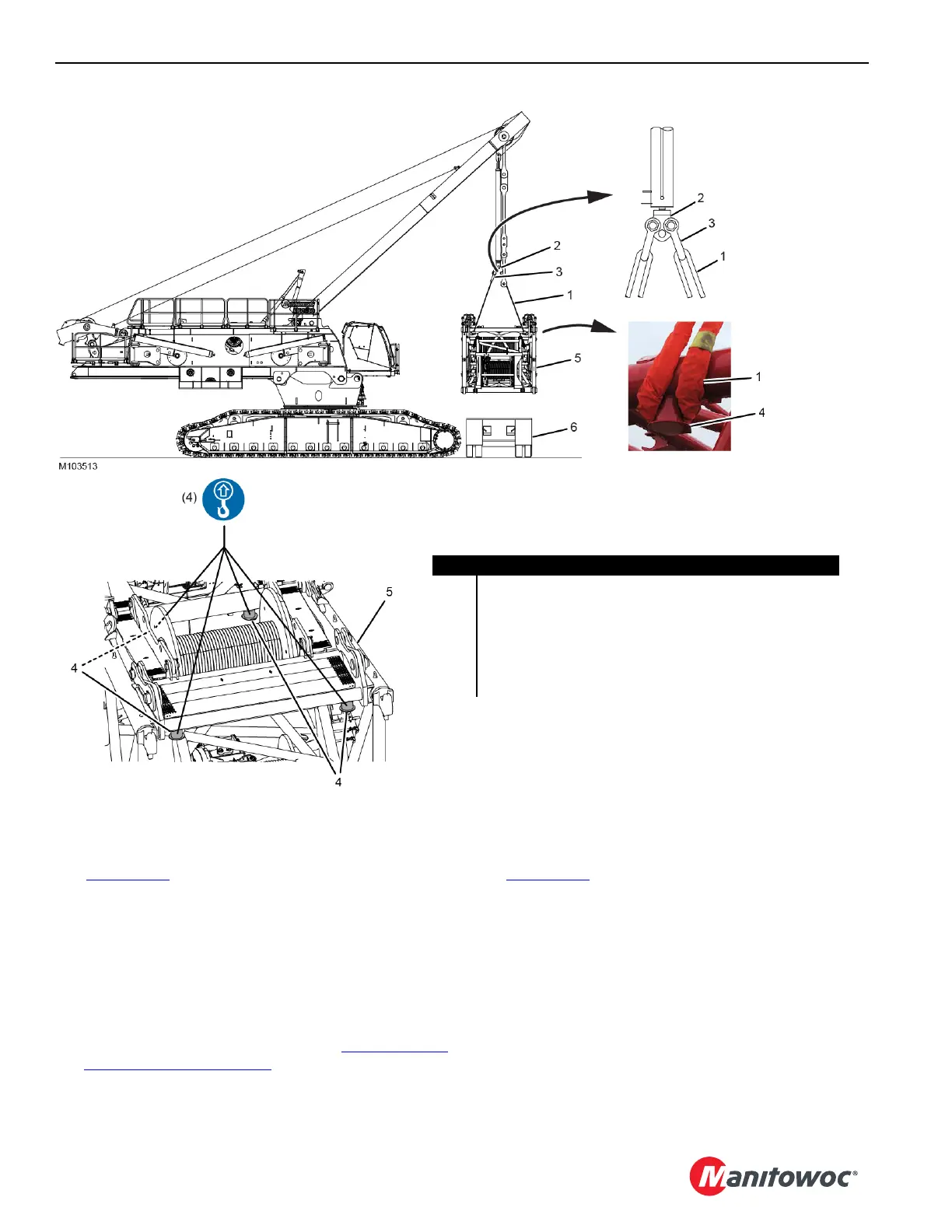

See Figure 4-115 for the following procedure:
1. Rig four
SL 4 slings (1) from the self-erect cylinder rod
end (2) using
SH 1 shackles (3).
2. Attach slings to the lifting lugs (4) on the boom butt (5).
3. Raise the boom butt and place it on the trailer (6).
4. Disconnect the four nylon lifting slings from the four
lifting lugs on the boom butt.
5. Secure the boom butt to the trailer (see "Shipping Crane
Components" on page 4-137).
Raising Carbody Platform
See Figure 4-116 for the following procedure:
1. Using an assist crane and slings or a forklift, slightly
raise the platform to relieve pressure from the hitch pins
(3) and remove them.
2. Raise the carbody platform until upper holes in the strut
(2) align.
3. Insert hitch pin (3).
4. Insert the hitch pin with hair-pin cotter (4).
Item Description
1 SL 4 Sling – 3,80 m (12.50 ft), 11 340 kg (25,000 lb) (qty 4)
2 Rod End
3 SH 1 Shackle – 55 t (60.60 USt) (qty 2)
4 Lifting Lug (qty 4)
5Boom Butt
6Trailer
FIGURE 4-115
