MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
4
Extending Rotating Bed Jacking Cylinders
See Figure 4-153 for the following procedure:
1. Align the trailer (2) with the rotating bed (3).
2. Using the remote control, extend the rotating bed jacking
cylinders (1) until the rotating bed clears the trailer.
3. Slowly back the trailer under the rotating bed until the
beam on the rotating bed is close to the drop deck of the
trailer.

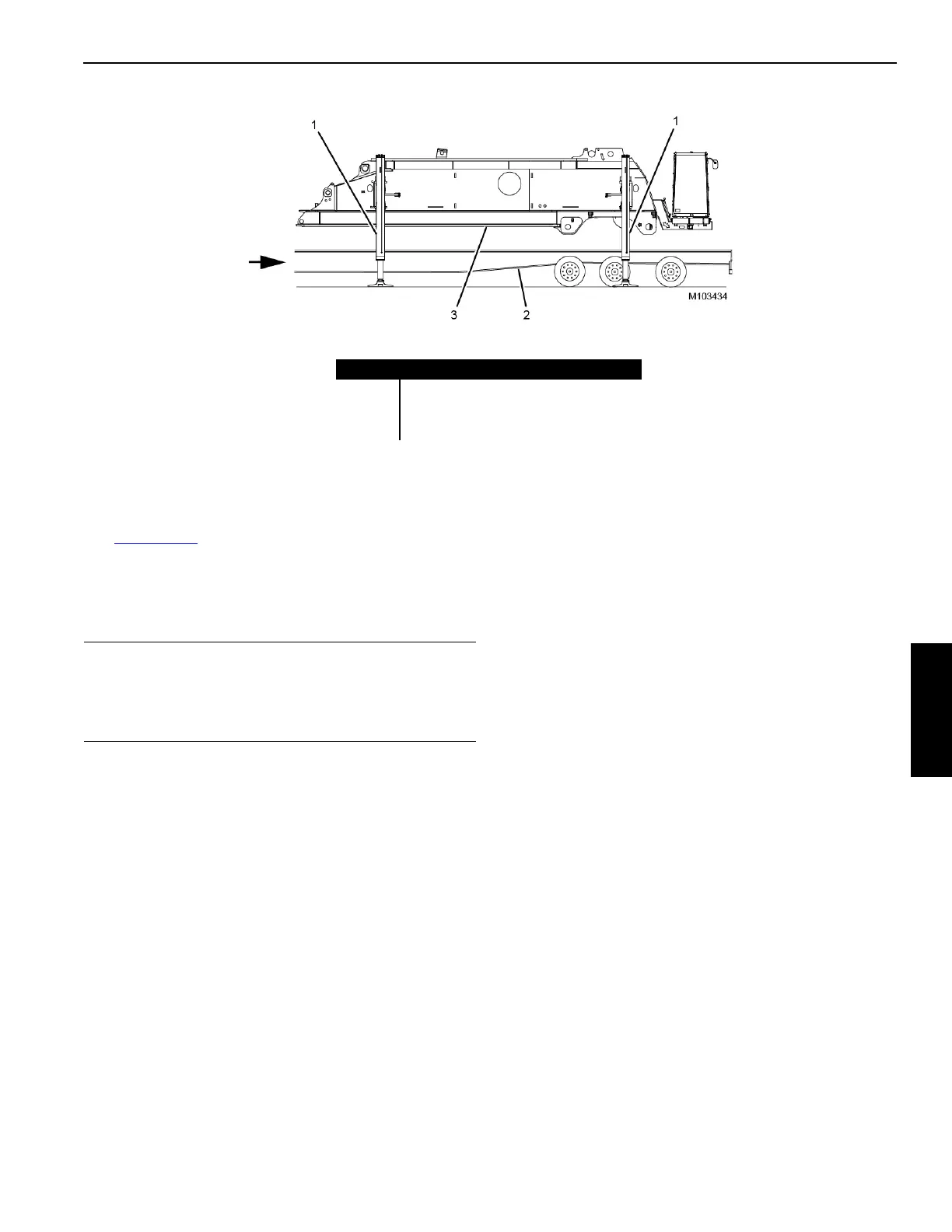

FIGURE 4-153
Item Description
1 Rotating Bed Jacking Cylinder (qty 4)
2Trailer
3 Rotating Bed
CAUTION
Equipment Damage!
Use extreme care when backing the trailer into position.
Do not hit the rotating bed jacks with the trailer.
