SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-172
Published 08-12-19, Control # 224-13_v2

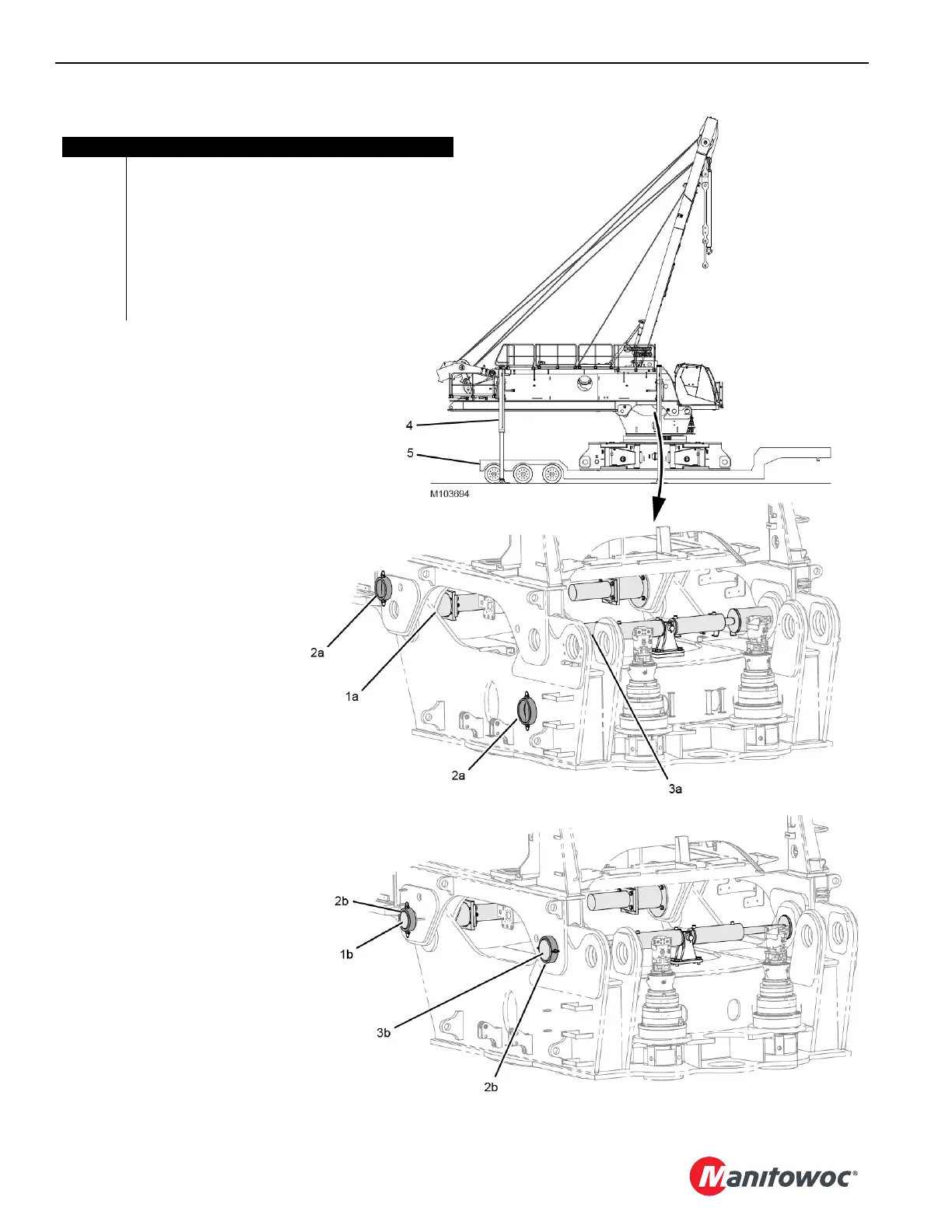

FIGURE 4-133
Item Description
1a Adapter Frame Pin (stored position) (qty 2)
1b Adapter Frame Pin (working position) (qty 2)
2a Collar (stored position) (qty 2)
2b Collar (working position) (qty 2)
3a Adapter Frame Pin (stored position) (qty 2)
3b Adapter Frame Pin (working position) (qty 2)
4 Rotating Bed Jacking Cylinder (qty 4)
5
Maximum Trailer Height –1168 mm (46 in)
STORED POSITION
WORKING POSITION
