MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
4

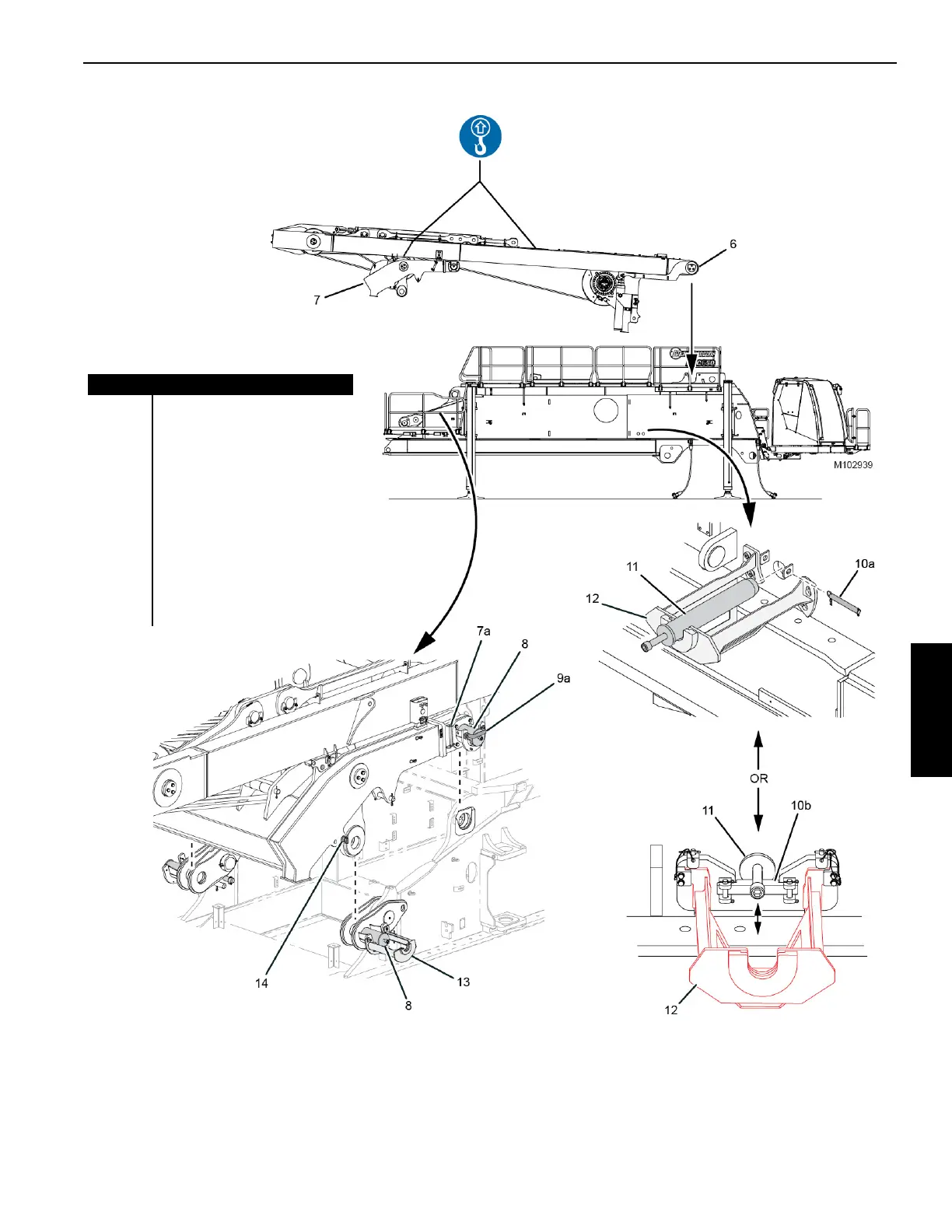

FIGURE 4-32
Item Description
1-5 Not Used
6 Live Mast Hinge
7a Keeper Pin (stored position)
8 Backhitch/Gantry Operating Pins
9a Gantry Pin Retention Bracket
10a Keeper Pin
10b Keeper Plate
11 Hoist Drum Operating Pin
12 Pin Puller Cage
13 Pin Puller Cage
14 Backhitch Link Pin
