SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-44
Published 08-12-19, Control # 224-13_v2

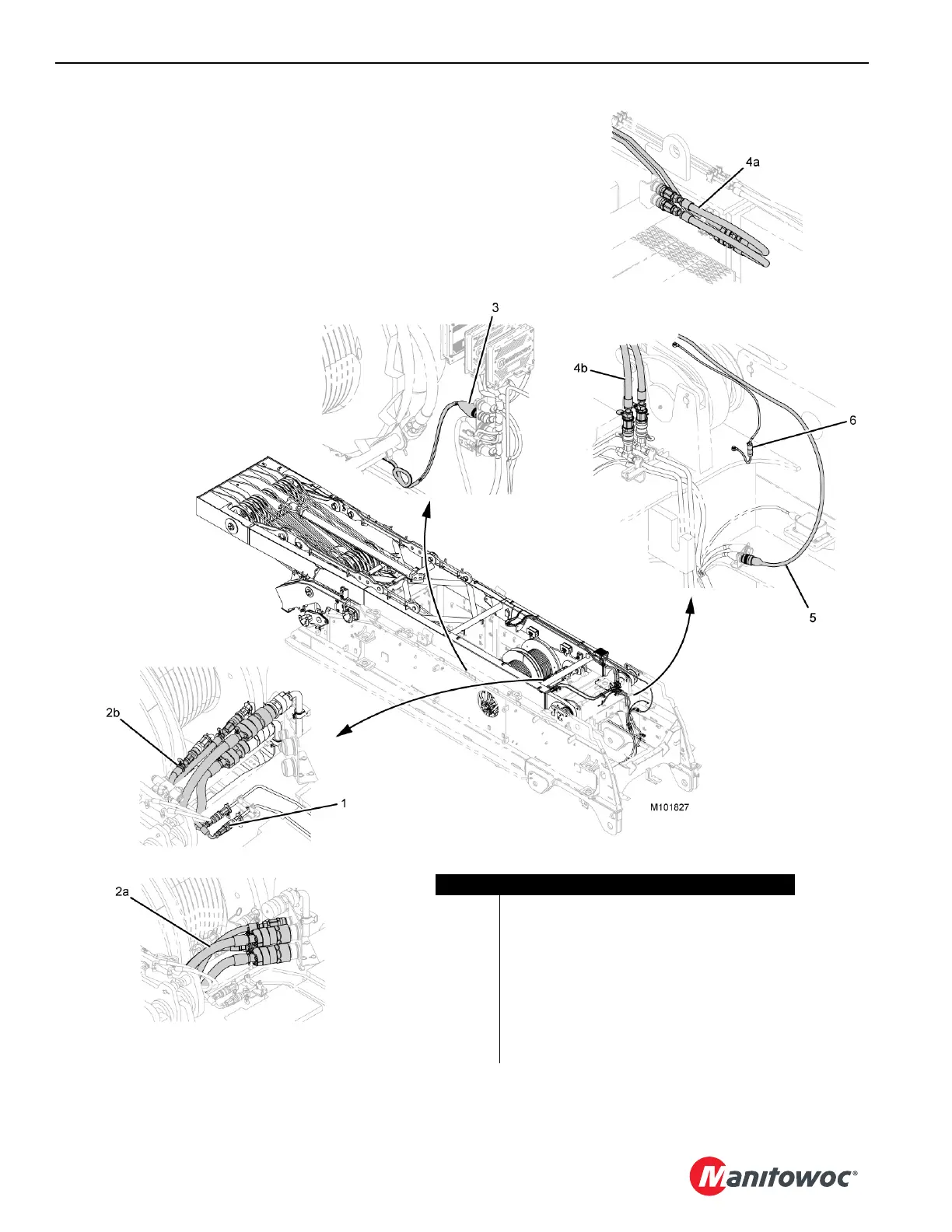

FIGURE 4-36
Item Description
1 Drum 4 Pawl Hydraulic Connections (qty 2)
2a Drum 4 Hydraulic Connections (qty 4) Stored
2b Drum 4 Hydraulic Hoses (qty 4) Working
3 Drum 4 Electrical Connection
4a Live Mast Hydraulic Connections (qty 2) Stored
4b Live Mast Hydraulic Connections (qty 2)Working
5 Live Mast Electrical Connection (WRM-P1)
6 Live Mast Grounding Wire
