SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-48
Published 08-12-19, Control # 224-13_v2

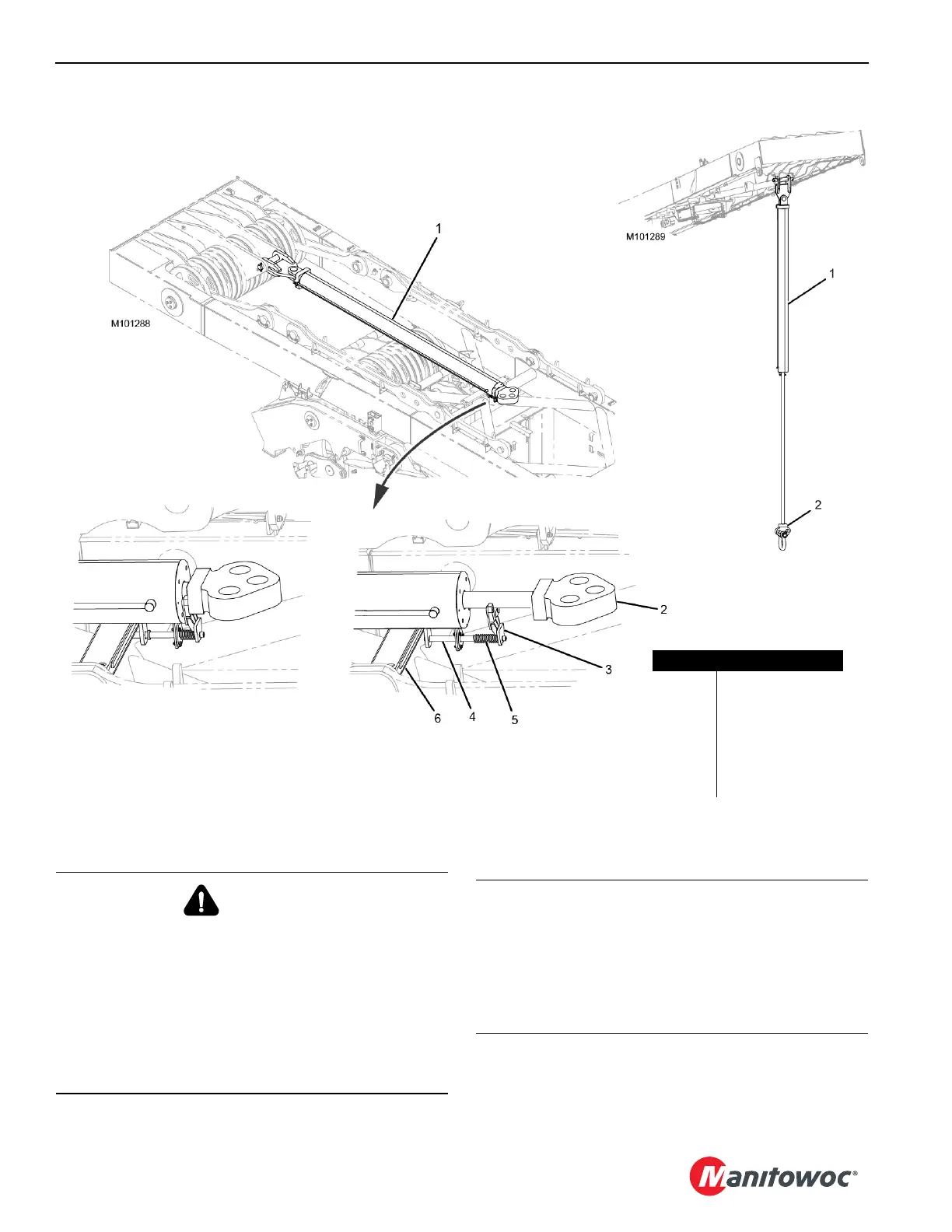

FIGURE 4-39
WORKING POSITIONSTORED POSITION
Item Description
1 Self-Erect Cylinder
2 Rod End
3 Bracket
4Pin
5Spring
6 Retention Bracket
WARNING
Falling Mast Hazard!
Prevent the mast from falling over backwards or forward:
• Read and thoroughly understand the mast raising
instructions.
• Select the Liftcrane Mast Handling Capacities Chart
in the RCL/RCI display before raising mast and using
it as a boom. Mast operating limits remain off until this
step is performed.
CAUTION
Mast Damage!
Make sure mast angle indicator is properly installed and
adjusted prior to raising the mast (see Section 4 of
MLC650 Service Manual).
The mast can be damaged if the angle indicator is not
properly installed or adjusted.
