SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-50
Published 08-12-19, Control # 224-13_v2

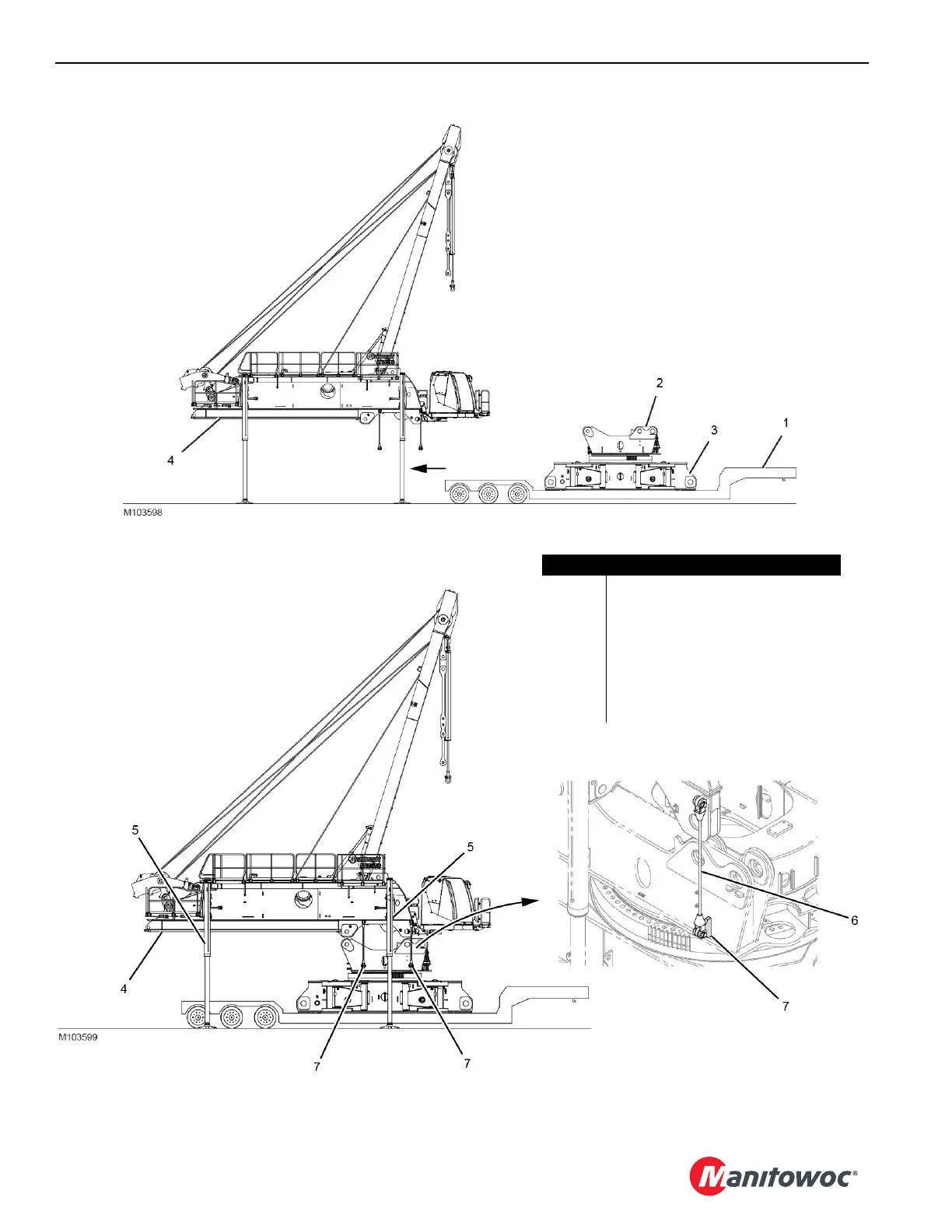

FIGURE 4-40
Item Description
1 Trailer
2 Adapter Frame
3 Carbody
4 Rotating Bed
5 Rotating Bed Jacking Cylinder (qty 4)
6 Alignment Pendant (qty 4)
7 Alignment Pendant Lug (qty 8)
VIEW A
VIEW B
