SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-52
Published 08-12-19, Control # 224-13_v2

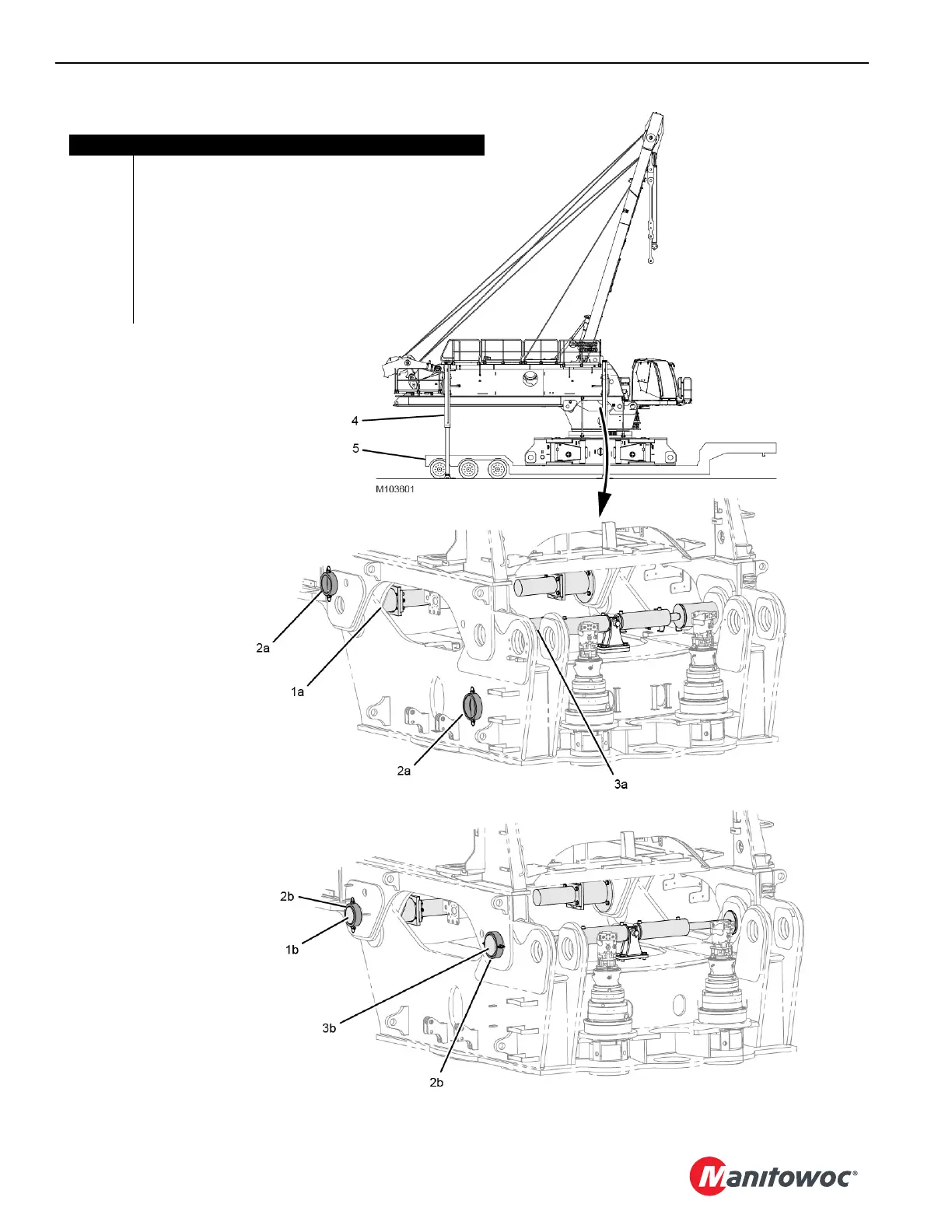

FIGURE 4-42
STORED POSITION
WORKING POSITION
Item Description
1a Rotating Bed Pin (stored position) (qty 2)
1b Rotating Bed Pin (working position) (qty 2)
2a Collar (stored position) (qty 4)
2b Collar (working position) (qty 4)
3a Adapter Frame Pin (stored position) (qty 2)
3b Adapter Frame Pin (working position) (qty 2)
4 Rotating Bed Jacking Cylinders (qty 4)
5Trailer
