SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-112
Published 08-12-19, Control # 224-13_v2

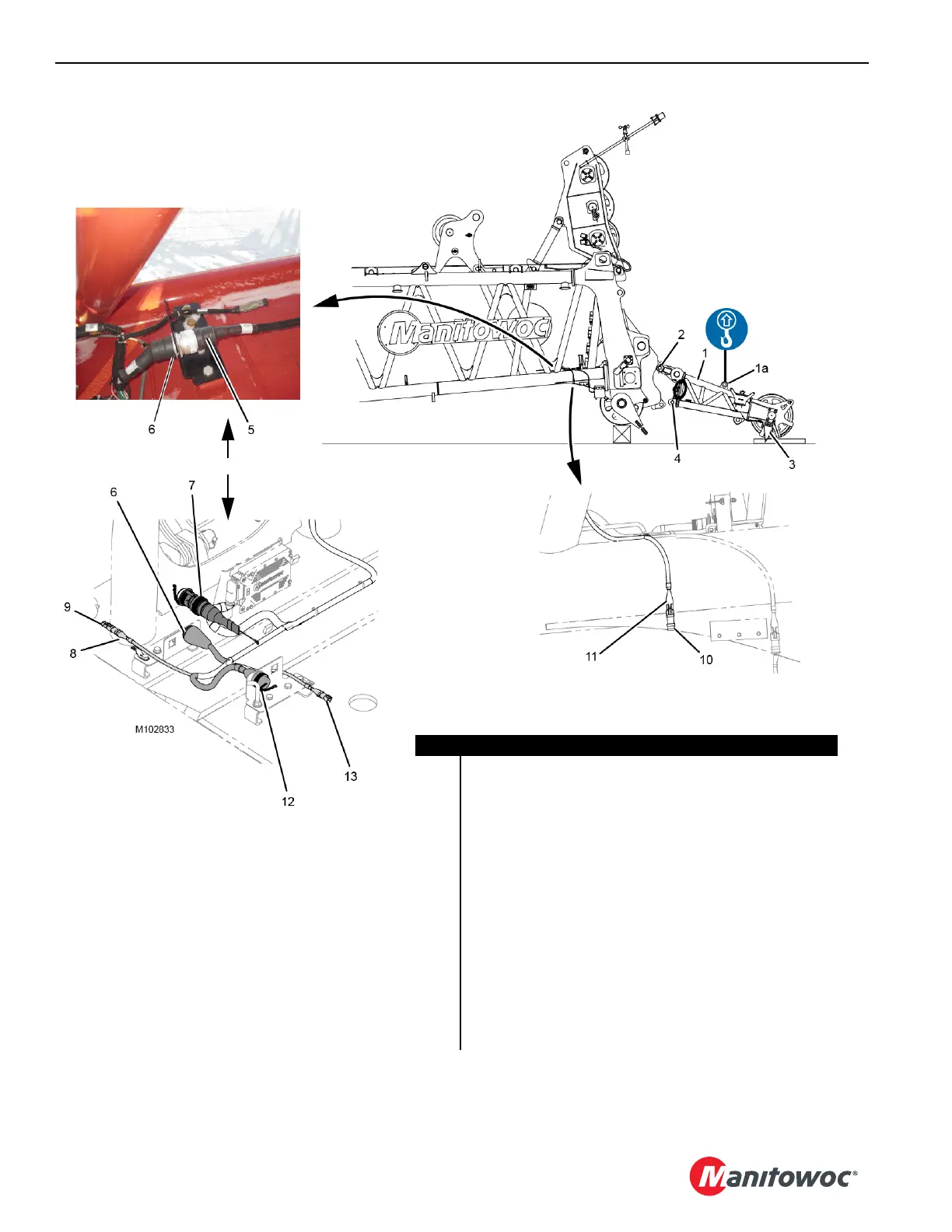

Item Description
1 Upper Boom Point
1a Lifting Lug (if equipped)
2 Pins with Safety Pins (qty 2)
3 Anti-Two Block Lug
4 Pins with Safety Pins (qty 2)
5 Electric Cable (WBU1-P1 connects to WBT1-J2)
6 Receptacle (WBT1-J2 - ATTACHMENTS)
7 Shorting Plug
8 Electric Cable (WBT1-J6 - CAN NET OUT)
9 Terminator Plug
10 Shorting Plug
11 Electric Cable - SLOW DOWN (Option)
12 Electric Cable (WBT1 -J1 - POWER from Boom Cable Reel)
13 Electric Cable (WBT1-J5 - CAN NET IN from Boom Cable Reel)
FIGURE 4-85
View B
View A
OR
